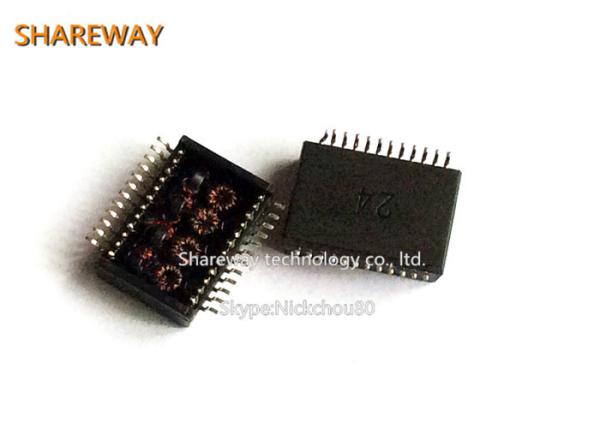

HM1225NL Ethernet Magnetic Transformers 8+8 Pins Ethernet NON PoE 100BASE-T
HM1225NL Ethernet Magnetic Transformers 8+8 Pins Ethernet NON PoE 100BASE-T
Specifications
Brand Name :
Shareway
Model Number :
HM1225NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
5000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Reel ,Tube
Pin :
16
Speed :
10/100Base-T
Core No :
2
Port :
2
Sample :
free
Product name :
HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric
Description

HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric

Description:

1. Compliant with IEEE 802.3u
2. 350µH OCL with 8mA bias, MSL: 3
3. IC grade transfer-molded package withstands
4. 235°C peak temperature profile. RoHS version withstands 245°C
5. AS9100C Certified (Based on and including ISO 9001:2008)

Electrical Specifications @ 25°C


Isolation Voltage: 1,500Vrms
OCL @100KHz, 8mA: 350µH min
CMR (0.1-100MHz): -40dB typ
Crosstalk (0.1-100MHz): -40dB min
Insertion Loss (0.1-100MHz) -1.1dB max
Return Loss (0.5-30MHz): -18dB min
(40MHz): -15.5dB min
(50MHz): -13.6dB min
(60-80MHz): -12dB min

HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric

Shape and Dimensions:

HM1225NL Ethernet Magnetic Transformers 8+8 Pins Ethernet NON PoE 100BASE-T
