Straight RJ45 Modular Jack JD3-0001NL 1000Base - T 1 X 1 Single Port
Straight RJ45 Modular Jack JD3-0001NL 1000Base - T 1 X 1 Single Port
Specifications
Brand Name :
Shareway
Model Number :
JD3-0001NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Tray, Tape or Reel
Product name :
1000Base-T 1*1 Single Port Straight RJ45 Modular Jack JD3-0001NL
Port :
Single port
Type :
Thru-hole RJ45 Jack
Isolation :
2250VDC
Size :
23.15*16.1*16.87mm
Pin :
10P8C
Description

1000Base-T 1*1 Single Port Straight RJ45 Modular Jack JD3-0001NL

RJ45 connector Detailed description:
1.VOLTAGE RATING:125 VAC RMS

2.CURRENT RATING:1.5 AMP

3.CONTACT RESISTANCE:30 MILLIOHMSMAX

4.INSULATION RESISTANCE:500 MEGOHMS MIN@500 NDC

5.DIELECTRIC STRENGTH:1000 VAC RMS 50Hz or 60Hz,1min.

MECHANICAL:

1.HOUSING&INSERT MATERIAL:PBT UL94V-0

2.CONTACT MATERIAL :DIAMETER0.45MM PHOSPHOR BRONZE GOLD PLATING OVER NICKEL.

3.SHIELD:0.20¬0.25MM, THICKNESS BRASS WITH NI PLATED.

4.MATING/UNMATING FORCE:2.2KG.F MAX

1000Base-T 1*1 Single Port Straight RJ45 Modular Jack JD3-0001NL

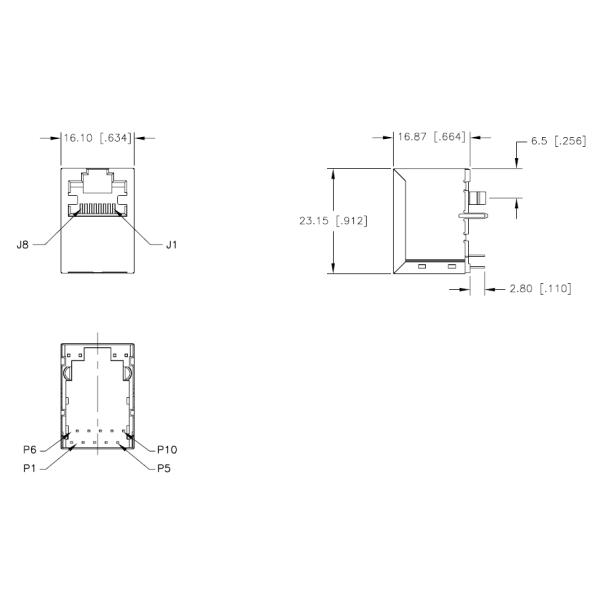

Shape and Dimensions:

Straight RJ45 Modular Jack JD3-0001NL 1000Base - T 1 X 1 Single Port
