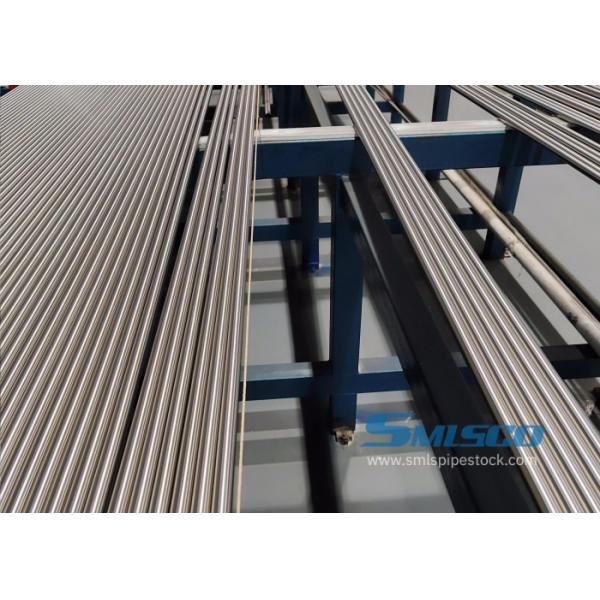

1.4307 Stainless Steel Seamless Instrument Tube SMLS Tube Factory

Single Process Introduction

To meet the stringent requirements for appearance and corrosion resistance in instrumentation tubing, SMLSCO employs an advanced bright annealing process. The tubing undergoes heat treatment within a sealed, protective gas furnace. This prevents the formation of surface scale, imparting a natural, silver-bright metallic lustre that eliminates the need for pickling. This process significantly reduces fluid resistance and residual risks while eliminating work hardening. It ensures the tubes possess excellent bending and flaring properties, facilitating on-site installation.

Product Advantages

·Precision Tolerances, Universal Compatibility: Manufactured via cold rolling, the tubes feature strictly controlled outer diameter and wall thickness tolerances. They exhibit outstanding roundness and dimensional consistency, guaranteeing no gas or liquid leakage in demanding high-pressure transmission systems.

·Rapid stock availability and responsive service: SMLSCO maintains over 200 tonnes of bright annealed and polished instrumentation tubing in stock, covering common specifications from 6mm to 50.8mm. We commit to sorting and dispatching standard stock orders within two weeks, enabling swift response to urgent projects.

·High Purity, Oil-Free Delivery: All tubing undergoes ultrasonic cleaning and passivation to ensure dry, oil-free inner walls, complemented by 100% eddy current testing. Products are ready for immediate use in hydraulic systems upon delivery, eliminating the need for secondary cleaning by customers.

Packaging Methods

Stainless steel gauge tubing features thin walls and a bright surface finish, making it susceptible to scratches during transit. To address this, SMLSCO implements stringent export-grade packaging standards. Following final inspection, each tube is individually bagged with end caps fitted to protect threaded or beveled ends. Tubes are then securely stowed within reinforced wooden crates, ensuring they arrive at your warehouse pristine and fully functional despite extended sea voyages and multiple transhipments.

FAQ

Q1: What is the hardness of this seamless tube? Is it suitable for bending and flaring?

A1: Absolutely suitable. SMLSCO's instrumentation tubing undergoes rigorous bright annealing, with hardness controlled below HRB 90 (or HV 200). This controlled soft state facilitates cold bending and flaring operations on-site without cracking, while ensuring perfect engagement with standard double ferrule fittings for zero-leak sealing under high pressure.

Q2: What distinguishes Bright Annealed (BA) from Acid Pickled (AP) surfaces? Which should I select?

A2: BA (Bright Annealed) features a highly lustrous surface with an exceptionally smooth inner wall, free from pickling residues. It is the preferred choice for instrumentation tubing and high-purity systems. AP (Pickled) surfaces exhibit a matt silver-white finish, better suited for general fluid conveyance. For precision instrumentation tubing inventory, we strongly recommend selecting the bright surface finish.

Q4: As a stockist, may I purchase mixed specifications? Or must orders be placed in full bundles?

A4: We fully accommodate stockists' procurement models. Leveraging SMLSCO's extensive stock warehouse, you need not purchase entire bundles of a single specification. We support ‘mixed-length consolidated shipments’, enabling you to combine multiple O.D. and wall thicknesses of instrumentation tubing, or even bundle fittings for dispatch. This maximises flexibility and minimises procurement barriers.
