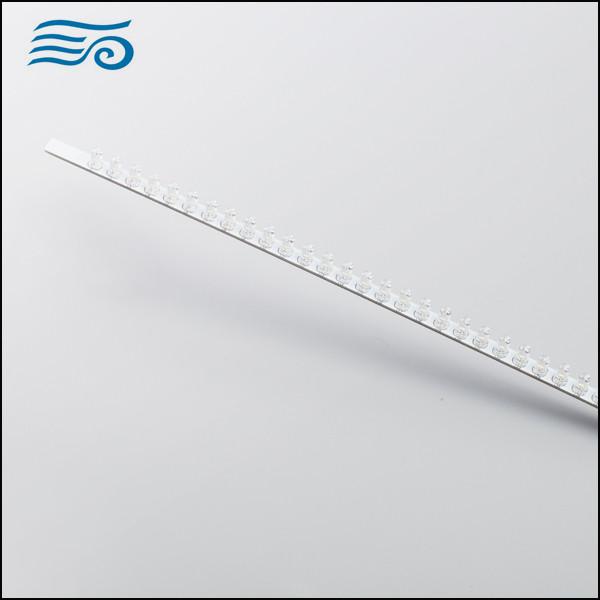

600*24MM 16W 1840LM Linear LED Module For Architectural Lighting
600*24MM 16W 1840LM Linear LED Module For Architectural Lighting
600*24MM 16W 1840LM Linear LED Module For Architectural Lighting
600*24MM 16W 1840LM Linear LED Module For Architectural Lighting
Specifications
Brand Name :
Relight
Model Number :
RL-VM600x24A0706H016-840
Certification :
CE&RoHS
Place of Origin :
Shenzhen,China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
About 10 business days
Packaging Details :
Custom packing design or standard antistatic package in carton
Product Name :
LED Linear DC Module
Material :
Aluminum
Size :
600*24MM
Power :
16W
Voltage :
24V
Current :
680mA
CCT :
2700-6000K
CRI :
80
Efficiency :
115LM/W
Flux :
1840LM
Description

Smart design 16w LED linear DC module for Panel light

600*24MM 16W 1840LM LED Linear DC Module For Architectural Lighting

LED linear DC module Specification:

P/N Size Voltage -Vdc Current -mA Power -W Flux Efficiency CCT CRI
mm Typ Max Typ Max Typ Max Lm Lm/W K -
RL-CM280x24A1203H007-840 280*24 34.8 39.6 200 450 7 18 1180 170 4000 80
RL-CM280x24A0409H007-840 280*24 11.6 13.2 600 1350 7 18 1180 170 4000 80
RL-CM560x24A1206H014-840 560*24 34.8 39.6 400 900 14 36 2360 170 4000 80
RL-CM560x24A0809H014-840 560*24 23.2 26.4 600 1350 14 36 2360 170 4000 80
RL-VM600x24A0706H008-840 600*24 24 - 340 - 8 - 1000 125 4000 80
RL-VM600x24A0706H016-840 600*24 24 - 680 - 16 - 1840 115 4000 80

LED linear DC module show:


600*24MM 16W 1840LM Linear LED Module For Architectural Lighting

LED linear DC module Application:

1. Ceiling lights

2. Advertisement light-box

3. Commercial luminaires

4. Channel lights

5. Troffer lamps
6. Architectural lighting
7. Decorative lighting

8. Panel lights

9. Down lights

10. Highbay/lowbay / flood/ceiling lights

600*24MM 16W 1840LM Linear LED Module For Architectural Lighting

600*24MM 16W 1840LM Linear LED Module For Architectural Lighting

Competitive Advantage:

  • Customized design

  • LED component analyze, engineering file service

  • Ultra samples preparation

  • After-sales service

Our Service:

  • We will reply for you within 24hours once we get your inquiry.
  • Design and produce almost any LED pcb as your requirement.
  • We can offer you unique design and some our current models.
  • 100%testing guarrantees stable quality, ISO 9001:2000 ,UL, CE&RoHS certification.

Quotation Requirement :

  • led pcb's size;
  • led pcb's model;
  • led lights' quantity;
  • led pcb's quantity.
Factory&Exhibitons
600*24MM 16W 1840LM Linear LED Module For Architectural Lighting
600*24MM 16W 1840LM Linear LED Module For Architectural Lighting600*24MM 16W 1840LM Linear LED Module For Architectural Lighting600*24MM 16W 1840LM Linear LED Module For Architectural Lighting600*24MM 16W 1840LM Linear LED Module For Architectural Lighting600*24MM 16W 1840LM Linear LED Module For Architectural Lighting600*24MM 16W 1840LM Linear LED Module For Architectural Lighting600*24MM 16W 1840LM Linear LED Module For Architectural Lighting

Why us Relight?

High Quality

Our CE/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, Relight will adhere to the highest quality standards.

------------------------------------------------------------------------------

Super Capable

Relight offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

------------------------------------------------------------------------------

Many years' Experience

When it comes to your build you want a partner you can depend on. Our management team has over 8 years of combined industry knowledge. Our engineering team has over 10years experience.

--------------------------------------------------------------------------------

Customer First

Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.

----------------------------------------------------------------------------

Proffesioal Engineer

We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.
