HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037
Specifications
Brand Name :
Dehao
Model Number :
P5
Certification :
CE ROHS FCC UL
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-15 working days after deposit
Packaging Details :
Standard wooden case or flight case packing as customer's request
MOQ :
1 square meter
Price :
Negotiation
Supply Ability :
5000 square meter per month
Pitch :
5mm
Density :
40000 dot/㎡
Module size :
320x160mm
Module resolution :
64x32 dot
LED standard :
SMD2525
Brightness :
≥5200 cd/sqm
Protection degree :
IP65
Warranty period :
2 years
Drive method :
1/8 scanning
Description

SMD2525 Full Color LED Screen P5,1/8 Scan HD Outdoor Full Color Advertising LED Display

Product Description

Application

Building wall, CBD video wall, shopping mall video wall, super market, ports, high speed way, roadside, cinema, truck, trailer, bus, large building top.

Product feature

1.Suit for strict weather conditions with IP65 rating.
2.Seamless splicing.
3.Scientific structure design and cooling system ensures the stability and reliability, even long time continuous use.
4.Quick installation and easy maintenance, front or rear maintenance available

Specification

ITEM NO:GA-OSR-P5
Module Parameter
Pixel Pitch 5mm
LED Configuration 1R1G1B
LED Type SMD2727Black
Pixel Density 40000 dot/m2
Module resolution(W×H) 64×32 dot
Module Size 320×160 mm
Cabinet Parameter
Number of module(W×H) 3×6
Cabinet Resolution(W×H) 192×192 dot
Cabinet Size 960×960×85mm
Flatness Gap ≤0.2mm
Maintain Way Rear
IP Rating IP 65
Cabinet Material Aluminium die casting/Iron
General Parameter
Driving method Constant Current ;1/8 scan
Driving IC ICN2037
Gray Scale 65536
Refresh rate ≥1920 Hz
Brightness ≥5200 cd/㎡
Color temperature 4500K< &< 9500K
View angle H:140°, V:120°
Uniformity of the luminance ≥97%
Max.Power Consumption ≤1200W/㎡
Avg.Power Consumption 600W/㎡
Input Voltage AC90~264V,47-63(Hz)
Frame Rate 60 Hz
MTBF 9000 Hours
Operating Temperature/Humididy -20ºC - 50ºC / 10%-80%RH
Certification FCC,CE,Rosh
Blind spot rate ≤0.01%
Support Input Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA
Control Distance Ethernet cable≤100m & Fiber Optic>100m

HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037

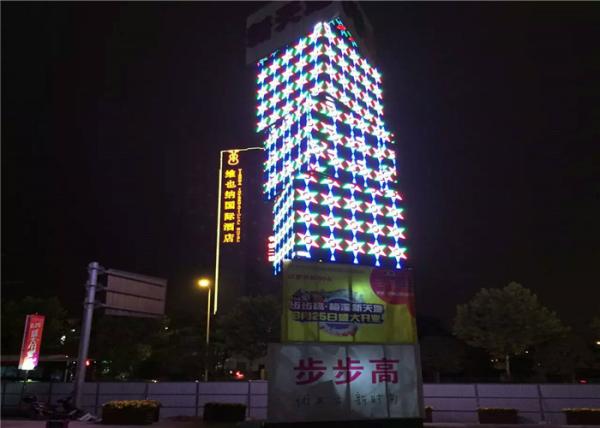

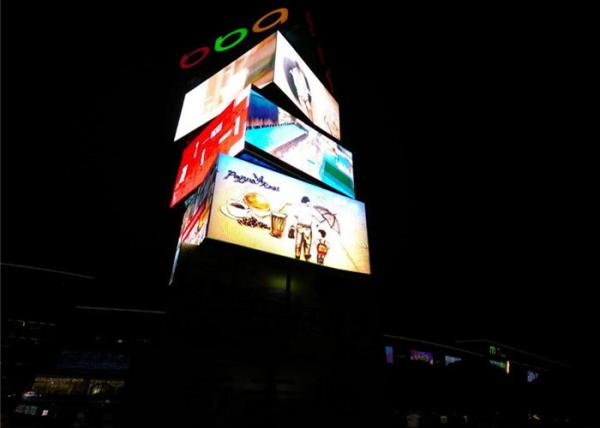

Case

HD Advertising Outdoor Full Color LED Display Kinglight SMD2525 P5 1/8 Scanning ICN2037

Remark

1.Price term:Total quotation is based on FOB Shenzhen
2.Warranty period: 2 years
3.Payment term: 30% deposit,Balance before shipping.
4.Packing method: flight case & wooden case
5.Delivery time: 7-15 working days after deposit

FAQ

1: What is the warranty of your led display?

A: We offer 2 years warranty.and more than 100000 hours screen life span

2: what is your payment term?How long it takes to delivery?

A: We usually accapt the T/T or paypal.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 7-15 working days.

3: How can you ensure the led display product quality?

A: Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.

4: What is your pre-sale and post-sale service?

A: For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.

For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
