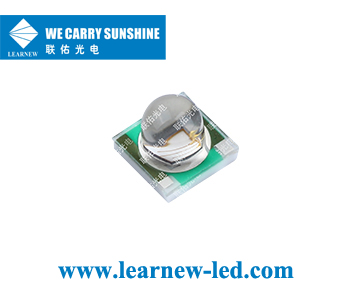

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Specifications

Place of Origin :

Guangdong, China

Brand Name :

Learnew

MOQ :

Input Voltage :

3.0-3.4V

Luminous Efficacy :

240 lm/w

Luminous Flux :

240-280LM;350-400LM

Power :

3W, 4W

Viewing Angle :

120°

Color Rendering Index :

70/80/90/95

Operating Temperature :

-20 - 100℃

Storage Temperature :

-20 - 80℃

Size :

3.5*3.5MM

Current :

700mA;1000mA

Chip Material :

INGAN

Substrate :

Ceramic

Chip Size :

R3.0MM

Optical Attenuation :

0.1%

Product Weight :

0.01kg

Description

Products Description

We accept OEM and ODM service to customized any type of LED CHIP.

POWER	1W-4W
CCT	WW=3000K PW=6000-7000K CW=8000-10000K YW=1800 - 2200K Red（620 - 630nm） Far Red（650 - 660nm） Ultra Red（680nm） Infrared Red（730 - 740nm） Green（515 - 525nm） Blue（455 - 475nm） Royal Blue（440 - 450nm） Yellow（585 - 595nm)
LUMINUOUS EFF	White color :240-280LM;350-400LM Other colors contact us for details
Current	700mA;1000mA
Voltage	3.0-3.4V/2.0-2.4V

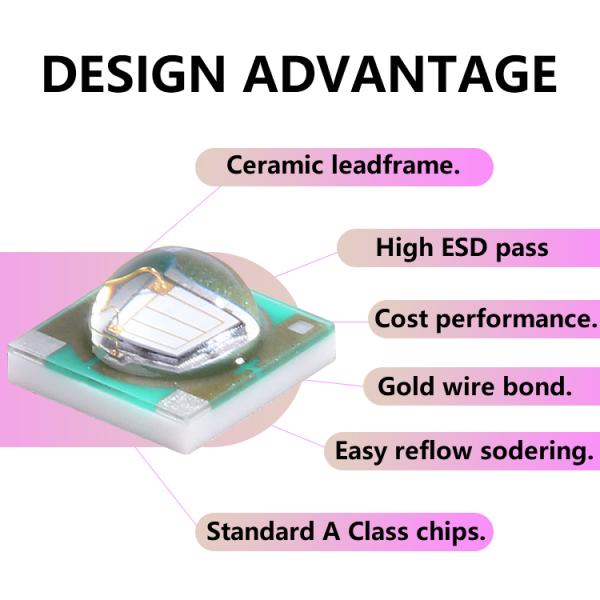

Design Advantage	1,Ceramic leadframe. 2,High ESD pass 3,Standard A Class chips. 4,Cost performance. 5,Gold wire bond. 6,Easy reflow sodering
Circuit	1S1P

Whole Size	3.5*3.5MM
LES	R3.0MM
Substrate	Ceramic
View Angle	120°
Chips	SANAN 45mil;SANAN 55mil

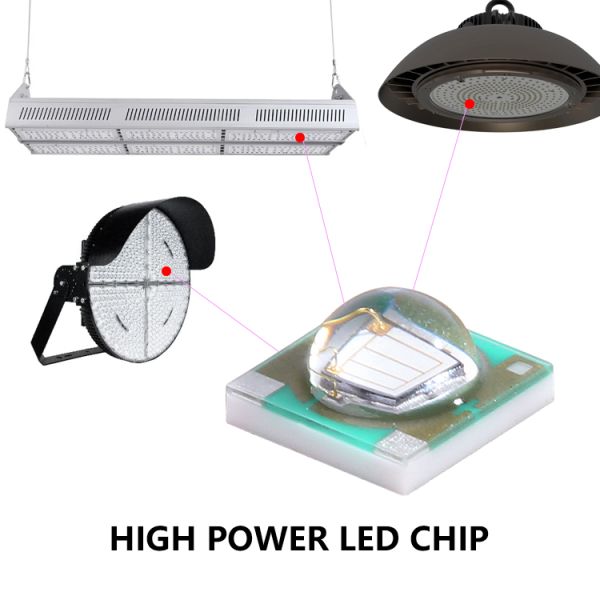

Application	1,LED grow light 2,LED torch 3,LED stage light 4,LED streetlight 5,LED Landscape lighting 6,LED spotlight
CRI	70/80/90/95

Application

1,LED grow light 2,LED torch 3,LED stage light 4,LED streetlight 5,LED Landscape lighting 6,LED spotlight

Factory introduction

CERTIFICITIONS

Company Profile

Product Packaging

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
