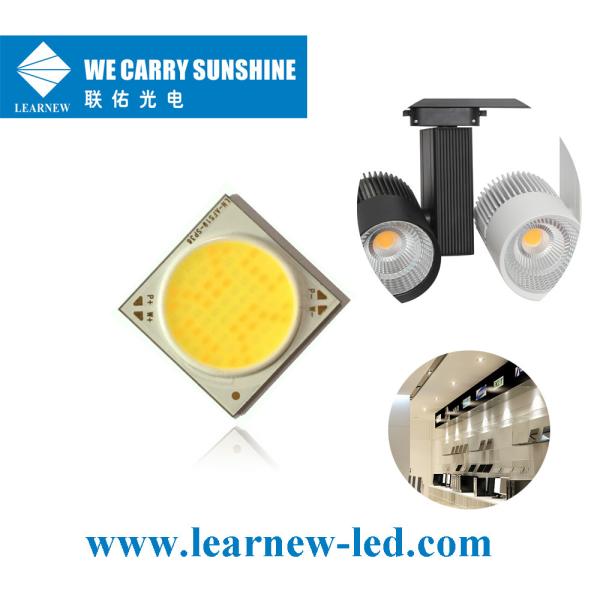

Bicolor 1919 36W 24W 12W LED COB Chip 2700-6000K 110-130lm/W 35-38V
Bicolor 1919 36W 24W 12W LED COB Chip 2700-6000K 110-130lm/W 35-38V
Bicolor 1919 36W 24W 12W LED COB Chip 2700-6000K 110-130lm/W 35-38V
Bicolor 1919 36W 24W 12W LED COB Chip 2700-6000K 110-130lm/W 35-38V
Specifications
Brand Name :
Learnew
Model Number :
LN-AFS19PWW-PS36-17/LN-AFS19PWW-PS24-17/LN-AFS19PWW-PS12-17
Certification :
CE;ROHS
Place of Origin :
China
MOQ :
5000-10000
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000PCS/Month
Delivery Time :
7-31
Packaging Details :
Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.
Part Number :
LN-AFS19PWW-PS36-17/LN-AFS19PWW-PS24-17/LN-AFS19PWW-PS12-17
Power :
12W/12W; 24W/24W; 36W/36W
CCT :
2700K-6000K
LM/W :
110-130lm/w
VF :
35-38V
Whole Size :
19x19MM
Description

Bicolor 1919 36W/36W 24W/24W 12W/12W 2700-6000K 110-130lm/w 35-38V LED COB Chip.

Model LN-AFS19PWW-PS36-17/LN-AFS19PWW-PS24-17/LN-AFS19PWW-PS12-17
Power 12W/12W; 24W/24W; 36W/36W
CCT 2700K-6000K
LM/W 110-130lm/w
IF 350mA/350mA; 600mA/600mA; 800mA/800mA
VF 35-38V
Circuit 12S3P*2
Whole Size 19x19MM
LES R17MM
View Angle 120°
CRI 80/90
Substrate Super Aluminum
Design Advantage 1. Color changeable
2. Color change evenly no glare
3. Flip chip technology
4. No double shadow
5. Low thermal resistance
6. Long life span
Application 1. LED spotlight
2. LED downlight
3. LED tracking light
4. LED focus light
5. LED bulb light

Learnew 1919 Series Bicolor LED COB Chip, whole size is 19x19MM, lens size is R17MM, and with super aluminum substrate. The power is 12W/12W, 24W/24W, 36W/36W, the view angle is 120°. The 12W/12W model current is 350mA/350mA, the 24W/24W model current is 600mA/600mA, and the 36W/36W model current is 800mA/800mA, these models voltage is 35-38V. In addition, the color temperature we can do 2700K-6000K according to your request. Of course our company also support customized services.

Bicolor 1919 36W 24W 12W LED COB Chip 2700-6000K 110-130lm/W 35-38V

Bicolor 1919 36W 24W 12W LED COB Chip 2700-6000K 110-130lm/W 35-38V
