14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate
14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate
Specifications
Brand Name :
LERANEW
Model Number :
LN-AFS14XW-P5-11/LN-AFS14XW-P7-11/LN-AFS14XW-P10-11/LN-AFS14XW-P20-11
Certification :
CE RoHS SGS
Place of Origin :
CHINA
MOQ :
5000
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200,000PCS per month
Delivery Time :
7-12 working days
Packaging Details :
Anti-static Blister packing
Color :
3000K
Size :
14*14mm
LES :
R11mm
Efficiency :
90-110LM/W
Circuit :
5S2P/7S4P/12S2P/12S4P
View angle :
120DEG
Description

14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate

2700-6500K flip chip cob led high cri 80 aluminum substrate 1414 series 5W 7W 10W 20W

Models LN-AFS14XW-P5-11 LN-AFS14XW-P7-11 LN-AFS14XW-P10-11 LN-AFS14XW-P20-11
Electronic power 5W 7W 10W 20W
Color temperature

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K
Luminous efficiency 90-110LM/W 90-110LM/W 90-110LM/W 90-110LM/W
Working voltage 15-17V 21-24V 35-38V 35-38V
Circuit 5S2P 7S4P 12S2P 12S4P

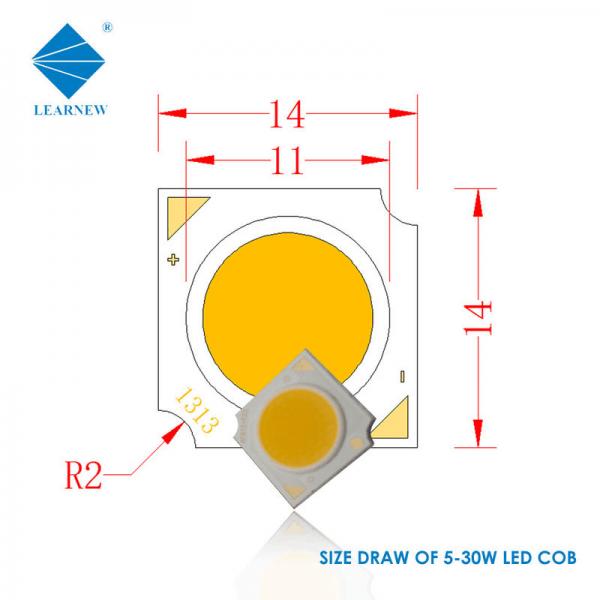

Size 14*14mm 14*14mm 14*14mm 14*14mm
LES(Diameter) R11mm R11mm R11mm R11mm
CRI >80 >80 >80 >80
IF 300mA 300mA 260-320mA 550-700mA

14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate

Design Advantage :

1,High density

2,High power series

3,Low thermal resistance

4,SDCM<5

5,CRI available in 80/90/95+

14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate

​14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate

Application:

1,LED spotlight

2,LED car light

3,LED downlight

4,LED tracking light

5,LED wall lamp

6,LED bulb

7,LED Fresh light

​14*14mm Flip Chip COB LED 300mA 10W 20W COB LED Aluminum Substrate

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
