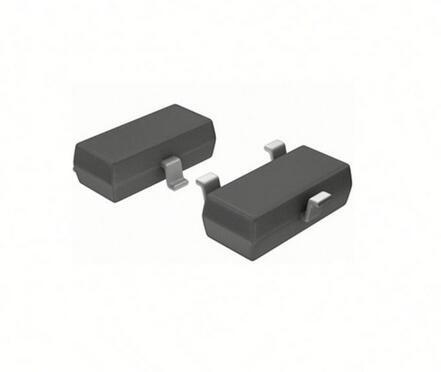

Electronic Components Trans MOSFET N-CH 20V 2.3A 3-Pin SOT-23 T/R STR2N2VH5 Integrated Circuits
Electronic Components Trans MOSFET N-CH 20V 2.3A 3-Pin SOT-23 T/R STR2N2VH5 Integrated Circuits
Specifications
Brand Name :
ST Micro electronics
Model Number :
STR2N2VH5
Certification :
Original Part
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
to be Negotiated
Payment Terms :
T/T, Western Union, Paypal, Wechat Pay
Supply Ability :
1 Million pieces per Month
Delivery Time :
Immediate
Packaging Details :
SOT-23
Packaging :
SOT-23
Product Description :
MOSFET N-CH 20V 2.3A SOT-23
Product Type :
Small Signal Field-Effect Transistors
Operating Temp Range :
-55C to 150C
Description

Electronic Components Trans MOSFET N-CH 20V 2.3A 3-Pin SOT-23 T/R STR2N2VH5 Integrated Circuits


Applications :

  • Switching applications

Description :

This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™ H5 technology. The device has been optimized to achieve very low on-state resistance, contributing to a FoM that is among the best in its class.

Electrical characteristics :

Electronic Components Trans MOSFET N-CH 20V 2.3A 3-Pin SOT-23 T/R STR2N2VH5 Integrated Circuits

Technical Specifications :

Lead Shape Gull-wing
Mounting Surface Mount
Package Width 1.3
Package Height 0.95
Package Length 2.9
PCB changed 3
Product Category Power MOSFET
Configuration Single Quad Drain
Process Technology STripFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 20
Maximum Gate Source Voltage (V) ±8
Maximum Gate Threshold Voltage (V) 0.7(Min)
Maximum Continuous Drain Current (A) 2.3
Maximum Gate Source Leakage Current (nA) 100
Maximum IDSS (uA) 1
Maximum Drain Source Resistance (mOhm) 30@4.5V
Typical Gate Charge @ Vgs (nC) 4.6@4.5V
Typical Input Capacitance @ Vds (pF) 367@16V
Maximum Power Dissipation (mW) 350
Typical Fall Time (ns) 4
Typical Rise Time (ns) 14.4
Typical Turn-Off Delay Time (ns) 17
Typical Turn-On Delay Time (ns) 4.8
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Automotive No
Supplier Package SOT-23
Standard Package Name SOT-23
Pin Count 3
Military No

for product datasheet, CONTACT US directly.
