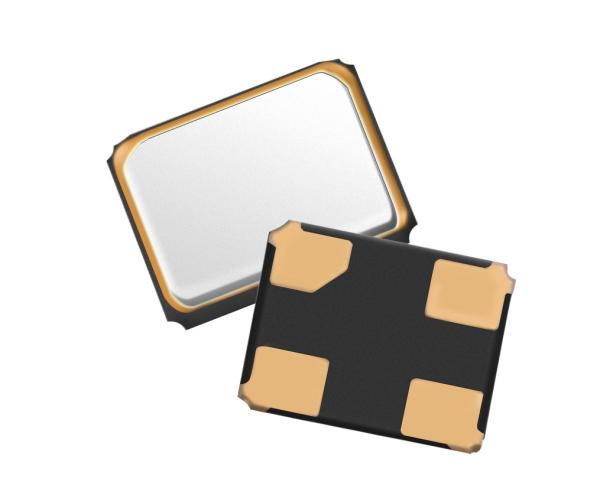

SMD 3225 16MHZ 10PPM 9PF Consumer Electronic Crystal Oscillator

product application

Internet equipment

Smart Wearable

Display mainboard

product features

Stable products

Artificial welding

Small size
Standard Environmental Condition:
Environmental Temperature:15℃~35℃
Humidity:45%~85%
Atmospheric pressure:86~106KPa
Operating Temperature Range:-20℃~70℃

Crystal Frequency & Resistance will be tested under the following conditions,

Unless extra requirments:

standard temperature(25±2℃) after heat balance.
Storage Temperature Range:-40℃~+85℃
Mechanical test:

The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.
Dropping Test:

The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage,after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.
Vibration Test:

The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.
Sealing Tightness:

Find Lead Test:≤1×10^-8atm·cc/S by Helium mass-mass-spectrometer detector,and vacuum and reach 1×10^-3Pa；

Resistance to Soldering Heat:

The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 320℃±10℃；For 3~4 secs and at a depth up to a point 2.0mm from the base root.

Product specification

product advantage

The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop. The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

Refluence examination
Frequency change:≤±5ppm



Dimension

FAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
