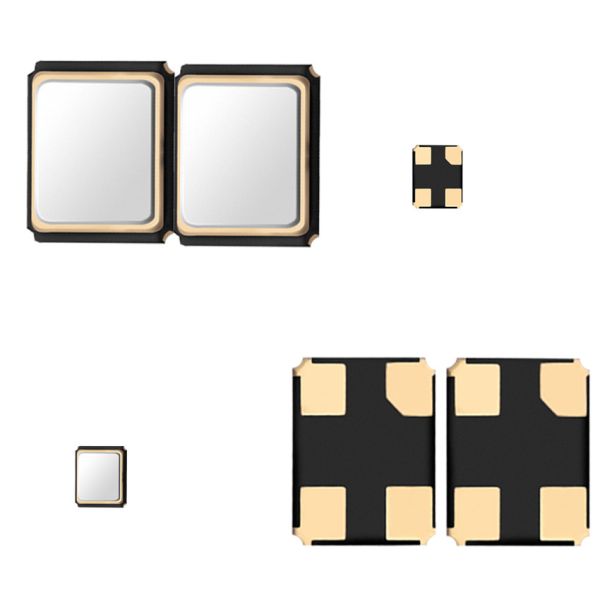

Bluetooth Passive Crystal Oscillator Matched With The PLL Circuit 16.000MHZ
Bluetooth Passive Crystal Oscillator Matched With The PLL Circuit 16.000MHZ
Specifications
Brand Name :
XTY
Model Number :
3225 16.000MHZ
Certification :
SGS REACH ISO9001:2008
Place of Origin :
China
MOQ :
1
Description :
3225
Nominal Freq :
XTY-16.000MHZ
Frequency Stability :
10PPM
Load Capacitance :
8~20Pf
Operable Temperature Range :
-40 °C To +85 °C
Storage Temperature Range :
-55 °C To +125 °C
Price :
0.03~0.22
Packaging Details :
3000pcs/tape.
Delivery Time :
7days
Payment Terms :
T/T
Supply Ability :
1 week
Description

Passive Crystal Oscillator SMD 3225 16MHZ 10PPM 9PF Consumer Electronic Components Products

Product description

The crystal is usually matched with the PLL circuit, the clock frequency to provide system required. If different subsystems need different frequency clock signal can be used in different phase locked loop is connected with the same crystal to provide.

Product application

For Bluetooth.PCs and hand-held electronic products.

Product specification

Type 3225
Frequency Range(MHZ) 16.000MHZ
Frequency Tolerance(at25℃) ±10PPm ,±5PPm at25℃+/-2℃
Frequency Stability vs. Temp(FL-T) ±10PPm,±20PPm ,±30PPm
Operating Temperature range -20~+70℃ -40~+85℃
Storage Temperature range -45~+80℃
Temperature Characteristics ±10PPm ±20PPm
Load Capacitance 8 to 20 Pf or Serles
Aging ±3 PPm/year
Insulation Resistance 500MΩ(DC100V±15V)

Dimension

Bluetooth Passive Crystal Oscillator Matched With The PLL Circuit 16.000MHZ

Frequency change:≤±5ppm

Bluetooth Passive Crystal Oscillator Matched With The PLL Circuit 16.000MHZ

Product advantage

An integrated structure of crystal resonator and thermistor.

High Quality Produce with SGS ,ROHS(JDS OR OEM ) ;

High production capacity;

Professional Electronics Components supplier and over 17 experience TECH

Advanced production line and test equipment from USA,JP,etc.

The company since its inception, adhere to the "strategy first, business success, management oriented" business promotion concept, step by step to become the most widely in Shenzhen and similar companies, the industry influential enterprises.

FAQ

Packing

3000pcs/tape.

Samples and technical support can be provided free of charge.
