N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
Specifications
Brand Name :
SMATiPC
Model Number :
H-ADLN01【HE-N97D14-2E】
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1
Price :
68-78
Payment Terms :
T/T,Credit Card,PayPal
Supply Ability :
10000 Pcs/month
Delivery Time :
5-7 Days For Sample
Packaging Details :
Netural
PCB Size :
151mm*120mm(L*W)
Processor :
N97
Supported Processors :
4×COM
Lan Ports :
1 x Gigabit Ethernet
USB :
4 x USB3.0 or 3x USB3.0+1x type-C
Power Supply :
DC 12/24V
Storage temperature :
-20~75℃
Other :
1 RJ11 cash box interface
Description
N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
Product Specifications
Attribute Value
PCB Size 151mm*120mm(L*W)
Processor N97
Supported Processors 4×COM
Lan Ports 1 x Gigabit Ethernet
USB 4 x USB3.0 or 3x USB3.0+1x type-C
Power Supply DC 12/24V
Storage temperature -20~75℃
Other 1 RJ11 cash box interface
Product Overview

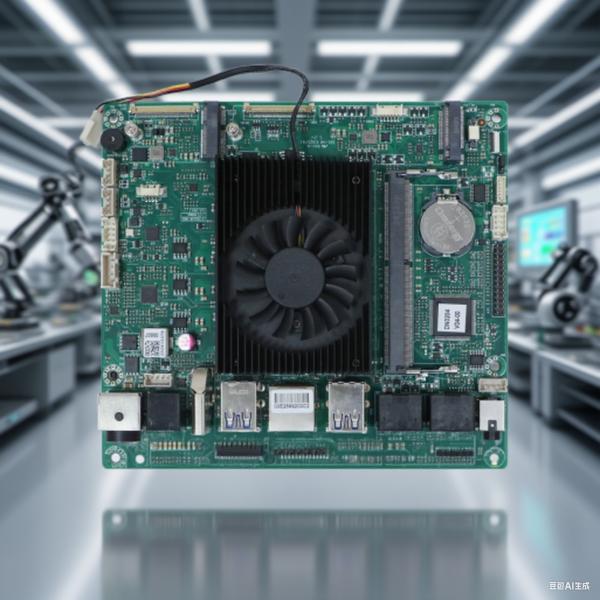

Powered by the Intel N97 processor, this industrial motherboard supports HDMI/EDP dual display outputs, making it ideal for multi-screen applications including point-of-sale systems, digital signage, and industrial automation. With 16GB DDR4 support, 10 USB ports, and M.2 KEY-E for Wi-Fi/Bluetooth expansion, it offers exceptional connectivity options. Features like watchdog timers and network wake-up ensure reliable 24/7 operation.
Technical Specifications
Technical Parameter Details
Size 151mm*120mm(L*W)
GPU Intel® UHD Graphics
Storage 1 X SATA3.0, 1xM.2 2242/2280
Display Three independent display interfaces HDMI+EDP+EDP support three displays
The maximum HDMI resolution is 4096x2160@30Hz
The maximum resolution of eDP is 1920*1080@60Hz
Memory Type DDR4
Lan 1 X Intel 1000M LAN
USB 4*USB3.0
Auto power on Support
Operating system Windows 10/11, Server 2019, Linux
