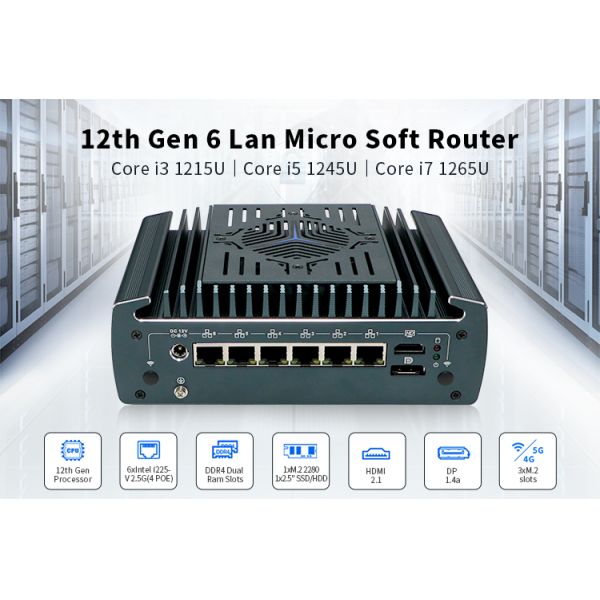

Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Specifications
Model Number :
N3161
Brand Name :
SMATiPC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
US $280-380
Certification :
CE,FCC,RoHs
Payment Terms :
T/T
Delivery Time :
5-8 Works Days
CPU Model :
Intel Core i5-1235U
CPU Cores :
Ten cores Twelve threads
CPU Frequency :
Up to 4.4 GHz
RAM Slots :
2 DDR4 SODIMM
RAM Capacity :
Max 64 GB
Storage Slots :
1 M.2 2280, 1 2.5-inch SSD/HDD
Display Chip :
Intel Iris Xe Graphics
Display Ports :
1 DP(1.4a), 1 HD(2.1)
USB Ports :
3 USB3.1, 3 USB2.0
Network Ports :
6 RJ45 2.5G Lan
POE Support :
Optional 4 POE
Power Supply :
DC 12V
Operating Temperature :
0℃ ~ +50℃ (Commercial HDD), -20℃ ~ +50℃ (Industrial SSD)
Dimensions :
186 * 126.5 * 66 mm
Net Weight :
1.3 kg
Description

Notice: This link's price is barebone system price, doesn't include ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

Firewall mini pc i5 1235U Ten core RAM 6*RJ45 2.5G Lan Support NVME Network server
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Product Paramenters
Model
Nano-N3161
Case Color
Metal gray (any color can be customized)
Material
High-quality all-aluminum alloy

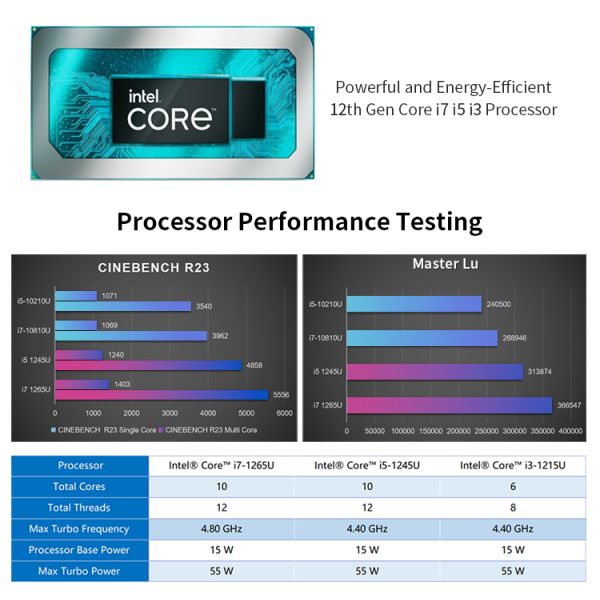

CPU
Intel Core i3-1215U (Six cores Eight threads, turbo frequency up to 4.4 GHz)
Intel Core i5-1235U (Ten cores Twelve threads, turbo frequency up to 4.4 GHz)
Intel Core i7-1265U (Ten cores Twelve threads, turbo frequency up to 4.8 GHz)
BIOS
AMI EFI BIOS
RAM
2 DDR4 3200 MHz SODIMM Ram slots, Max 64 GB
Storage
Support 1 M.2 2280 slot, 1 2.5-inch SSD/HDD
Display Chip
Intel Iris Xe Graphics
Display Interface
1 DP , 1 HD (Support synchronous & asynchronous dual display,DP interface resolution up to 4096x2160 @ 60Hz)

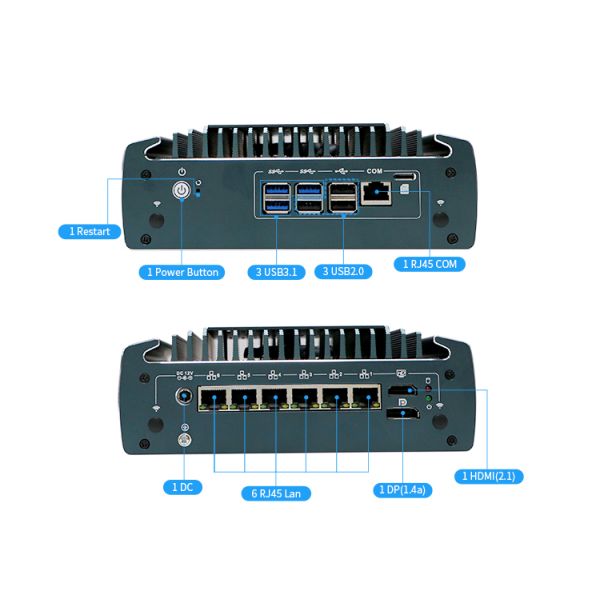

Front I/O
1 Power Button, 1 Restart , 3 USB3.1, 3 USB2.0, 1 RJ45 COM (support Console function)
Rear I/O
1 DC , 6 RJ45 Lan , 1 DP(1.4a) , 1 HD(2.1)
Network Card

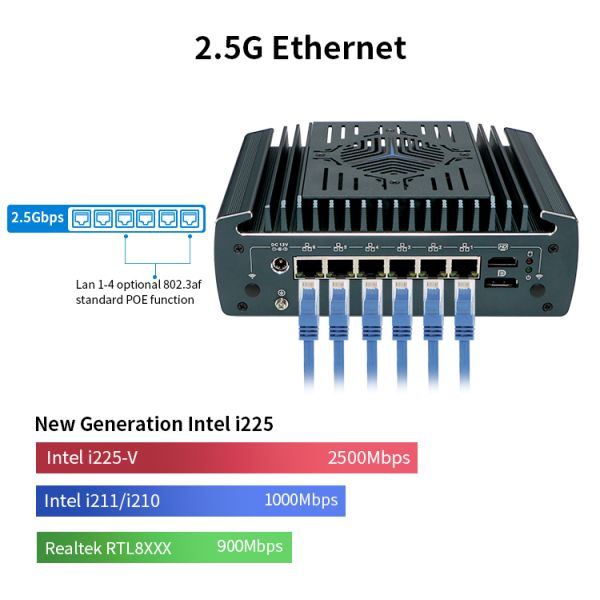

6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE function

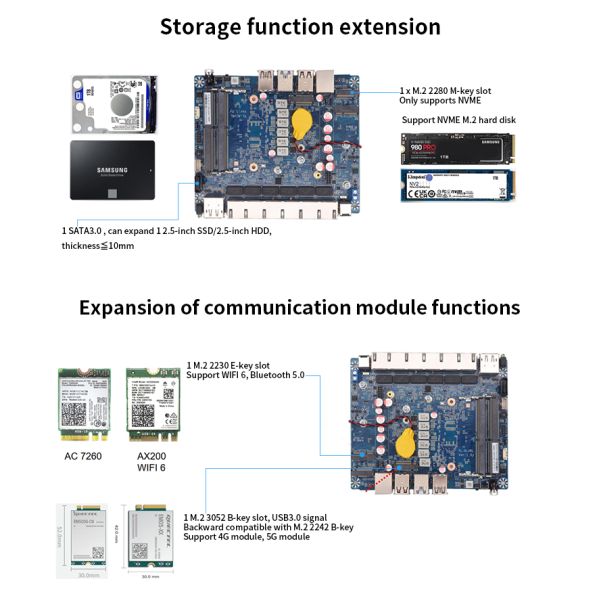

Expansion
1 M.2 2280 M-key slot (only supports NVME protocol)
1 M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot
1 M.2 2230 E-key slot (support WIFI, BT)
Other Function
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0～255 level)
Power Supply
Support DC 12V
Work Temp
0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃（(Industrial SSD),Surface air flow
Work Humidity
0% ～ 95% non-condensing
Cetificates
CE, CCC, FCC Class A, ROHS
Dimension
186 * 126.5 * 66 mm (L*W*H);
Net Weight
1.3 kg【not include wall bracket】
Application
Firewall,VPN,Network server,Network security,Router etc.
Details Images
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Packing & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.

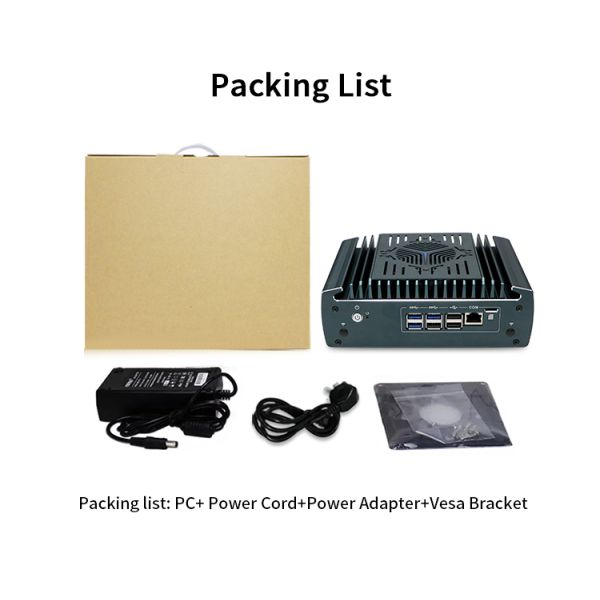

2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Company Profile
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design,producing, processing, marketing and distribution. Main products cover mini PC, HTPC,embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC

Our Services & Strength

1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
Firewall Mini PC with Intel Core i5-1235U 6 RJ45 2.5G LAN NVME Support Industrial Panel PC
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.

Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.

Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.

Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
