Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Specifications
Model Number :
N1342
Brand Name :
YANLING
Place of Origin :
Guangdong, China
MOQ :
1
Processor Core :
Quad Core
Processor Type :
Intel Twin Lake N150
CPU Architecture :
Twin Lake
Max Turbo Frequency :
3.6 GHz
RAM Type :
DDR5 4800MHz
Max RAM Capacity :
16 GB
Storage Slots :
1*M.2 2280, 1*2.5 inch HDD/SSD
Network Ports :
2*Intel i226-V 2.5G, 2*10 GbE SFP+
Display Ports :
1*HD, 1*DP
Display Resolution :
4096x2160 @ 60Hz
USB Ports :
1*USB3.1, 5*USB2.0
Power Consumption :
15w
Power Supply :
DC 12V-input
Dimensions :
135 * 135 * 48 mm
Weight :
0.8 kg
Description

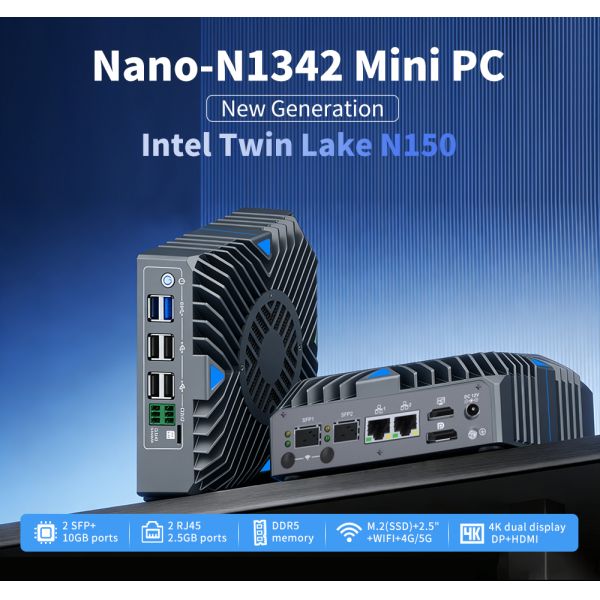

Mini PC N150 Firewall Hardware with Dual 10GbE SFP+ Ports
Compact firewall appliance featuring Intel N150 processor, dual 10GbE SFP+ ports, and dual 2.5GbE LAN ports. Ideal for OPNsense, IoT edge gateway, and industrial applications.
Key Features

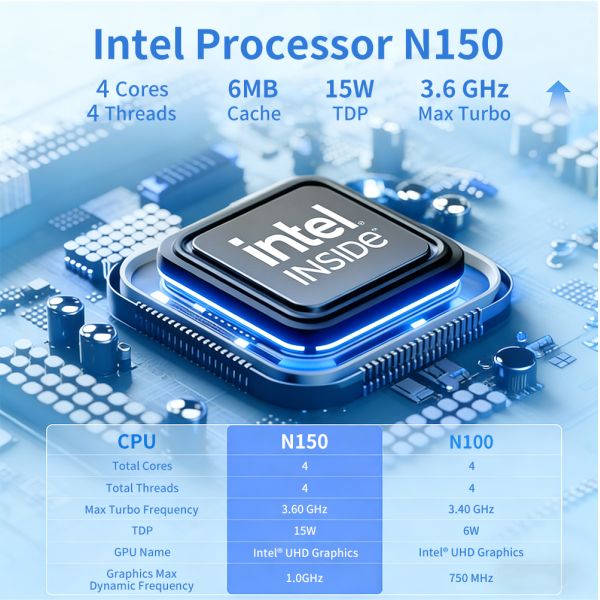

  • Powerful N150 Processor: 4 cores, 4 threads, 6MB cache, up to 3.6 GHz turbo frequency
  • High-Speed Networking: 2 x 10GbE SFP+ ports (Intel 82599ES) + 2 x 2.5GbE LAN ports (Intel i226-V)
  • Advanced Memory & Storage: DDR5 4800MHz SO-DIMM slot + M.2 2280 SSD + 2.5-inch drive bay
  • Dual Display Support: HD and DisplayPort interfaces supporting 4K@60Hz resolution
  • Comprehensive I/O: Multiple USB ports, COM ports, and expansion capabilities
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
Technical Specifications
Model Nano-N1522
Color Metal ash (color can be customized)
Processor Intel Twin Lake N150 (4 cores 4 threads, Max 3.6 GHz)
Memory 1×DDR5 4800MHz SODIMM slot, up to 16 GB
BIOS AMI UEFI BIOS
Display Ports 1×HD, 1×DP, Resolution up to 4096×2160 @ 60Hz

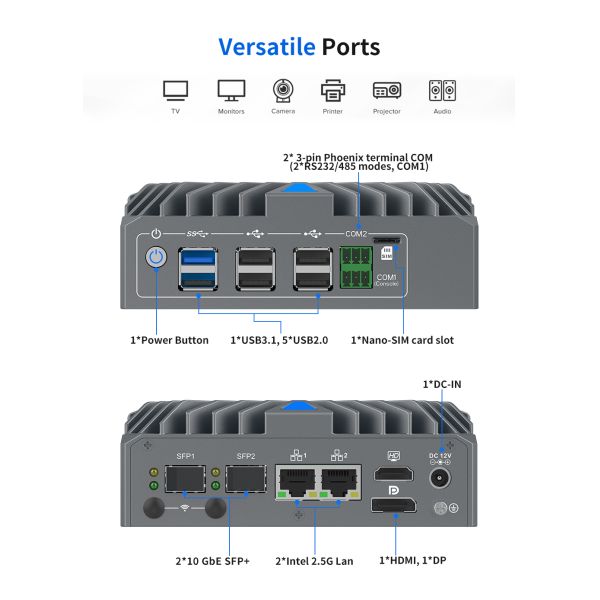

Front I/O 1×power button, 1×USB3.1, 5×USB2.0, 1×Nano-SIM card slot, 2×3-pin Phoenix terminal COM
Rear I/O 1×DC, 1×HD, 1×DP, 2×Intel 2.5G Ethernet ports, 2×10 GbE SFP+ ports
Expansion Slots 1×M.2 2280 M-key (SATA & PCIe 3.0 X1 NVME)
1×M.2 2230 E-key (PCIe & USB / CNVIo2)
1×M.2 2230 E-key (supports CNVio2 protocol WIFI, BT)
1×M.2 3052 B-key (USB 3.0, 4G/5G)
4 GPIO channels (expandable interface)
Network 2×Intel i226-V 100/1000/2500M Ethernet ports
2×10 GbE SFP+ ports (Intel 82599)
Storage 1×M.2 2280 slots, 1×2.5 inch HDD/SSD
Power Supply DC 12V-input
Other Functions Power on, timed power on, network wake up, PXE boot, watchdog, TPM2.0 security encryption
Operating Temperature 0℃ to +40℃ (commercial HDD), -20℃ to +50℃ (industrial SSD)
Dimensions 135 × 135 × 48 mm
Weight 0.8 kg
Applications Industrial control, automation, robotics, IoT, edge computing, machine vision, AGV/AMR
Product Images
Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports, Quad Core N150 Processor, and DDR5 Memory for IoT Edge Gateway
About YANLING Industrial Computer Technology
Established in 2007, YANLING Industrial Computer Technology (Shenzhen) Co., Ltd specializes in manufacturing mini computers, industrial PCs, firewall appliance devices, industrial panel PCs, and motherboards for various industries including self-service terminals, digital signage, interactive kiosks, industrial automation, medical equipment, machine vision, and logistics transportation.
We provide comprehensive hardware solutions for OEM & ODM customers and system integrators worldwide, committed to customer success through quality products and reliable support.
