LCF3M SS316 Single Acting Pneumatic Diaphragm Valve
LCF3M SS316 Single Acting Pneumatic Diaphragm Valve
Specifications
Brand Name :
POWERFLOW
Model Number :
2800+1600
Certification :
ISO9001. CE. Nepsi.
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Valve Body Material :
AISI 316L/316
Seal Material :
PTFE/EPDM
Working Temperature :
-20-180 degree centigrade (PTFE); -20-150 degree centigrade (EPDM)
Available Connection :
Thread, Clamp, Weld, Flange
Air Supply :
4-8bar(Single-Acting); 2.5-8bar(Double-Acting)
Standard :
DIN, SMS, ISO, IDF,RJT, 3A, etc
Description

2800 Series SS316(LCF3M) Single-acting Pneumatic Diaphragm Control Valve

1. Product Description

The diaphragm control valve is combined with the intelligent positioner (1600) and the diaphragm valve(2800). The product is easy to operate and has rich software functions. It can easily be operated via the LCD and keypad. It detects the external setting signal and the signal of internal displacement sensor, and adjusts valve stroke quickly and accurately by using automatic control algorithm and PWM control technology.

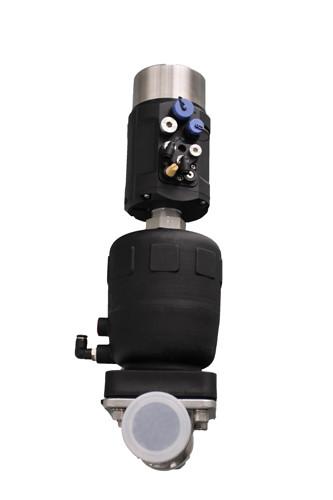

LCF3M SS316 Single Acting Pneumatic Diaphragm Valve​

​2. 2800 Technical Datas

Valve Body Material Stainless steel 316(CF8M)/316L(CF3M)
Seal Material EPDM/PTFE
Working Pressure 10Bar
Working Temperature

-20-180 degree centigrade (PTFE)

-20-150 degree centigrade (EPDM)
Availably size DN15-DN80
Availably connection Thread, Weld, Clamp, Flange
Air Supply

4-8bar(Single-Acting)

2.5-8bar(Double-Acting)
Standard DIN,SMS,ISO,IDF,RJT,3A,etc
Certificate CE

3. 2800 Series Diaphragm Valve Structure

LCF3M SS316 Single Acting Pneumatic Diaphragm Valve

1. Indicator 6. Piston
2. Spring 7. Stem
3. Cylinder 8. Diaphragm
4. Pneumatic Port 9. Valve Body
5. Seal Ring

4. 2800 Series Diaphragm Valve Dimension

LCF3M SS316 Single Acting Pneumatic Diaphragm Valve

Model L d D D1 D2 A H

Actuator

Size
DN15 120 15 95 65 45 80 145 63
DN20 140 19 105 75 55 100 167 80
DN25 150 22.5 115 85 65 100 170 80
DN32 160 28 135 100 75 100 175 80
DN40 180 36 145 110 85 126 225 100
DN50 200 46 160 125 100 126 238 100

5. 1600 Series Positioner Signal Flow Diagram

LCF3M SS316 Single Acting Pneumatic Diaphragm Valve

6. 2800 Sereis Type Selection

LCF3M SS316 Single Acting Pneumatic Diaphragm Valve

* Default actuator type is Single acting and normally close, Please remark if you need other type of actuators
