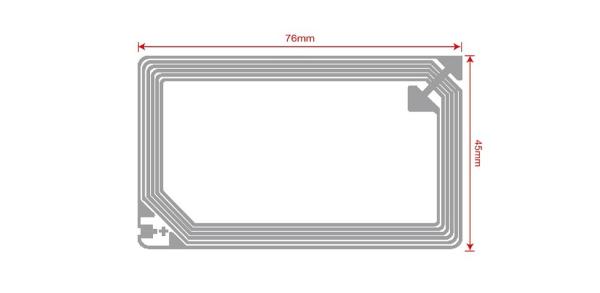

Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Contactless Dry RFID Inlay 13.56 MHz Transparent Color For Logistics
Specifications
Brand Name :
OEM
Model Number :
DInlay-19
Certification :
ISO CE ROSH
Place of Origin :
China
MOQ :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000000pcs/year
Delivery Time :
7-10 days
Packaging Details :
200pcs/box,10boxes/carton,
Operating Frequency :
13.56MHz High Frequency
Tag's Chip :
MF Classic , MF , MF Plus , MF , Monza,Alien H3
Reading distance :
1-10 cm
Materials :
AL-etching antenna, PET substrate,Copper
Dimension :
CR80,Dia 20/25/28/30/35mm,40*40,44*46,30*45,70*17,93*19,50*50 or customized
Work Temperature :
-10°C to +50°C
Application :
Card factory,NFC Payment ,Logistics,warehouse inventory,apartment,asset management
Read/Write Times :
100000 times
Package :
1000-5000pcs per roll
Description

13.56MHz Contactless Dry RFID Inlay 85.5*54mm Size for RFID Smart Cards Factory

Materials

PVC, PETG, PC

Colour

White or Transparent

Standard

ISO14443, ISO15693, ISO 18000, etc.

Dimension

310*468mm, Max. size 520*420mm, A4 210*297mm, etc.

Layout

2*5, 4*5, 5*5, 3*8, 4*8, 6*8, 6*10, or any customized

Thickness

HF: normal 0.45mm, 0.5mm, min.0.3mm
LF: normal 0.6mm, Min. 0.5mm
UHF: 0.6mm, 0.5mm

Antenna

HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding
LF: Pre-winding Copper Coli, AL Etching
UHF: AL Etching

Bonding

LF: Wire Bonding
HF: FlIP Chip, Wire Bonding, MOA2
UHF: FlIP Chip

Read Range

more than 50mm with our reader

Applications

Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.

Working Temperature

-25ºC ~ +55ºC

Store Temperature

-25ºC ~ +65ºC

Min. Order

100 Pieces

FOB Price

USD 0.1~0.9

Port

Shanghai

Payment Terms

L/C, D/A, D/P, T/T, MoneyGram, Paypal

Supply Ability

1000000 Piece/Pieces per Month

Delivery Details

8-12 days after payment

Packaging Details

2500/3000/5000 PCS Per Carton, or Customized

Available IC's:

Available 125KHz Chip

Chip Type

Protocal

Capacity

Anti Collision

Function

TK4100

/

64 bit

No

Read Only

EM4200

/

128 bit

No

Read Only

T5577

/

330 bit

No

Read/Write

Available 13.56MHz Chip

F08

ISO14443A

1 KB

No

Read/Write

Legic MIM 256

/

256 byte

No

Read/Write

Legic MIM 1024

/

1024 byte

No

Read/Write

Legic ATC 128

/

128 byte

Yes

Read/Write

Tag-it 2048

ISO15693

2KB

Yes

Read/Write

Available 860-960MHz Chip

Alien H3

ISO18000-6C

512 bit

Yes

Read/Write

Impinj M4

ISO18000-6C

512 bit

Yes

Read/Write
