STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless Communication
STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless Communication
Specifications
Brand Name :
HUIYUE
MOQ :
1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000
Delivery Time :
4weeks
Standard :
STS Standard
Input :
IC Card
Pulse Output :
No
Application :
Civil
Batterylife :
5 to 10 years
Size :
2 inches
Keyword :
RS485,MODBUS,MBUS
Max Reading :
99999m³
Accuracy Class :
A, B
Flow Range :
0.5-50 m³/h
Working Current :
≤ 10mA
Hot Water Meter :
0-90 ℃
Communication Technology :
Wireless
Measurementtype :
Volumetric
Flow Turndown :
(Q3/Q1): 80
Description

HUIYUE Smart Split Keypad Water Meter is composed of a Class C prepaid Multi-jet water meter and a separate customer interface unit (CI U) with RF wireless communication module.

Application:

Measuring the volume of cold water through water pipe.

Compliance with Standard

* ISO 9001 ; ISO 14001

* STS Certificated

Metrological Parameters of different size

Size

DN15 1/2”

DN20 3/4”

DN25 1”

Overload flow rate Q4

3.125

5.0

7.875

Permanent flow rate Q3

2.5

4.0

6.3

Transitional flow rate Q2

0.025

0.040

0.063

Minimum flow rate Q1

0.0156

0.025

0.0393

Ratio ”R” Q3/Q1

160

160

160


Features

* Maximum working pressure: 16 Bar

* Maximum pressure loss: 0.6 Bar

* Maximum reading: 99999

* Working temperature: < 50 ℃

* Error: Q1≤Q≤Q2 5%;

Q2≤Q ＜Q4 2%

STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless Communication

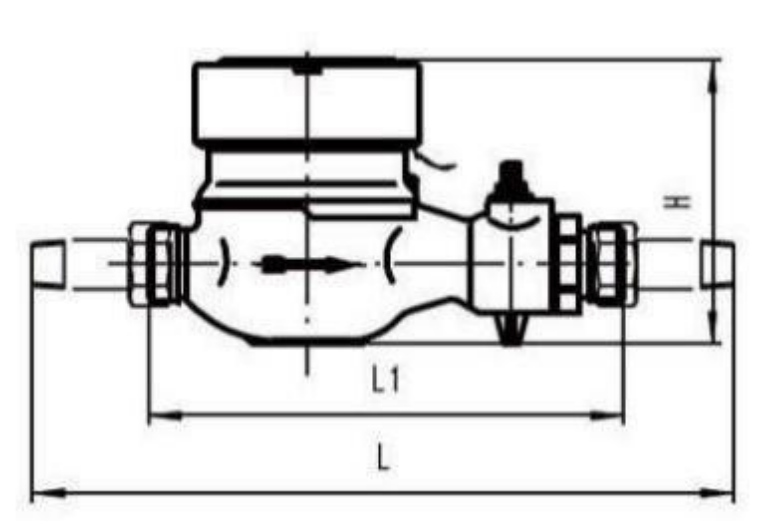

Meter Dimension

Size

DN15 1/2”

DN20 3/4”

DN25 1”

Length(L)

165/190

190

225/260

Width(W)

99

99

103

Height(H)

104

106

114

Connecting Thread

G3/4B

G1B

G1-1/4B



How to recharge by AMI System?
