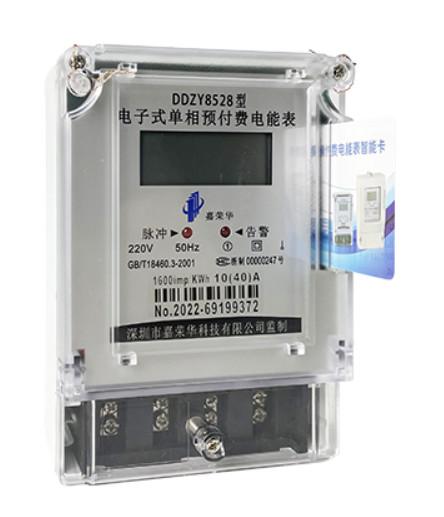

50Hz Prepaid Energy Meter Single / Three Phase IC CARD Electricity Meter
50Hz Prepaid Energy Meter Single / Three Phase IC CARD Electricity Meter
50Hz Prepaid Energy Meter Single / Three Phase IC CARD Electricity Meter
50Hz Prepaid Energy Meter Single / Three Phase IC CARD Electricity Meter
Specifications
Brand Name :
HUIYUE
Model Number :
DTSY238
Place of Origin :
China
Communication Interface :
Modbus
Operating Temperature :
-10°C to 50°C
Display Type :
LCD
Certifications :
CE, RoHS
Communication Protocol :
RS485
Installation Type :
Wall-mounted
Accuracy :
Class 1.0
Type :
Electricity Meter
Measurement Method :
Electronic
Frequency :
50Hz
Packaging Details :
Individually packaged, carton packaged; size can be adjusted according to actual needs.
Delivery Time :
1~2weeks
Payment Terms :
T/T、D/P、D/A
Supply Ability :
5000pcs/month
Price :
$30~100usd
Description

Introduction

This meter is designed and manufactured with stable, low-power industrial-grade components and SMT technology. It has reliable and stable performance and is suitable for small and medium-sized enterprises, residential communities, apartment dormitories and shopping mall tenants that implement single-rate electricity prices to achieve IC card prepaid recharge management. Product standards: GB/T17215.321, GB/T18460.3-2001.

Product features

1. Single/three-phase active energy metering, reverse power is included in the forward power.

2. LCD displays total power consumption and remaining power.

3. One meter and one card are encrypted and used independently, which is safe and reliable.

4. The logical encryption card supports prepayment function, pay first and then use electricity.

5. Power overload alarm tripping and power prepayment.

6. Equipped with a stand-alone prepayment system, the card reader is connected to the computer for simple operation.

7. Phase loss metering of three-phase electricity meter, if any one or two phases of the three phases are powered off, the metering accuracy will not be affected.

8. Working temperature: -20℃~+55℃.

9. Extreme temperature: -25℃~+70℃.

Technical Parameters

Item

Prepaind single phase energy meter

Prepaind three phase energy meter

Accuracy level

Active power level 1

Reference voltage

AC220V ±20%

AC3x220/380V ±20%

Power consumption of the whole device

≤1W/8VA

≤1W/8VA per phase

Direct current

5(20)A,10(40)A,5(40)A,15(60)A, 20(80)A,20(100)A

1.5(6)A mutual inductance external control, 10(40)A, 15(60)A, 20(80)A, 20(100)A direct internal control or other specifications

Reference frequency

50Hz

50Hz
