Introduction:

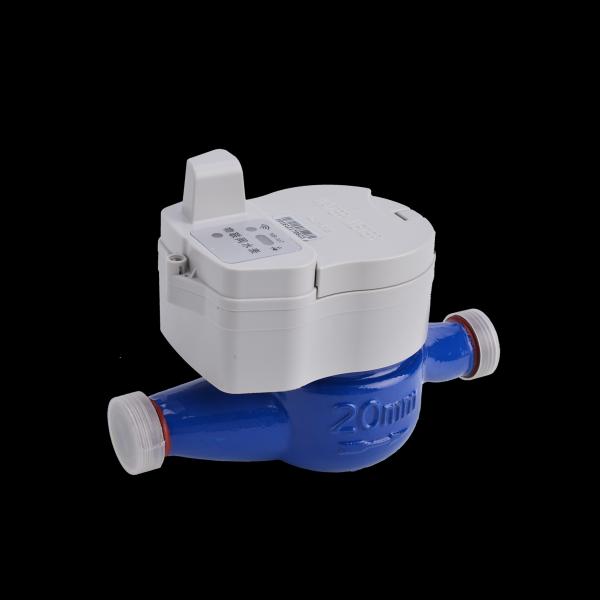

NB-IOT Non-magnetic Sensor Smart Water Meter adopts advanced LPWA (Low Power Wide Area Internet of Things) technology, which has the advantages of deep network coverage, wide link, and low power long-distance transmission. This product is mainly based on a wet water meter, and is equipped with a highly reliable wireless transceiver module and a remote control module. Through connected with energy efficiency management platform and operator base net, real time online, remote control and smart energy efficiency management are available. It is a suitable water measurement device for smart water construction, water supply company and various water management department.
The product performance index conforms to GB/T778-2018.

LXS-15~25 uses dry multi-flow water meter as the base meter and applies the electromechanical conversion method of non-magnetic counting. It transmits data remotely through NB-loT or LoRa network. After connecting to the server, users can centrally manage the water meter.

Product features

1. The signal module and the base meter are installed in a split style, with good interchangeability.

2. The battery is packaged independently for easy replacement.

3. The latest NB-loT or LoRa data transmission technology is adopted, with wide network coverage and stable and reliable signals.

4. The signal position can be measured in 1L or 10L positions according to needs, which can meet different needs and has high measurement accuracy.

5. The signal module can be directly installed on the base meter, which only increases the height by 28CM, and the module can be rotated.

6. The password lock setting protects the user configuration operation menu, displays various information on various flow rate units, cumulative flow, forward, reverse flow and net flow, and alarms when the upper and lower limit flow exceeds the limit and records relevant data.

Technical Parameters
