3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
Specifications
Brand Name :
OEM
Model Number :
CR-LLL-3580
Certification :
CE,ROHS
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
62usd/piece
Payment Terms :
T/T,Western Union
Supply Ability :
5000pieces 10-15work days
Delivery Time :
7-10work days
Packaging Details :
carton packaging 125*15*10cm
Input Voltage :
AC100-277V, 50-60Hz
Color :
3000K/4000K/5000K/6000K
Color Rendering Index(Ra) :
>80
Lamp Body Material :
Aluminum, PC
Beam Angle :
≥120°
Warranty :
3-Year
IP Rating :
IP20

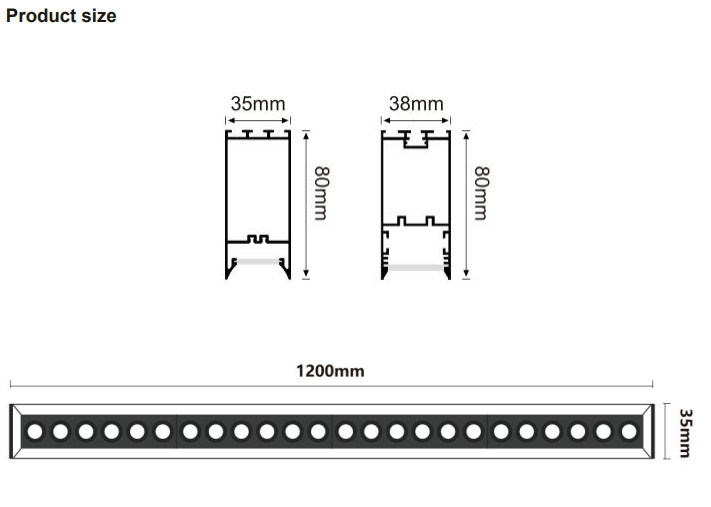

Dimension :
1200x35x80mm
Description

3580 3880 LED Linear Light 3000-6000K LED Ceiling Linear Light Aluminum,PC 3 Years

LED Linear Light Technical Parameters:

Circle Ellipse White Oval
Dimension 1200x35x80mm 1200x35x80mm 1200x35x80mm
Power 48W 48W 48W
Input voltage AC100-277V, 50-60Hz AC100-277V, 50-60Hz AC100-277V, 50-60Hz
LED Chips brand Bridgelux Bridgelux Bridgelux
Lumens >3600LM >3600LM >3600LM
2.4G Full Power >6000LM(4000K) >6000LM(4000K) >6000LM(4000K)
CCT 3000K/4000K/5000K/6000K
CRI >80 >80 >80
SDCM <5 <5 <5
Efficiency ≥88% ≥88% ≥88%
Beam Angle ≥120° ≥120° ≥120°
IP grade IP20 IP20 IP20
Lamp thickness 0.8mm 0.8mm 0.8mm
Dimmable 0-10V/2.4G/APP/TRIAC dimming/ Dali
Standard ±3% ±3% ±3%
Warranty 3 years 3 years 3 years
UGR <19 <16 <6
Material Aluminum,PC Aluminum,PC Aluminum,PC
Installation Ceiling installation Ceiling installation Ceiling installation
Grid Transparent Ellipse Prismatic Panel
Dimension 1200x35x80mm 1200x35x80mm 1200x35x80mm
Power 40W 48W 40W
Input voltage AC100-277V, 50-60Hz AC100-277V, 50-60Hz AC100-277V, 50-60Hz
LED Chips brand Bridgelux Bridgelux Bridgelux
Lumens >3000LM >3600LM >4800LM
2.4G Full Power >4500LM(4000K) >6000LM(4000K) >3750LM(4000K)
CCT 3000K/4000K/5000K/6000K
CRI >80 >80 >80
SDCM <5 <5 <5
Efficiency ≥88% ≥88% ≥88%
Beam Angle ≥120° ≥120° ≥120°
IP grade IP20 IP20 IP20
Lamp thickness 0.8mm 0.8mm 0.8mm
Dimmable 0-10V/2.4G/APP/TRIAC dimming/ Dali
Standard ±3% ±3% ±3%
Warranty 3 years 3 years 3 years
UGR <9 <11 <11
Material Aluminum,PC Aluminum,PC Aluminum,PC
Installation Ceiling installation Ceiling installation Ceiling installation

Installation Guide:

3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
