Custom LED Linear Light 1200*80*60mm Perfect for Office Lighting Snooker Lights

OCAR LED Test Equipment Demo Kit T8 Tube Bulbs Downlights E27/E14/MR16/GU10 Lamp Bases Dimmer Supported

i-function led light sample case, led test suitcase

Highlight:

• All LED Demo Case can customized according to your requirements such as the size,material,color,logo and led lamp sockets etc.

LED Demo Case Product Description:

Product Name: LED Test Demo Case

Model: CR-LDC-01

Function: Test & Demo LED lamps

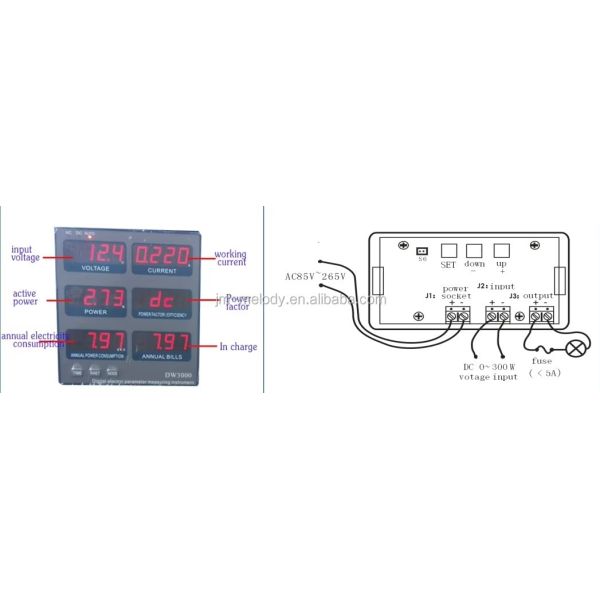

Meter Function: AC,DC,Voltage, Current, Frequency, Annual Power consumption, etc.

Material: Aluminum alloy, MDF, Acrylic etc.

Functions & Usage:

Led demo case functions:

Specification:

1. Recognized lamp holder: all socket interface has a corresponding-marked name for the user to distinguish and identify; All sockets have one-on-one control switch, convenient control and test.
2. The case internal circuit: strictly distinguish for AC and DC; AC socket (- AC) interface can test the electric parameters are as follows: voltage, current, power, power factor, annual power consumption (10 hours /per day ) and frequency;
3. DC (- DC) part of the parameter display: DC lamp holder (- DC) interface data displayed in the DC POWER , such as MR16. Dc voltage in the box internal is transformed into 12 v output to light sit interface.
4. Parameters for GU10,E14, E26/ E27 /G24/MR16 and so on …can be tested (voltage, current, power, power factor, annual current consumption )
5. Design for dimmable: Dimmable engine and Dimmable switch; there are two positions for dimmable switch-DIMMBALE and NON-DIMMABLE. When put the switch on dimmable position, the brightness for all dimmable lamps can be adjusted. When put the switch on Non-dimmable position, all the dimmable lamps can’t be adjusted. So it can be tested that if the brightness of the lamp can be adjusted.

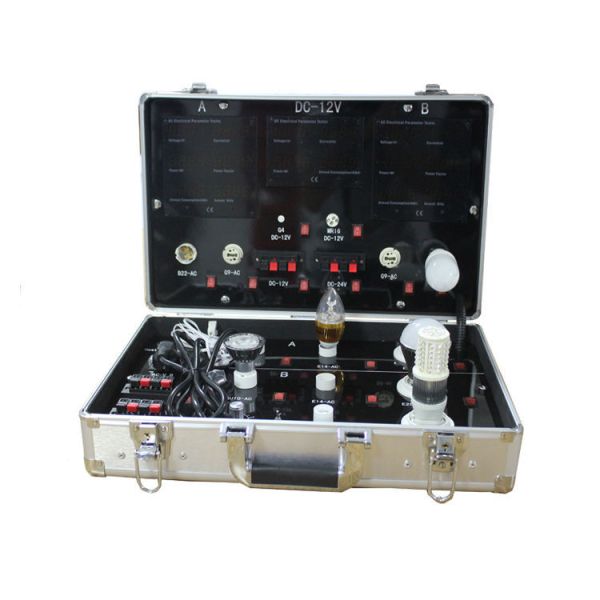

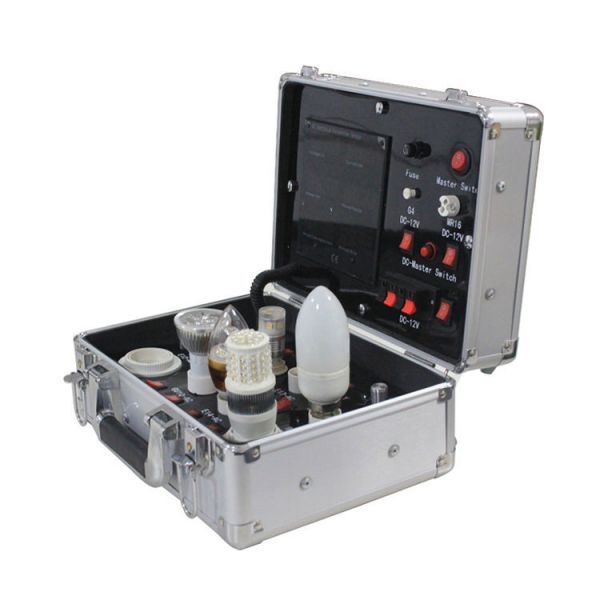

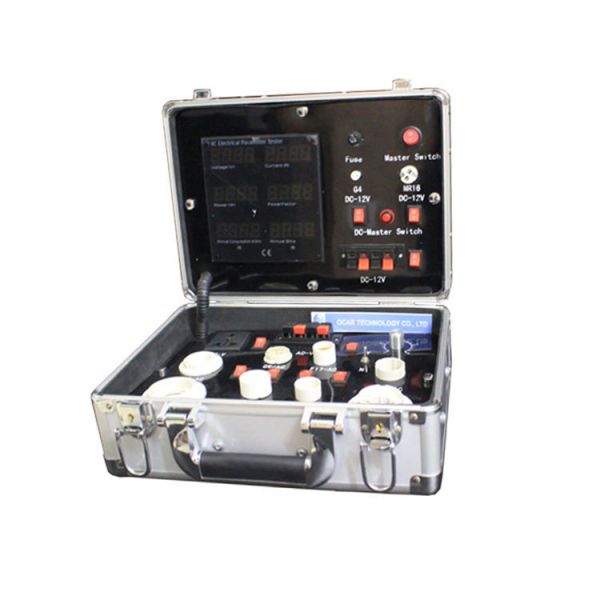

Detail pictures:
