2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
Specifications
Model Number :
KF-700C-WK
Operating Mode :
Auto / Manual / Schedule Mode
MOQ :
1
Delivery Time :
2-3 weeks
OEM/ODM Service :
Available
Price :
US$22/pcs
Power Supply :
Customized According to Project Requirements
Payment Terms :
T/T
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Material :
PC and ABS
Certification :
CE, RoHS
Communication Interface :
RS485 Standard
Place of Origin :
China
Shell color :
White & black
Description
Product Overview:

KF-700C-WK the thermostat is suitable for indoor temperature control of central air conditioning fan coil systems or air duct systems.

It continuously compares the indoor temperature with the user-set temperature and automatically controls fan coil units, motorized valves, underfloor heating systems, or water valves at HVAC terminal ends.

By intelligently managing system operation, it ensures stable indoor comfort while improving energy efficiency and reducing energy consumption. With a modern interface, clear display, and multiple control modes, it is suitable for residential, commercial, and hotel HVAC applications.

Key Features:
  • Fan Speed Control
    Adjustable fan speed with automatic mode support.

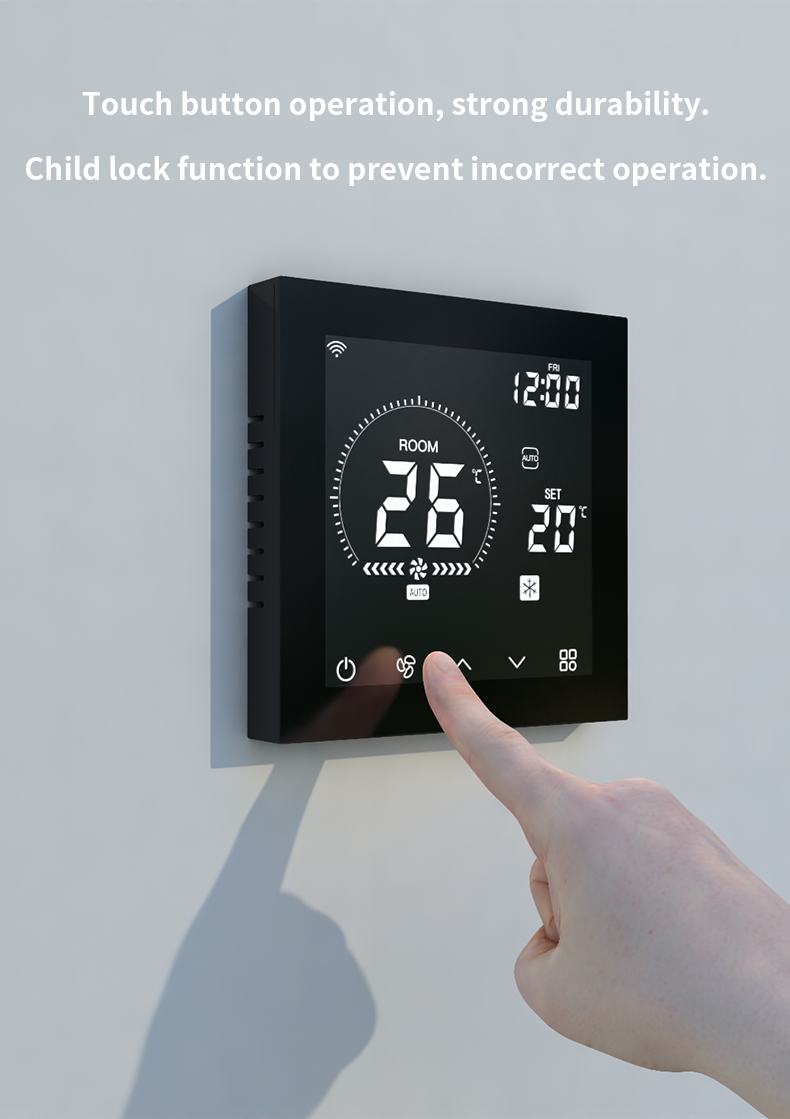

  • Modern LCD Interface
    Clear digital display with intuitive user operation.
  • Safety Function
    Built-in child lock to prevent accidental operation.
  • Wide Application
    Ideal for residential, hotel, office, and commercial HVAC systems.
Product Specifications:
* Dimension:
86 × 86 × 40 mm
* Temperature display range:
0℃ —— 50℃
* Fixing hole distance:
60mm (standard)
* Operating temperature:
-10℃--- +50℃
* Wiring terminal:
Max 2.5 mm2 wire
* Operating humidity:
5％RH——90％RH
* Rated voltage:
AC110-240V, 50/60Hz
* Storage temperature:
-10℃--- +60℃
* Standby Power:
≤ 2.0W
* Storage humidity:
≤ 60％RH
* Control power:
≤ 200W
* Life:
≥ 5 years
* Suitable for fans:
AC/EC/DC

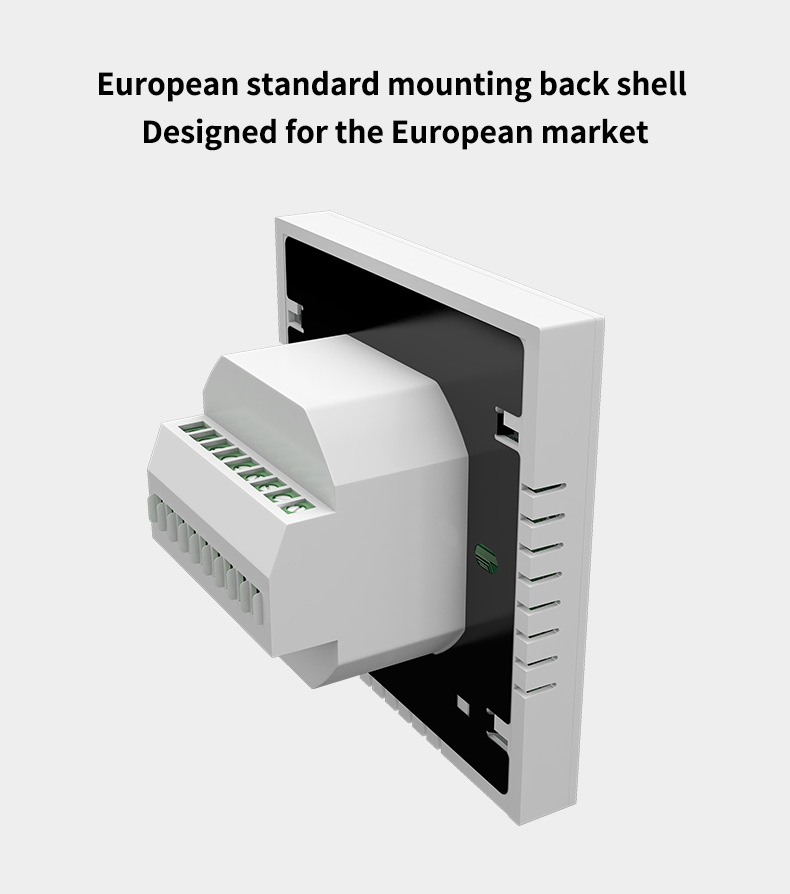

Product Images:

2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller

2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller


Wiring Diagram:
2 Pipe 4 Pipe Fan Coil Thermostat With LCD Display Temperature FCU Controller
