Central Air Conditioning Thermostat With Precise Temperature Control Multi System
Central Air Conditioning Thermostat With Precise Temperature Control Multi System
Central Air Conditioning Thermostat With Precise Temperature Control Multi System
Central Air Conditioning Thermostat With Precise Temperature Control Multi System
Specifications
Model Number :
KF-700C-WK
Temperature display range :
0℃ ---- 50℃
MOQ :
1
Delivery Time :
2-3 weeks
Rated voltage :
AC110-240V, 50/60Hz
Payment Terms :
T/T
Price :
US$22/pcs
Control power :
≤ 200W
Certification :
CE, RoHS
Fixing hole distance :
60mm (standard)
Place of Origin :
China
Operating temperature :
-10℃--- +50℃
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Dimension :
86 × 86 × 40 mm
Description
Product Overview:

The KF-700C-WK thermostat is designed for precise indoor temperature control in central air conditioning fan coil systems and air duct systems.

It continuously compares the indoor temperature with the user-set temperature and automatically controls fan coil units, motorized valves, underfloor heating systems, or water valves at HVAC terminal ends.

By comparing the indoor temperature with the set temperature, it controls the opening and closing of the fan coil units, underfloor heating valves, or water valves at the end of the air conditioning system, achieving the goal of regulating indoor temperature, comfort, and energy conservation.

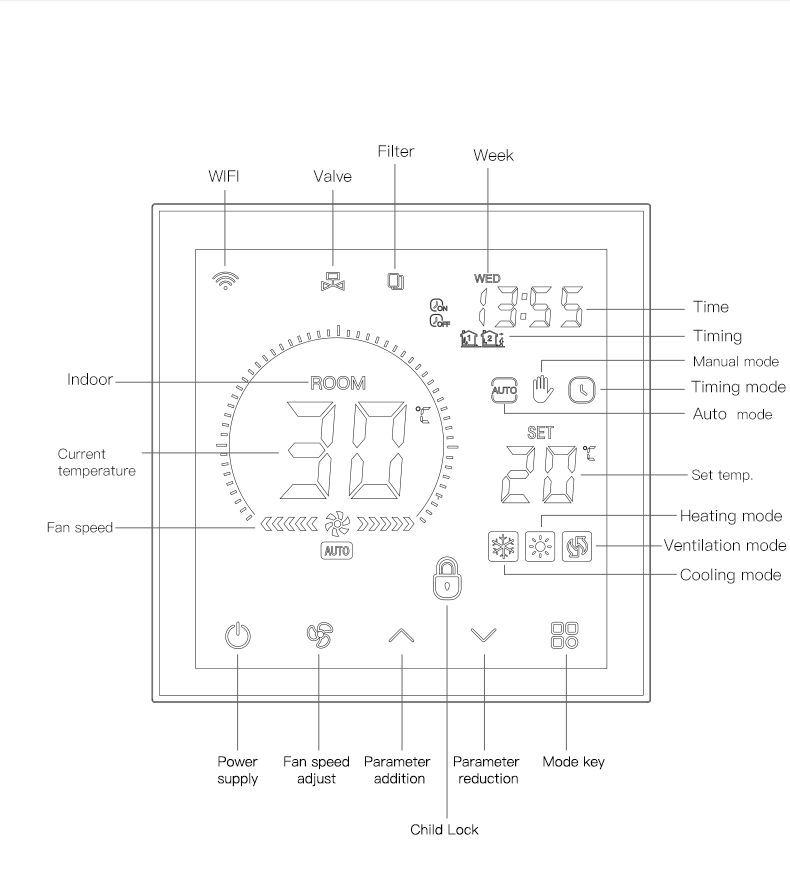

Key Features:
  • Precise Temperature Control
    Maintains stable indoor comfort by comparing room temperature with set value.
  • Multi-System Compatibility
    Suitable for fan coil units, central air conditioning, and air duct systems.

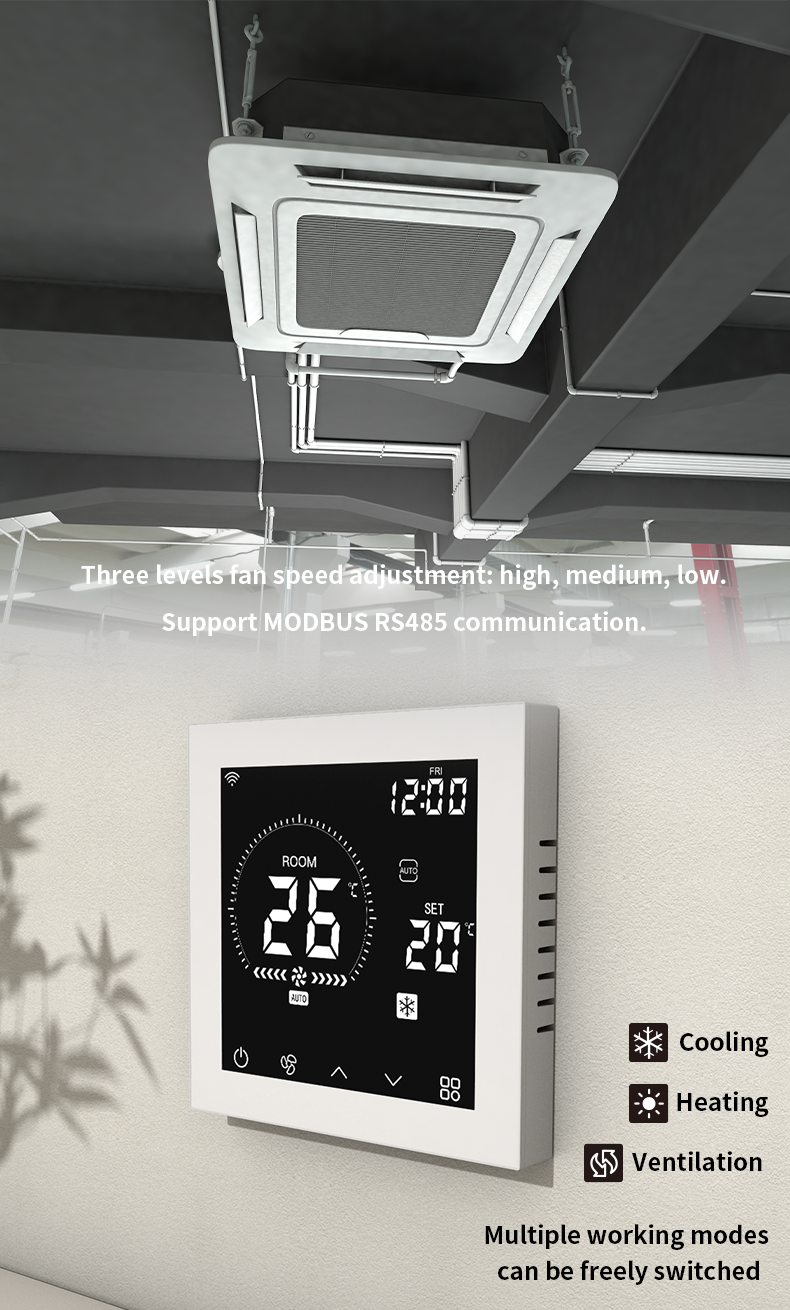

  • Multiple Control Modes
    Supports heating, cooling, and ventilation functions.
  • Smart Operation Modes
    Includes manual mode, auto mode, and timing/program control.
Product Specifications:

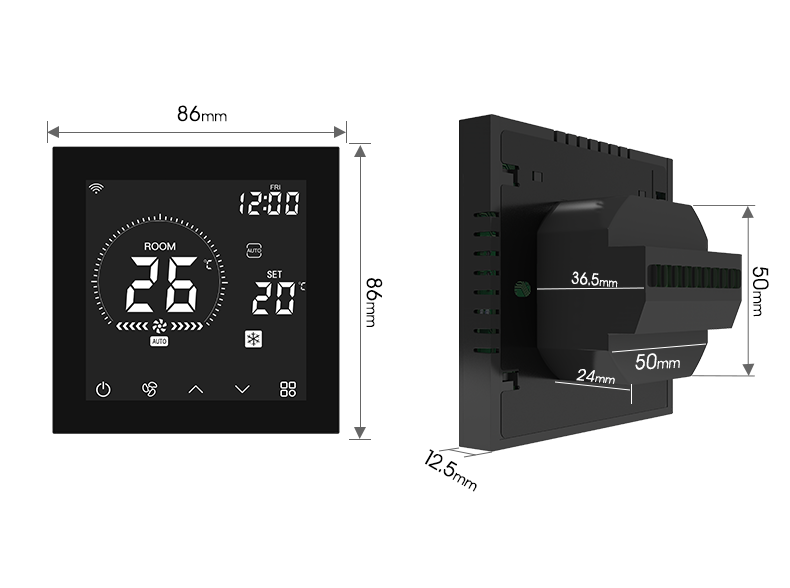

* Dimension: 86 × 86 × 40 mm * Temperature display range: 0℃ —— 50℃
* Fixing hole distance: 60mm (standard) * Operating temperature: -10℃--- +50℃
* Wiring terminal: Max 2.5 mm2 wire * Operating humidity: 5％RH——90％RH
* Rated voltage: AC110-240V, 50/60Hz * Storage temperature: -10℃--- +60℃
* Standby Power: ≤ 2.0W * Storage humidity: ≤ 60％RH
* Control power: ≤ 200W * Life: ≥ 5 years
* Suitable for fans: AC/EC/DC
Product Images:

Central Air Conditioning Thermostat With Precise Temperature Control Multi System

Central Air Conditioning Thermostat With Precise Temperature Control Multi System

Central Air Conditioning Thermostat With Precise Temperature Control Multi System

Central Air Conditioning Thermostat With Precise Temperature Control Multi System

Central Air Conditioning Thermostat With Precise Temperature Control Multi System

Central Air Conditioning Thermostat With Precise Temperature Control Multi System
