Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller
Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller
Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller
Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller
Specifications
Model Number :
KF-900Z-WK
Temperature display range :
0℃ - +50℃
MOQ :
1
Delivery Time :
2-3 weeks
Rated voltage :
220V 50Hz
Payment Terms :
T/T
Price :
US$22/pcs
Standby Power :
≤2.0W
Certification :
CE, RoHS
Fixing hole distance :
60mm(standard)
Place of Origin :
China
Operating temperature :
0℃ - +50℃
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Dimension :
86×86 mm
Description
Product Overview:

KF-900Z-WK the thermostat is suitable for indoor temperature control of central air conditioning fan coil systems or air duct systems. By comparing the indoor temperature with the set temperature, it controls the opening and closing of the fan coil units, underfloor heating valves, or water valves at the end of the air conditioning system, achieving the goal of regulating indoor temperature, comfort, and energy conservation.

With support for cooling and heating modes, multi-speed fan control, and programmable timing functions, the KF-900Z-WK delivers efficient and intelligent temperature management for residential, commercial, and hotel applications. Its modern interface and clear digital display ensure simple and user-friendly operation while improving overall energy efficiency.

Key Features:
  • Support AC 110V-220V, EC 0-10V, DC 12V/24V wide voltage input.
  • Standard 86 cassette wall mounting.
  • Real-time monitor & display temperature, humidity (optional).
  • Suitable to control 2 pipes/4 pipes fan coil units, standard heating, cooling, 3-speed fan control.
  • Support WIFI remotely controlling via Smart life APP/ Tuya APP, and compatible with RS485.
  • Optional version: underfloor water-heating thermostat, underfloor electric heating thermostat (16A, 25A).
Product Specifications:
Specification Value
Dimension 86×86 mm
Temperature display range 0℃-- +50℃
Fixing hole distance 60mm(standard)
Operating temperature 0℃ --- +50℃
Wiring terminal Max 2.5 mm2 wire
Operating humidity 5％RH——90％RH (Non-condensing)
Rated voltage 220V 50Hz
Storage temperature -10℃ --- +60℃
Standby Power ≤2.0W
Storage humidity ≤60％RH

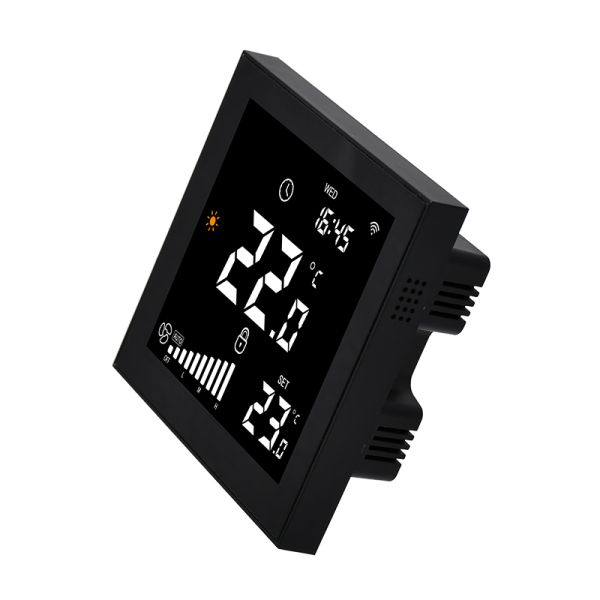

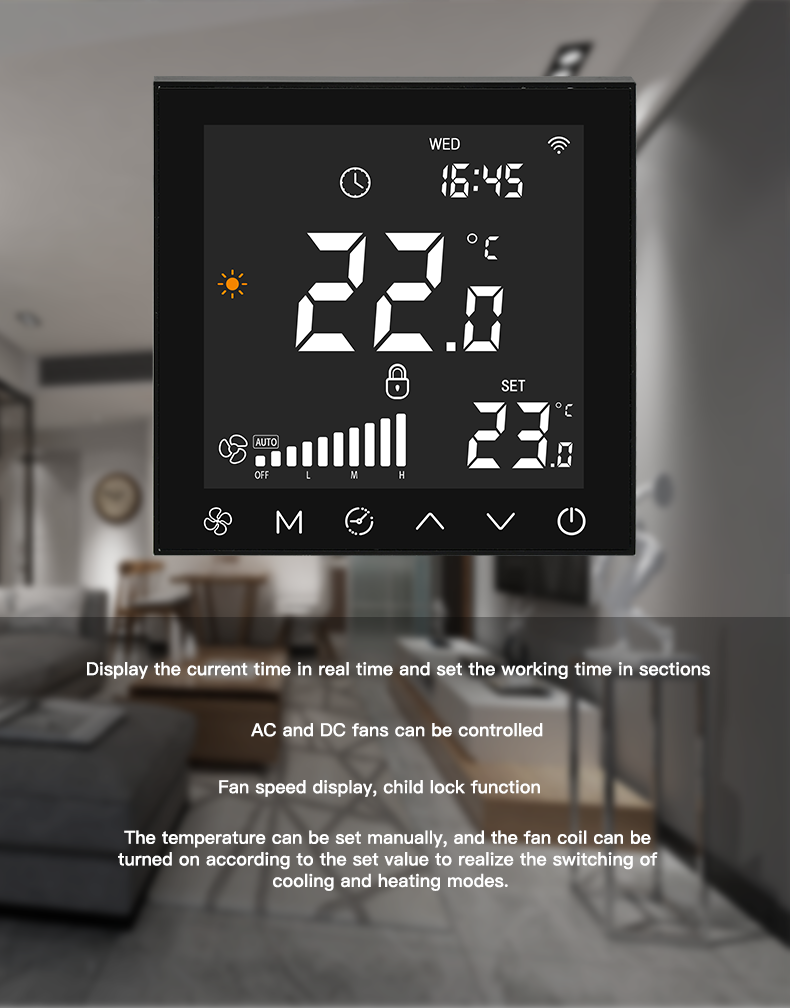

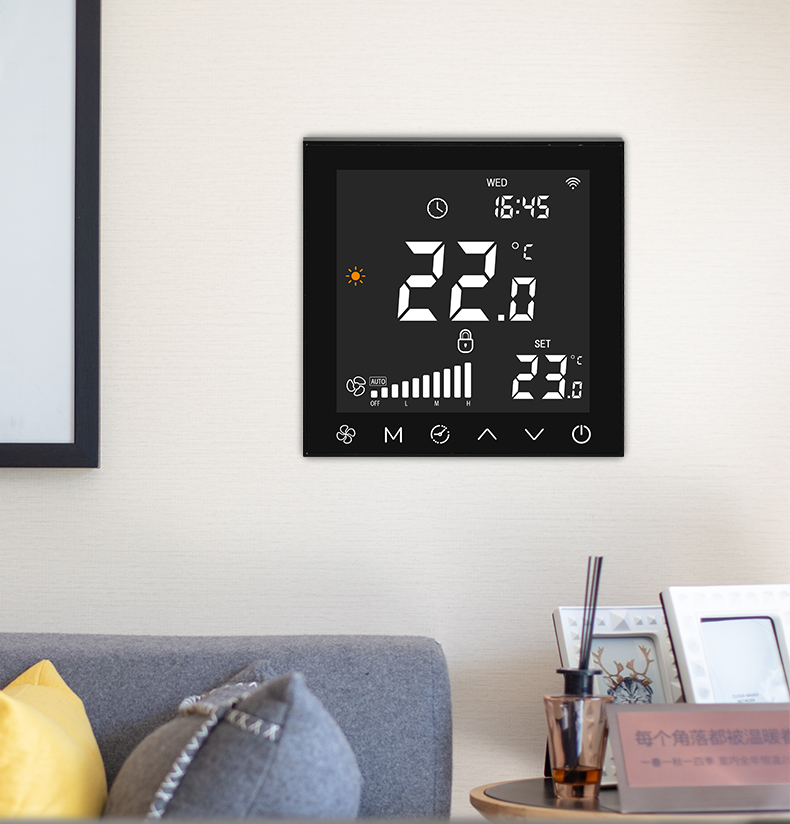

Product Images:

Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller

Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller

Wiring Diagram:
Digital FCU Smart Wifi Thermostat WIFI Remote Control Fan Coil Controller
