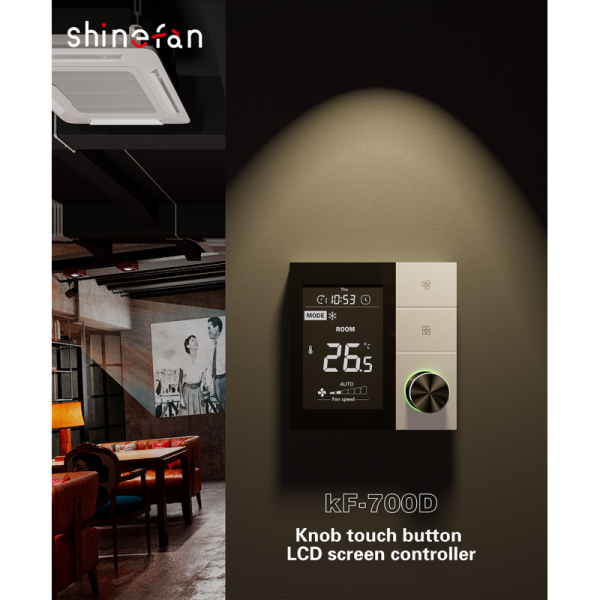

Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
Specifications
Certification :
CE, RoHS
Feature :
Flexible, Durable, Fire Resistant , Easy Installation
Color :
Black & White
Warranty :
1 Year
WIFI :
Support via Tuya app
Place of Origin :
China
After-sale Service :
Online Technical Support, Return and Replacement, Other
Project Solution Capability :
graphic design, total solution for projects
Price :
$22
Model Number :
KF-700D
Delivery Time :
2-3 weeks
Material :
Anti-flammable PC +ABS
Supply Ability :
100000pcs
Voltage :
110-230V
Payment Terms :
T/T
MOQ :
1
Brand Name :
OEM or neutral (no brand)
Description
Product Overview:

KF-700D thermostat is suitable for indoor temperature control of central air conditioning fan coil systems or air duct systems,By comparing the indoor temperature with the set temperature,it controls the opening and closing of the fan coil units, underfloor heating valves, or water valves at the end of the air conditioning system, achieving the goal of regulating indoor temperature, comfort, and energy efficiency.


Key Features:

·Support AC 110V-220V, EC 0-10V, DC 12V/24V wide voltage input.

·Standard 86 cassette wall mounting.

·Real-time monitor & display temperature, optional humidity.

·Suitable to control 2 pipes/4 pipes fan coil units, standard heating, cooling, 3-speed fan control.

·Support WIFI remotely controlling via Smart life APP/ Tuya APP, and compatible with RS485.

·Optional version: underfloor water-heating thermostat,

underfloor electric heating thermostat (16A, 25A).

Product Specification:

* Dimension: 86×86×40mm

* Storage temperature: -10℃ --- +60℃

* Fixing hole distance: 60mm(standard)

* Storage humidity: ≤60％RH

* Standby Power: ≤3.0W

* Temperature display range: 0℃ -- +50℃

* Rated voltage: 100—240VAC

* Operating temperature: 0℃ -- +50℃

* Life : ≥ 5 years

* Wiring terminal: Max 2.5 mm² wire

* Operating humidity: 5%RH——90%RH

(Non-condensing)

Product Images:
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller


Wiring Diagram:
Knob Touch Button LCD Screen 2/4 Pipes Fan Coil Unit FCU Thermostat Controller
