Fingerprint Handle Door Lock Electronic Digital Password RFID Card

Feature

1. 1. Access by Wifi ( Tuya APP )/ Bluetooth ( TTLock ), Password, Fingerprint,RFID card, mechanical key.
2. 2.TUYA (Smart life) & TT lock App versions are available to choose from.(Bluetooth/WIFI)
3. 3. Compatible with various mortise to fit 99% of doors. Lock body: 5050 double tongue/ 50mm single tongue.
4. 4. Uniquely stylish thin panel, it can fit most wooden doors.
5. 5. One-Touch-Access Biometric Fingerprint sensor on the reader.
6. 6. Strong and secure Aluminum alloy lock panel, anti-corrosion and sturdy.
7. 7. Back-up USB external power supply interface, in case the power is dead.
8. 8. Freely reversible handle, support to change the direction of door lock handle installation left or right.
9. 9. Upgraded structure with waterproof rubber, which could be use for the outside gate.

10. Products Description

11.
12.
13.
15.
16. Specification

17. Model	X8	Battery	4*AAA
    Finish	Black/Red bronze	Lock Size	240*60*20mm
    Static current	≦50uA	Dynamic current	≦180mA
    Administrators number	9	Fingerprint number	100
    Password number	100	RFID Card number	100
    Fingerprint sensor	Semiconductor	Fingerprint identification Angle	360°
    False Rejection Rate	≦0.1%	False Recognition Rate	≦0.0001%
    Reaction Time	≦0.1 Second	Power type	6V
    Emergrncy power	5VDC	Working temperature	-25℃~60℃
    Working Relative Humidity	20%~90%RH	Human vocie	Yes
    Keyboard	Touch standard 12-bit keyboard	Password Length	4-8 digits
    Phantom password	32 digits	Low voltage alarm	4.6+0.2V
    Unlock time	≦1Second	Version 2.0	TT Lock Blue tooth / Hotel
    Version 0.2	8 languages	Version P01	10 languages ( Chinese + French )
    Version 0.3	TUYA ZIGBEE	Version 0.4	TUYA Blue tooth
    Version 0.5	TT Lock WIFI	Version 1.0	TUYA WIFI

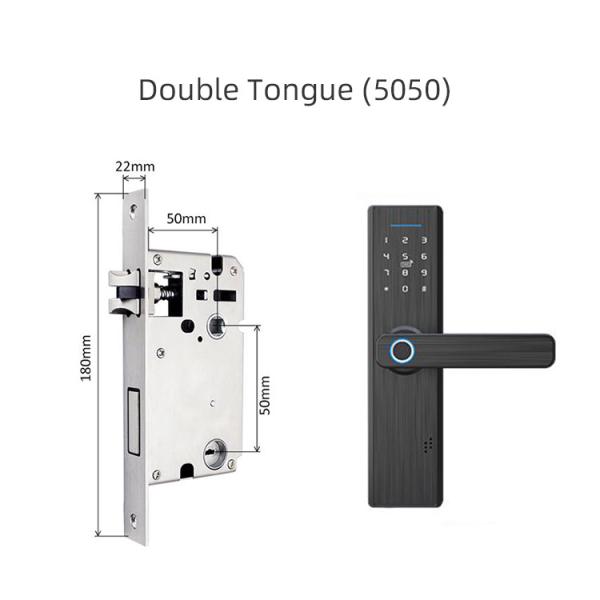

18. Mortise
19.
