130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
130BLS Series
Certification :
CE
Place of Origin :
Changzhou CHINA
MOQ :
50
Price :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
To be negotiated
Packaging Details :
To be negotiated
Warranty :
3years
Port :
Shanghai
Speed(RPM) :
3000rpm 4000rpm or customed
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, machine, robot
Type :
Micro Motor
Torque :
upto 14.5Nm
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

130BLS Series Brushless Dc Motor

Brushless Motor Specification

Item Specification
Winding type Y connection
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.025mm@450g
End play 0.025mm@450g
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Model 130BLS01A 130BLS02A
Number of phase 3
Number of pole 8
Voltage V 72 (Customizable)
No load speed rpm 3500 3500
Rated torque Nm 9.5 14.5
Rated Speed rpm 3000 3000
Rated Current A 52 78
Rated Power W 3000 4500
Length mm 190 240

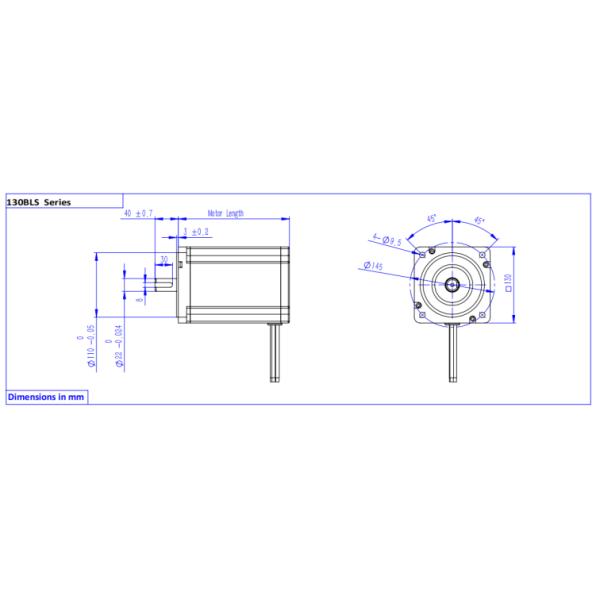

Dimensions
