STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy
Specifications
Brand Name :
stron
Model Number :
STE18/STE38
Certification :
STS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
20-45days
Packaging Details :
Carton
Protocal :
STS Standard
Waterproof :
IP54
Phase :
single phase
Accuracy :
Class 1
Display :
LCD
Working Temperature :
-25℃ ~70℃
Basic Current :
5A
Maximum Current (Imax) :
80A
Active Energy Constant :
1000imp/kWh
Frequency :
50-60Hz
Product name :
Prepaid Energy Meter
Rated Voltage :
220-240V/3*220V
Standard :
STS Standard
Warranty :
2 years
OEM :
Support
Certificate :
ISO9001; ISO14001; STS Standard
Communicate :
LORA-RF supported
Vending Software :
Support
Recharge Token :
20 digits
Battery Life :
8 years
Energy Constant :
(1000imp/kWh)/(400imp/kWh)
Measurement Accuracy :
Class 1.0
Mobile Payment Support :
M-PESA, Alipay, MTN, Airtel, etc.
Data Storage :
10 years
Anti-Tempering :
Both with magnetic field/over-opening detect
Recharge Measure :
(1. Stronpay Software; 2. 3rd-party/mobile payment)plus 3. AMI system remote recharge) Both with magnetic field/cover-opening detection; STE18-B cuts relay, STE38-G shuts valve when triggered
Overdraft Collection :
daily/monthly optional
Description

Ingress protection IP54 waterproof Prepaid Anti-Tamper Single Phase Energy Meter

STE18-A is keypad type prepaid electricity meter. It can be recharged with 20 digits recharge Token, which is generated by Stronpay vending software, then use the keypad of meter to enter the TOKEN. The credit data will be entered into the meter after the TOKEN being accepted.

This meter has excellent anti-tamper feature like terminal cover open detection sensor to help utility for revenue protection.

Main Features

  • Up to 8 years battery life
  • STS Standard
  • Real-time clock
  • Anti-Tamper Magnetic field protection
  • Ingress protection IP54 waterproof
  • Pay by mobile payment including M-PESA, Alipay, MTN, Airtel, etc.


Electrical Parameters

Nominal Voltage 230V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 5A
Maximum Current (Imax) 80A
Starting Current (Ist) 20mA
Active Energy Constant 1000imp/kWh
Measurement Accuracy Class 1.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25℃-70℃
Storage Temperature Range -40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV
Electrostatic Discharges Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II

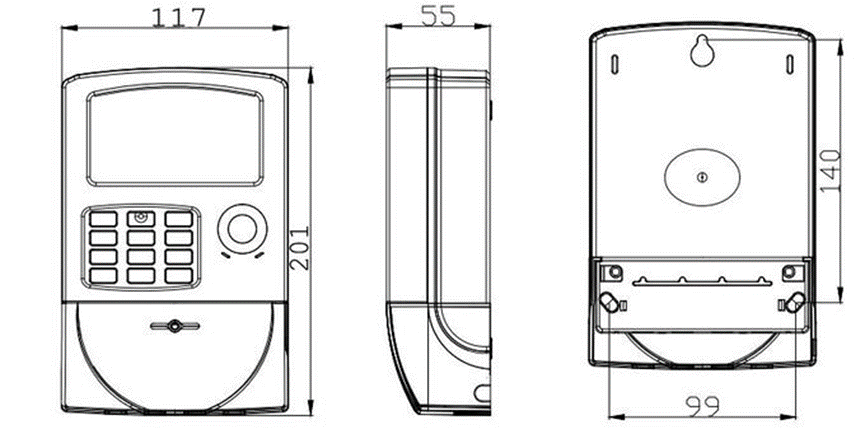

Meter Dimension

STS Standard Prepayment Energy Meter, Single Phase, Class 1.0 Accuracy

Function:

✽ Meter Recharge By Inputting TOKEN

✽ Active energy measurement

✽ MD(maximum demand measurement)

✽ Auto scroll mode display

✽ Build-in relay control

✽ Event log

✽ Low Credit Alarm

✽ Anti-Tamper Functions: Meter will automatically close the valve after detection of magnetic field and open cover event.

✽ Overdraft Collection:Electricity Overdraft can be collected day by day or month by month.

Two ways to recharge prepaid electricity meter

➯ Via local sales point or handheld mobile vending unit

<img alt="" data-cke-saved-src=" <p align=" src=" <p align=" left"="">➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.
