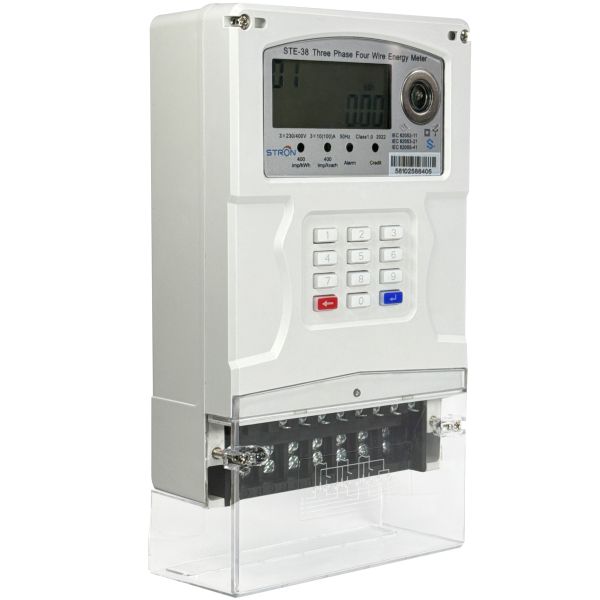

STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
Specifications
Working Voltage Range :
30%~120%Un
Active Energy Constant :
400imp/kWh
Standard :
IEC 62052-11/IEC62053-21/IEC62055-41
Accuracy Class :
Class 1.0(Active Energy)
Reactive Energy Constant :
400imp/kvarh
Nominal Frequency :
50-60Hz
Reactive Energy Accuracy: :
Class 2.0
Operation Temperature Range :
-25℃-70℃
Brand Name :
Stron
Model Number :
STE38-A
Certification :
STS
Place of Origin :
Hunan, China
MOQ :
1
Price :
USD40-USD35 per unit
Payment Terms :
L/C,T/T,Western Union,Paypal,Alipay
Supply Ability :
50,000 per month
Delivery Time :
15-20 days
Packaging Details :
Cartons
Nominal Voltage :
3×230V
Current :
10(100)A
IP Rating :
IP54
Description
STS Approved Keypad Prepaid Energy Meter for Africa Utilities Three Phase with LCD Display
Product Overview
The Prepaid Three-Phase Energy Meter is an advanced smart metering solution designed for industrial, commercial, and utility applications. It supports a pay-before-use model that effectively reduces revenue loss while improving billing efficiency and energy management. The meter complies with international metering and prepaid standards and is suitable for large-scale deployment.
Key Benefits
  • Prepaid Management: Automatic disconnection when credit is exhausted and reconnection after recharge
  • High Accuracy: Meets Class 1.0 / 0.5S accuracy requirements
  • Anti-Tamper Protection: Detection of cover opening, reverse wiring, bypass, and other abnormal conditions
  • Remote Management: Supports local and remote recharge, parameter setting, and monitoring
  • High Reliability: Industrial-grade components for harsh operating environments
Main Functions
  • Active and reactive energy measurement
  • Multi-tariff and Time-of-Use (TOU) support
  • Real-time remaining credit display
  • Historical energy consumption records
  • Event and alarm logging
  • Remote connect / disconnect control
Communication Options
  • RS485 (Modbus / DLMS optional)
  • PLC / RF (optional)
  • GPRS / 4G / NB-IoT (optional)
Applications
  • Industrial parks and factories
  • Commercial buildings and office complexes
  • Utility three-phase consumers
  • Emerging markets such as Africa, the Middle East, and South America
