Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Smart Prepaid Electricity Meter STE18G with IP54 Protection Multi Tariff Anti Tamper and Power Limit Features for Energy Management
Specifications
Brand Name :
stron
Model Number :
STE18/STE38
Certification :
STS
Place of Origin :
China
MOQ :
10
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
9999999 unit
Delivery Time :
5
Packaging Details :
0.68*0.41*0.155m
Display :
LCD
Output Voltage :
230v
Working Voltage Range :
70%~120%Un
Maximum Current (Imax) :
60A
Input Way :
Keypad
Payment Method :
Through Token
Storage Temperature :
-40℃-85℃
Nominal Frequency :
50-60Hz
Anti Tamper :
Yes
Energy Usage History :
Available
Rf Frequency Band :
433MHz / 915MHz
Alerts And Notifications :
Yes
Accuracy Class :
Class 1.0
Battery Life :
8 years
Product name :
Prepaid Energy Meter
Rated Voltage :
220-240V/3*220V
Standard :
STS Standard
Frequency :
50-60HZ
Warranty :
2 years
OEM :
Support
Certificate :
ISO9001; ISO14001; STS Standard
Communication :
LORA-RF supported
Vending Software :
Supported
Recharge Token Length :
20 digits
Protection Class :
IP54
Current Range :
(5A/80A)/(10A/100A)
Starting Current :
(20mA)/(30mA)
Energy Constant :
(1000imp/kWh)/(400imp/kWh)
Measurement Accuracy :
Class 1.0
Mobile Payment Support :
M-PESA, Alipay, MTN, Airtel, etc.
Overdraft Collection :
daily/monthly optional
Data Storage Duration :
10 years
Anti-Tampering :
Both with magnetic field/cover-opening detection; STE18-B cuts relay, STE38-G shuts valve when triggered
Recharge Method :
(1. Stronpay Software; 2. 3rd-party/mobile payment)plus 3. AMI system remote recharge)
Description

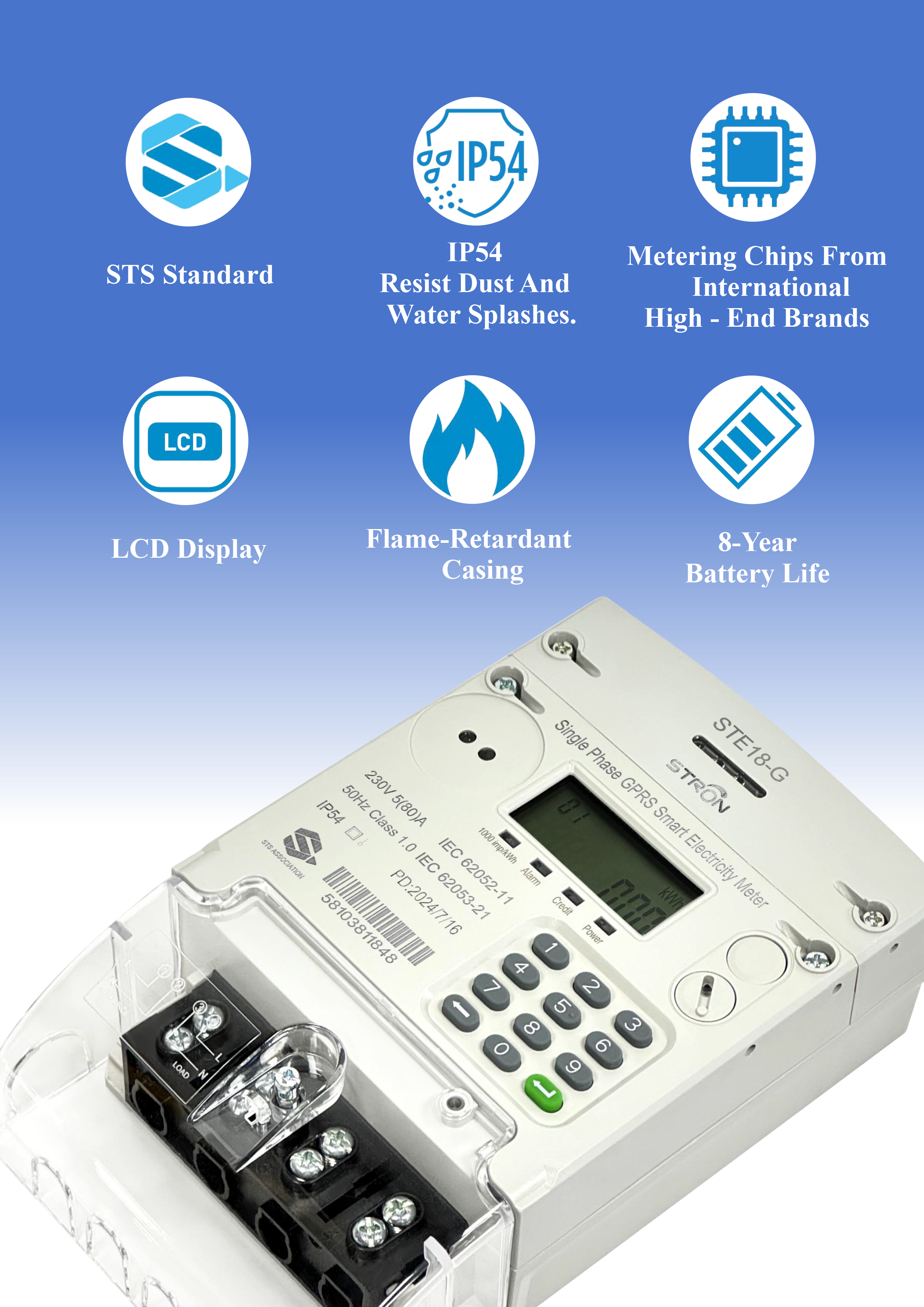

IP54 Intelligent Multi Tariff/Anti-tamper/Power-limit Prepaid Keypad Single Phase Electricity Meter
The STE18-G is engineered for advanced power management with comprehensive remote monitoring capabilities, featuring dual-mode GPRS/433MHz RF communication for real-time electricity data access through web portals, vending systems, handheld units (HHUs), or API-integrated third-party platforms.
Key Features & Capabilities
  • Multi-channel connectivity for detailed consumption analytics and usage trend tracking
  • Instant anomaly alerts for proactive energy optimization
  • Modular plug-and-play design accommodating diverse smart metering requirements
  • STS compliance for reliable data collection and network communications
  • Cost-effective deployment across PLC, RF, GPRS, or 4G LTE networks
  • Component-replaceable architecture minimizing lifecycle costs
  • Module-only upgrades without compromising system performance
  • IP54 rated for durable operation in various environmental conditions
Connectivity & Integration
This intelligent prepaid meter supports seamless integration with existing infrastructure, enabling utilities to implement efficient vending software solutions while maintaining robust anti-tamper and power-limit functionalities for secure energy distribution.
