STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
Specifications
Model Number :
STE18-B
Power Supply :
Single Phase
Place of Origin :
China,Zhuzhou
Basiccurrent :
5A
Packaging Details :
Packed in export cartons (20pcs/ctn). Customizable, with full container load data for standard shipping.
Operating Temperature Range :
-10°C to 50°C
Payment Terms :
T/T
Warranty Period :
2 Years
Active Energy Constant :
4000imp/kWh
Operation Temperature :
-25℃-70℃
Power Source :
Electricity
MOQ :
99
Delivery Time :
7 work days
Ingress Protection :
IP54 waterproof
Accuracyclass :
Class 1
Price :
USD 15
Vending Software :
Yes
Frequency :
50/60Hz
Certification :
ISO 9001 ; ISO 14001 ; STS Certificated
Input Way :
Keypad
Supply Ability :
99999
Material :
Plastic
Voltage Rating :
220-240V
Brand Name :
stron
Terminal Cover :
Transparent
Description
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional

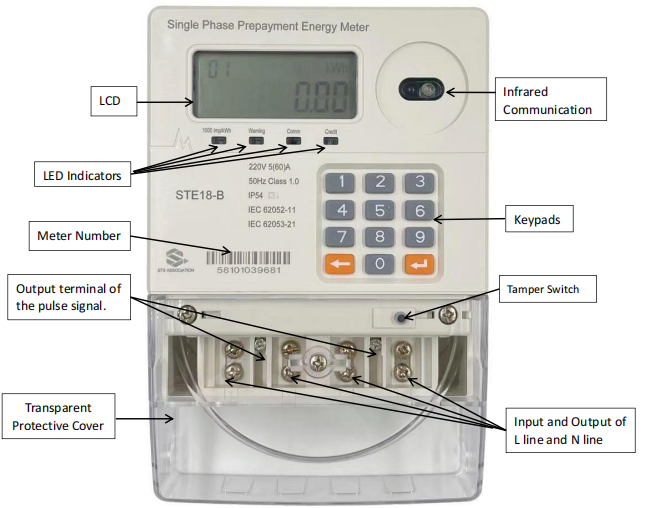

①LED indicators:
“1000imp/kWh”: Pulse light, when the meter works normally after being
connected to the load, it shows blue light, and every 1000 flashes is 1 kWh.
“Warning”: Alarming light, when the meter in the tamper state or the
balance is zero, it shows yellow light.
“Comm”: Signal light, it’s turned on when communicate with CIU or DCU
successfully.
“Credit”: When the credit balance is sufficient, it shows green light; when
the balance is 0, it shows red light.
②Tamper Switch: Tamper protection function. When the cover is opened , the
meter is in the tamper state,it shows yellow light.
③Meter ID Number: It’s a ID to distinguish meters.
④Keypads:Checking data from meter by pressing the button, and inputting
the tokens(Recharge, Clear Credit and Clear Tamper Token).
Functions

1Remote Communication:

·The single phase energy meter is STS standard smart meter, which requires
users input a 20-digit Token to top up electricity, clear credit, and clear tamper.
·The single phase energy meter supports RF wireless communication, using
CIU for meter reading, the distance is about 350m; using DCU for batch meter
reading, the distance can reach 1000m.
·The tokens could be sent into meter by CIU remotely, the Admin also could
login AMI system to send tokens to meter by DCU automatically.
2 Anti-Tamper:
When the transparent protective cover is opened, the tamper switch is
triggered, the valve will be closed and the "Warning" indicator will show yellow
light, This function plays the role of power theft protection.
3 Parameter settings:
There is an infrared interface on the meter, Admin could use this setting special
parameters for the meter.
4 Credit Alarming:
The "Warning" indicator flashes red light when the meter credit reaches the
threshold, the "Warning" indicator shows yellow light and the“Credit”shows
red light when the credit is zero.
STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional

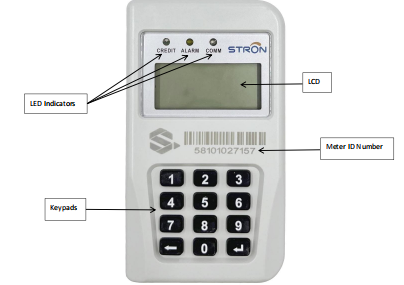

①LED indicators:
“Credit”: When the credit balance is sufficient, it shows green light; when
the balance is 0, it shows red light.
“Alarm”: Warning light, when the meter in the tamper state or the balance
is zero, it shows yellow light.
“Comm”: Signal light, it’s turned on when communicate with CIU or DCU
successfully
②Meter Number: It’s a ID of CIU, same with the matched meter.
③Keypads:Checking data from meter with short codes by pressing the
button , and inputting the tokens(Recharge, Clear Credit and Clear Tamper
Token).
Functions
①Remote Communication
-The single phase energy meter supports RF wireless communication, using
CIU for meter reading, the distance is about 400m.
-The tokens could be sent into meter by CIU remotely to recharge, clear
tamper and clear credit.
②Power Supply
-4pcs AA battery/USB data cable.
