Specifications
MOQ :
1
Delivery Time :
5
Maximum Current (Imax) :
80A
Accuracy Class :
Class 1.0
Vending Software :
Supported
Energy Constant :
1000imp/kWh
Data Storage Duration :
10 years
Price :
negotiated
Output Voltage :
230v
Anti-Tampering :
Both with magnetic field/cover-opening detection; STE18-B cuts relay, STE38-G shuts valve when triggered
Certification :
STS
Rated Voltage :
230V
Mobile Payment Support :
M-PESA, Alipay, MTN, Airtel, etc.
Anti Tamper :
Yes
OEM/ODM :
Support
Model Number :
STE18-G
Input Way :
Keypad
Alerts And Notifications :
Yes
Certificate :
ISO9001; ISO14001; STS Standard
Payment Terms :
T/T
Display :
LCD
Minimum operating voltage :
50V
Warranty :
2 years
Working Voltage Range :
23%~120%Un
Battery Life :
8 years
Recharge Token Length :
20 digits
Storage Temperature :
-40℃-85℃
Standard :
STS Standard
Place of Origin :
China
Nominal Frequency :
50-60Hz
Supply Ability :
9999999 unit
Product name :
Prepaid Smart Single Phase Keypad GPRS Energy Meter
Current Range :
5A/80A
Brand Name :
stron
Payment Method :
Through Token
Starting Current :
20mA
Energy Usage History :
Available
Communication :
LORA-RF supported
Measurement Accuracy :
Class 1.0
Overdraft Collection :
daily/monthly optional

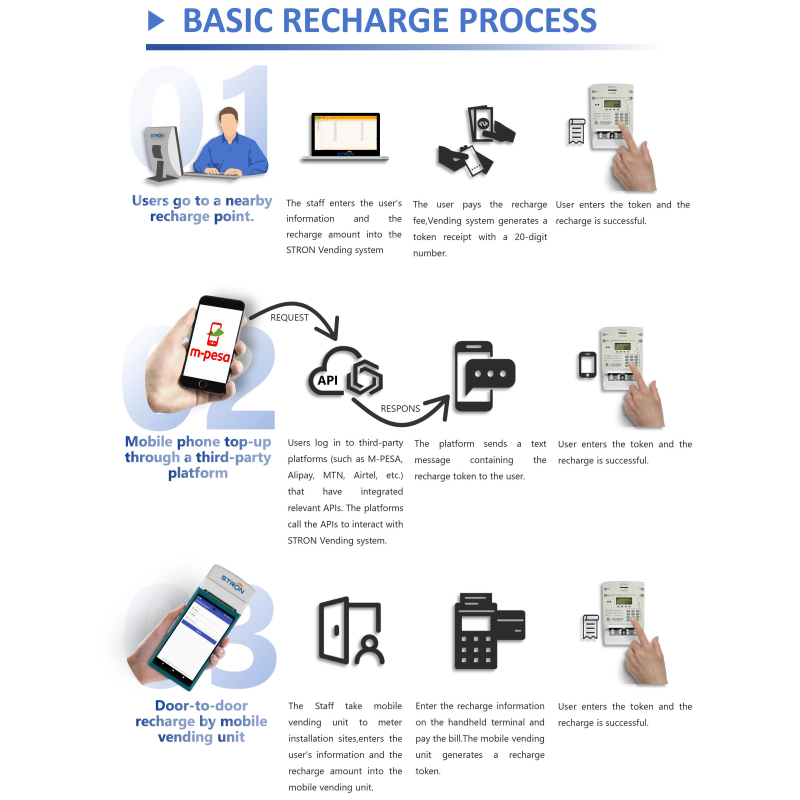

Recharge Method :
(1. Stronpay Software; 2. 3rd-party/mobile payment)plus 3. AMI system remote recharge)
Frequency :
50-60HZ
Packaging Details :
0.68*0.41*0.155m
Protection Class :
IP54
Description
IP54 STS Smart Prepaid Keypad GPRS/4G Single Phase Electricity Meter
Advanced Power Management & Remote Monitoring

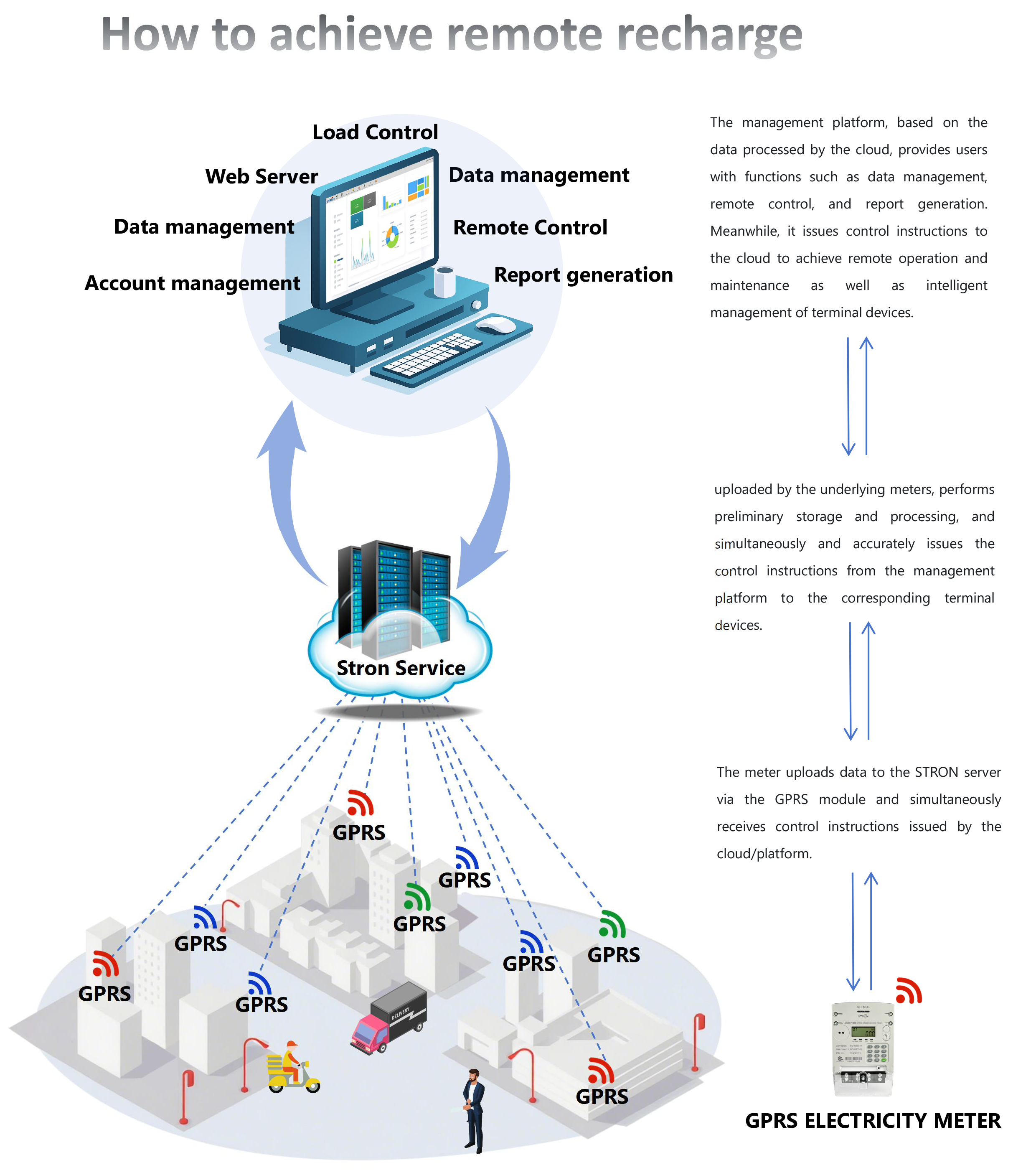

The STE18-G is engineered for sophisticated power management with seamless remote monitoring capabilities. It integrates GPRS/4G communication to enable real-time electricity data access via web portals, vending systems, handheld units (HHUs), or API-integrated third-party platforms.
This multi-channel connectivity supports comprehensive consumption analytics, usage trend tracking, and instant anomaly alerts for proactive energy optimization.
Modular Design & Infrastructure Flexibility
Featuring a modular plug-and-play design, this meter accommodates diverse smart metering requirements while maintaining STS compliance for data collection and network communications. Utilities can deploy cost-effective solutions across 4G LTE networks based on existing infrastructure.
The component-replaceable architecture minimizes lifecycle costs by enabling module-only upgrades without compromising system performance.
Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems
Comprehensive Application Scope
This versatile smart meter serves multiple applications across various sectors:
  • Residential Communities: Enables landlords to remotely monitor tenant electricity usage for precise billing
  • Commercial Enterprises: Ideal for supermarkets and offices needing to track energy consumption trends for cost optimization
  • Rural Electrification: Adapts to remote areas via RF communication for reliable metering in regions with limited network coverage
  • Municipal Utilities: Supports city-wide smart grid deployments for real-time data collection
  • Industrial Sub-metering: Monitors department-level energy use in factories and workshops
Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems

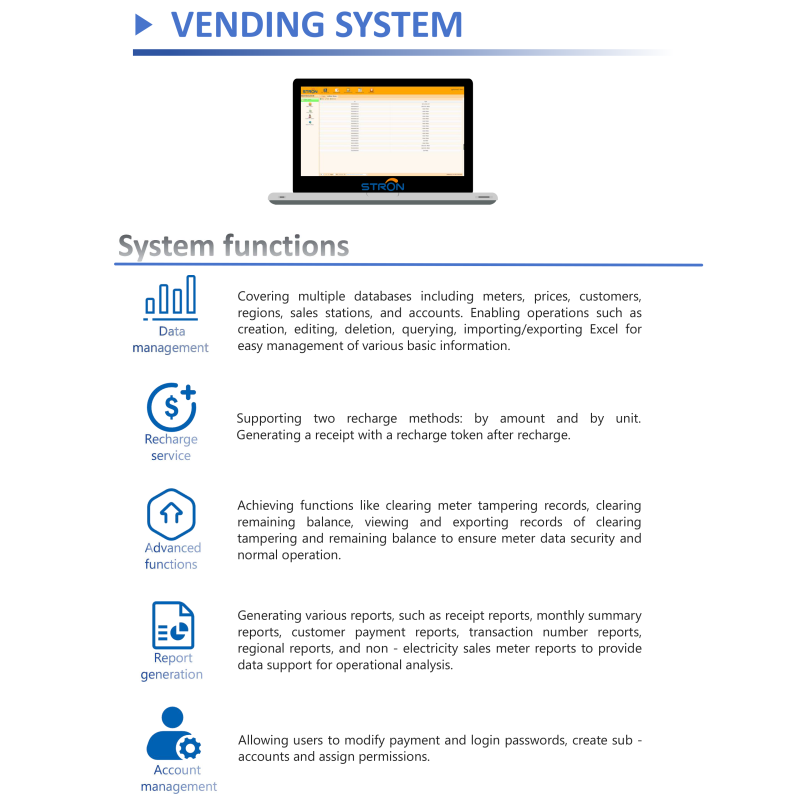

StronPay Vending System Features
The StronPay vending system offers comprehensive management capabilities for various meter types including electric, water, and gas meters.
  • Secure Database Management: Microsoft SQL Server backend ensures robust data security
  • Operational Security: Account permission management guarantees secure system operations
  • API Integration: Supporting APIs facilitate function expansion and meet personalized needs across different business scenarios
Smart Prepaid Electricity Meter Featuring Single Phase Design GPRS 4G Connectivity and Remote Monitoring for Power Management Systems
