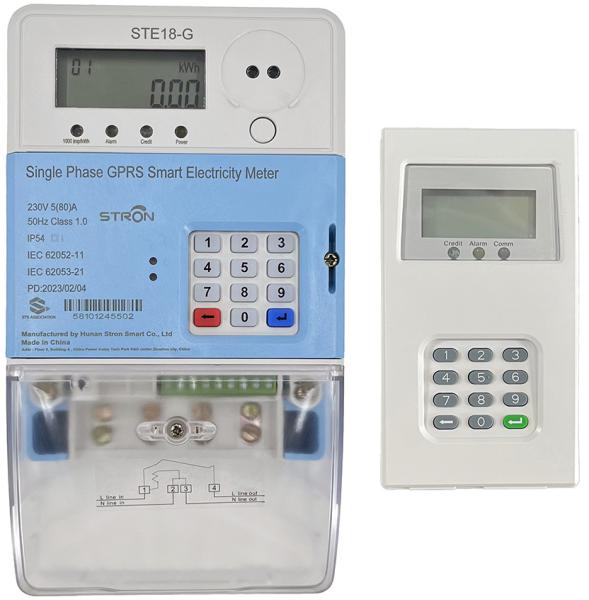

Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Specifications
Brand Name :
stron
Model Number :
STE18/STE38
Certification :
STS
Place of Origin :
China
MOQ :
10
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
20-45days
Packaging Details :
Carton
Protocal :
STS Standard
Phase :
single phase
Basic Current :
5A
Maximum Current :
80A
Nominal Voltage :
230V
Accuracy :
Class 1
Waterproof :
IP54
Active Energy Constant :
1000imp/kWh
Communication :
LORA-RF supported
Working Temperature :
-25~70℃
Storage Temperature :
-40℃-85℃
Application: :
Counting the electricity consumption
Product name :
Prepaid Energy Meter
Rated Voltage :
220-240V/3*220V
Standard :
STS Standard
Display :
LCD
Frequency :
50-60HZ
Warranty :
2 years
OEM :
Support
Certificate :
ISO9001; ISO14001; STS Standard
Vending Software :
Supported
Recharge Token Length :
20 digits
Protection Class :
IP54
Battery Life :
8 years
Current Range :
(5A/80A)/(10A/100A)
Starting Current :
(20mA)/(30mA)
Energy Constant :
(1000imp/kWh)/(400imp/kWh)
Measurement Accuracy :
Class 1.0
Mobile Payment Support :
M-PESA, Alipay, MTN, Airtel, etc.
Overdraft Collection :
daily/monthly optional
Data Storage Duration :
10 years
Anti-Tampering :
Both with magnetic field/cover-opening detection; STE18-B cuts relay, STE38-G shuts valve when triggered
Recharge Method :
(1. Stronpay Software; 2. 3rd-party/mobile payment)plus 3. AMI system remote recharge)
Description

50HZ Prepaid Split Keypad Low Credit Alarm Token Type Single Phase Energy Meter with LORA-RF module

Features:

✽ Users purchases energy by the vending network to get a serial number (TOKEN), the Token contains 20 digits and is encrypted.

✽ TOU tariffs function can help operators to set different prices by inputting corresponding Token or IR adaptor.

✽ The smart meter can be set the maximum power everyday to limit the energy usage.

✽ Stronpay vending software is able to integrated with mobile payment including M-PESA, Alipay, MTN, Airtel, etc

✽ It has excellent event log like recharge record, cover open record, magnetic detection record and credit clear record.

✽ The meter can be set Max overdraft when the credit is zero.

Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Application:
Counting the electricity consumption of users over a period of time.

Electrical Parameters

Nominal Voltage:230V

Working Voltage Range:70%~120%Un

Nominal Frequency:50-60Hz

Basic Current (Ib):5A

Maximum Current (Imax):80A

Starting Current (Ist):20mA

Active Energy Constant:1000imp/kWh

Measurement Accuracy:Class 1.0

Power Consumption in Voltage Circuit:<2W <8VA

Power Consumption in Current Circuit:<1VA

Operation Temperature Range:-25℃-70℃

Storage Temperature Range:-40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV

Electrostatic Discharges

 Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II

Meter Dimension

Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type

Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Load control function Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.
Event recording Meter can record the tamper event, open cover event, purchase event and TOKENS.
Self-testing Meter has a self-test function, it can test LCD and relay etc. and report the results directly
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
TOU Tariff TOU Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Electricity Overdraft can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code

Vending Process
➯ Via local sales point or handheld mobile vending unit
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
➪ Via mobile phone
The advantages to recharge with mobile payment:
✽ Users can top up electricity by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽ It helps utilities for Revenue protection and consumer
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
➪ Recharge remotely via DCU and LORA-RF or PLC module
Prepaid Split Keypad Single Phase Energy Meter Low Credit Alarm Token Type
