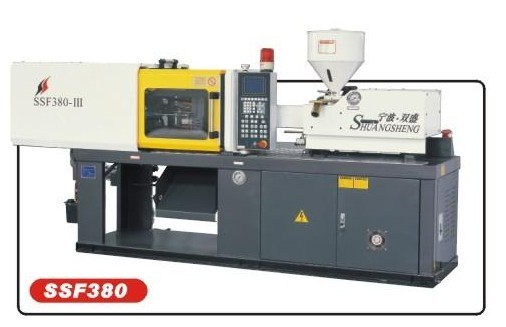

SSF380 Small Sized Automatic plastic injection molding machine
SSF380 Small Sized Automatic plastic injection molding machine
SSF380 Small Sized Automatic plastic injection molding machine
SSF380 Small Sized Automatic plastic injection molding machine
SSF380 Small Sized Automatic plastic injection molding machine
SSF380 Small Sized Automatic plastic injection molding machine
Specifications
Place of Origin :
China
Brand Name :
SSF380
Model Number :
SSF380
MOQ :
1 SET
Packaging Details :
Plywood or Containers
Delivery Time :
40days
Payment Terms :
30% deposit and balanced before shipment
Supply Ability :
100 sets/ Month
Description
Parameters of SSF380 plastic machine
Parameter Unit Parameter Value (SSF380)
Screw diameter mm A B
27 30
Screw L/D ratio L/D 18.4 16.5
shot volumn (theoretical) Cm3 48 58
injection weight(PS) g 44 53
plasticizing capacity g/s 4.3 5.9
injection rate g/s 35 43
injection pressure Mpa 187 151
screw speed rmp 170
clamp force KN 380
open stroke mm 235
space between bars (W*H) mm 240*240
max mould height mm 270
min mould height mm 80
ejector stroke mm 60
ejector force KN 17.5
ejector number PC 1
mould align diameter mm 80
max pump pressure Mpa 14
pump motor power KW 4
heating power KW 3.2
machine dimension m 2.9*1.0*1.4
machine weight T 1.35
hopper capacity Kg 14
oil tank capacity L 90
