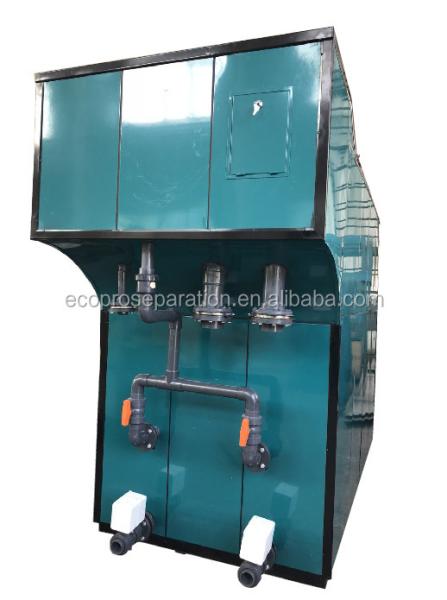

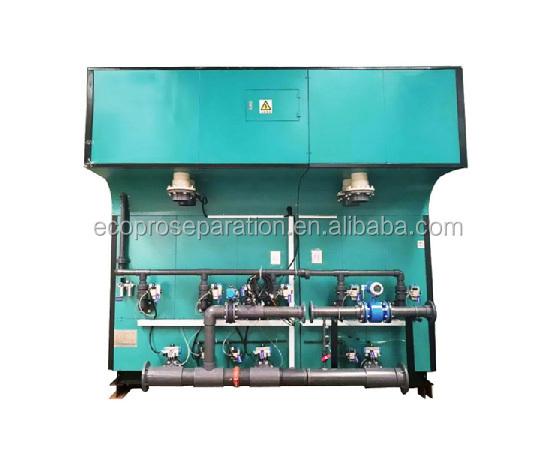

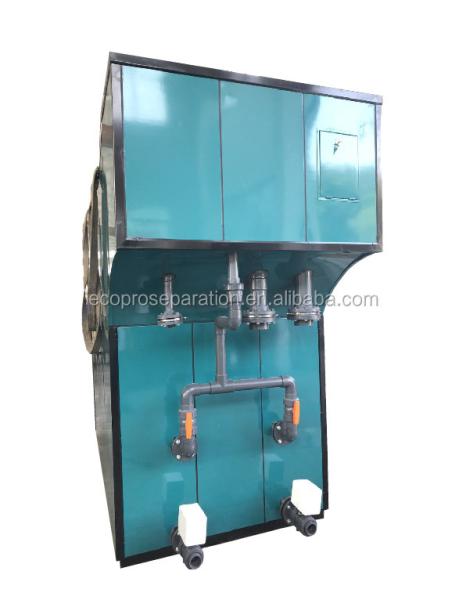

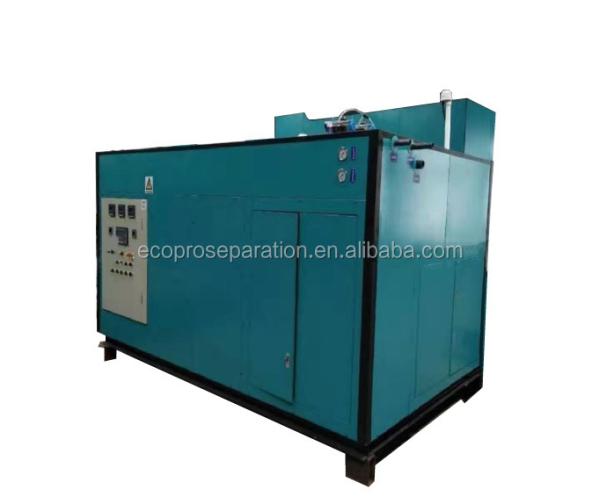

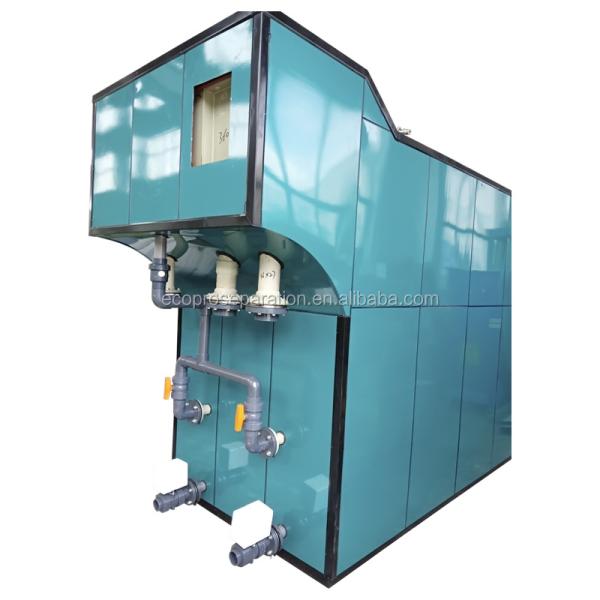

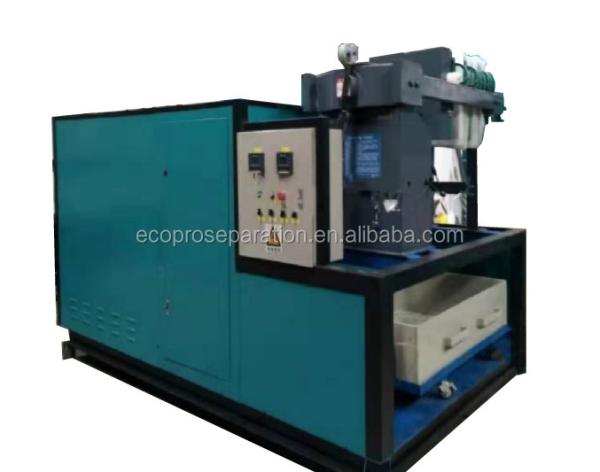

Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ECOPRO
MOQ :
1
Material :
PVC+A5 Steel+SUS 304
Size :
3400*1500*2600mm
Power :
15
Capacity :
5m3/h
Electrode Weight :
1900kgs
Empty Weight :
1900kgs
Operation Weight :
7800kgs
Voltage Range :
220V-480VAC
Anode Material :
Aluminum, Iron
Current Adjustment :
Automatic
Voltage Adjustment :
Automatic
Protection Features :
Phase loss, Overload, Overcurrent, Overvoltage, Zero voltage
Control Signal Terminal :
European detachable terminals
Coagulant Type :
Fe(OH)2, Fe(OH)3
Oxidation Function :
Nascent oxygen [O]
Description


Electrocoagulation Ec Equipment Electrical Flocculation System

Electrocoagulation System Introduction
Electrocoagulation system is a waste water treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material usually uses aluminum, iron and other readily available and inexpensive metals.
Electrocoagulation System Fabricate Process
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment

Electrocoagulation System Work ProcessIndustrial Electrocoagulation System 5m3/h for Wastewater TreatmentElectrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e
Anodizing reaction: 2OH-→2[O]+2e→02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.


Electrocoagulation System Features1. Wide adaptability of power supply: 220V-480VAC range is available, power supply controller has no power phase sequence problem
2. Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.); control signal terminal block uses European detachable terminals, the control loop can be re-wired when replaced.
3. Automatic control: can automatically detect the ion state in the water to adjust the current, voltage
4. Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment. H and OH are also produced by the natural dissociation of water. There is no need for dynamic aeration to generate agglomerated organic and inorganic substances, SS, which occurs continuously in the vicinity of the plates, and the high SS can be smoothly removed.


Electrical Flocculation System Work Site for Reference
Industrial Electrocoagulation System 5m3/h for Wastewater Treatment

Industrial Electrocoagulation System 5m3/h for Wastewater Treatment
