Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ECOPRO
MOQ :
1
Price :
$36,897
Productivity :
5m3/h
Weight :
1900 kg
Processing Type :
filtration
Power :
1kW
Voltage :
220V, 380V, 110V
Capacity :
5m3/h
Electrode Weight :
1900 kg
Empty Weight :
1900 kg
Operation Weight :
7800 kg
Core Components :
motor
Power Supply Range :
220V-480VAC
Anode Material :
aluminum, iron
Current Adjustment :
automatic
Voltage Adjustment :
automatic
Energy Saving Feature :
no polymer required
Description
Product Description
Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a waste water treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material usually uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process


Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment


Electrocoagulation System Work Process
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment

Electrocoagulation System Principle
Electrochemical reaction: Fe→Fe2++2e
Anodizing reaction: 2OH-→2[O]+2e→02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.


Electrocoagulation System Features


1. Wide adaptability of power supply: 220V-480VAC range is available.
2. Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.);
3. Automatic control: can automatically detect the ion state in the water to adjust the current, voltage
4. Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

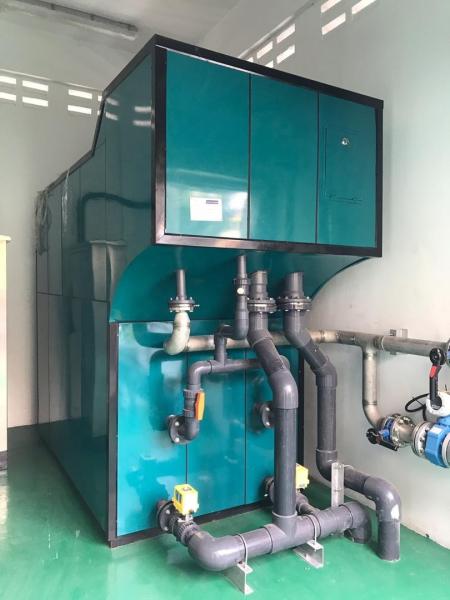

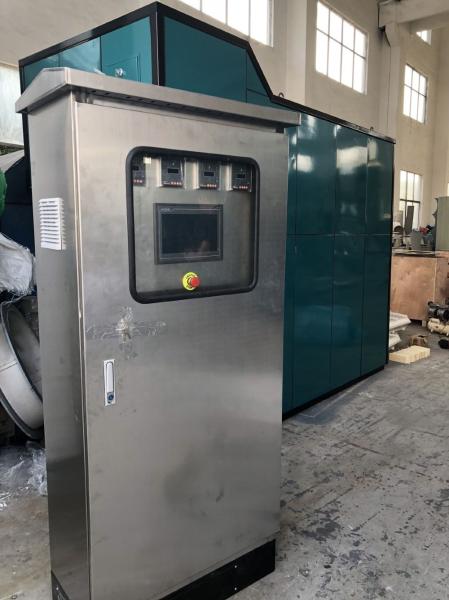

Electrical Flocculation System Work Site for Reference
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
Smart Automation 5m3/H Industrial Electrocoagulation System For Wastewater Treatment
