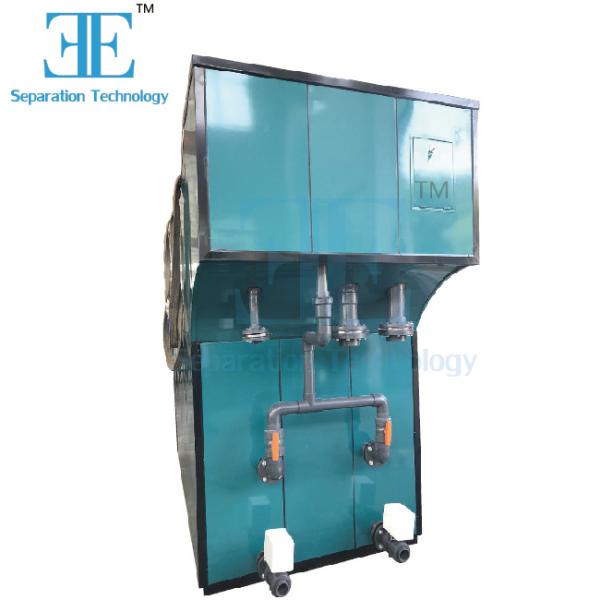

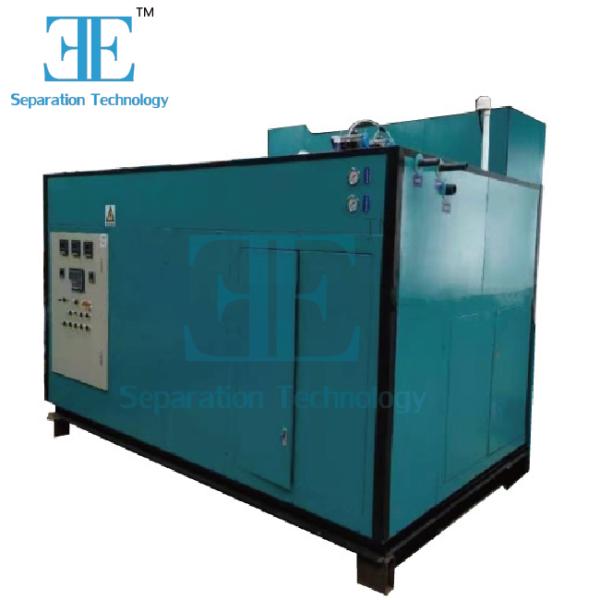

Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Adjust Voltage Electrocoagulation System For Wastewater Treatment 1m3/H Capacity
Specifications
Place of Origin :
China
Brand Name :
ECOPRO
MOQ :
1
Capacity :
0.5m3/h
Electrode Weight :
650kg
Empty Weight :
400kg
Operation Weight :
1500kg
Material :
PVC+A5 Steel+SUS 304
Size :
1000*650*1300mm
Power :
3
Treating Capacity :
1m3/h
Power Consumption :
3kw/h
Dimension :
1000*650*1500mm
Voltage Range :
220V-480VAC
Core Components :
motor
Description
Product Description
Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a waste water treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material usually uses aluminum, iron and other readily available and inexpensive metals.

Treating Capacity
1m3/h
Power Consumption
3kw/h
Dimension
1000*650*1500mm
Electrode Weight
650kg
Empty Weight
400kg
Operation Weight
1500kg


Electrocoagulation System Principle
Electrochemical reaction: Fe→Fe2++2e
Anodizing reaction: 2OH-→2[O]+2e→02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.


Electrocoagulation System Features


1. Wide adaptability of power supply: 220V-480VAC range is available.
2. Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.);
3. Automatic control: can automatically detect the ion state in the water to adjust the current, voltage
4. Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

Company Introduction
Shanghai Ecopro Environmental Engineering Co.Ltd.the flagship company was established in 2017,focus on one-stop Water & Wastewater treatment equipments and Separation Service Environment. As a professional environmental engineering,since its inception, we always adhere to the spirit of craftsmanship, to provide the industry with equipment and services and systematic solutions, products include static screen, rotary drum screen ,polymer dosing system, DAF system, electrochemistry system,screw press , plate filter press ,sludge dryer, Mutag Biochip, sodium hypochlorite generator and different kinds of pumps and so on .
