300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HRF
Packaging Details :
Naked Package High-quality metal slitter machine sheet metal slitter metal slit line coil slitting machine
Supply Ability :
10 Set/Sets per Month
Price :
$50,000.00/sets 1-1 sets
Cutting Width (mm) :
500 - 1500 mm
Material Thickness(mm) :
1 - 8 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Cutting Speed(m/min) :
1 - 40 mm
No. of Slitting Lines :
1 - 50
Coil Weight (T) :
25 T
Condition :
New
Voltage :
450V
Rated Power :
300KW
Dimension(L*W*H) :
28X8X2M
Weight :
5000
Year :
2020
Key Selling Points :
High Rigidity
Warranty :
1 Year
Applicable Industries :
Construction works , Building Material Shops, Machinery Repair Shops
Showroom Location :
Italy, Brazil
Type :
Pipe Cutting Machine
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
slitting machine
coil width :
max 2000mm
coil thickness :
1--8mm
line speed :
40m/min
way of control :
590 controller
Package :
Standard packing
Delivery :
80-100 days
name :
slitting machine for steel coil steel slitting machine
Port :
shanghai High-quality metal slitter machine sheet metal slitter metal slit line coil slitting machine
Description
Company Profile
300KW Metal Slitting Machine Sheet Metal Coil Slitter
300KW Metal Slitting Machine Sheet Metal Coil Slitter
Products Description

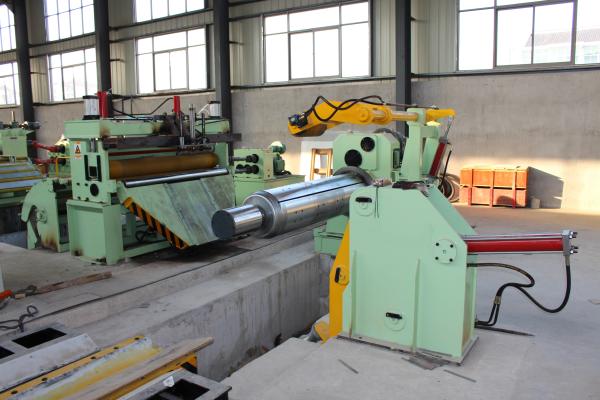

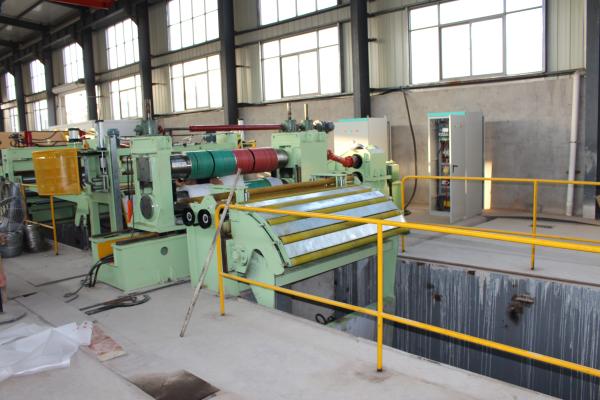

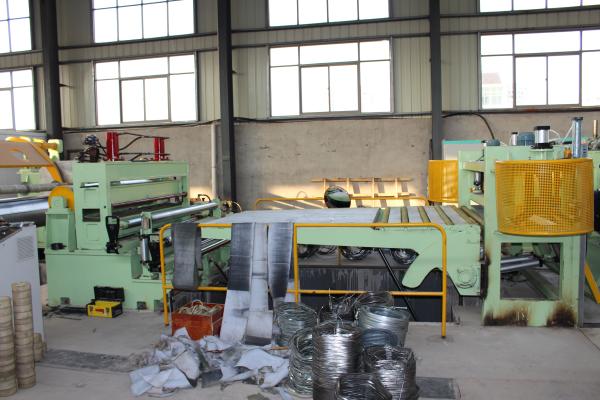

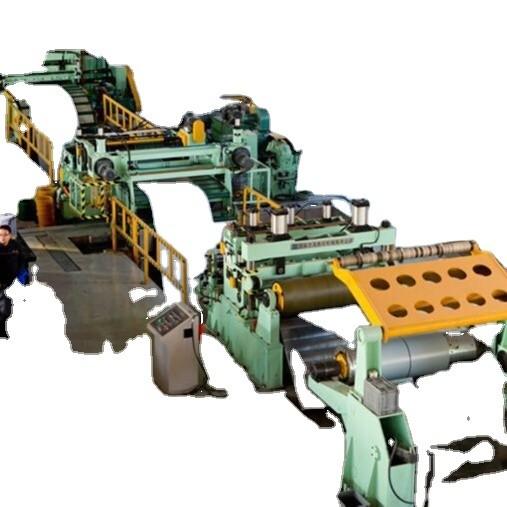

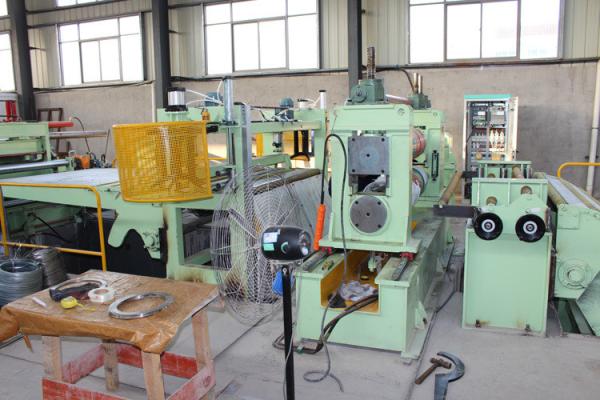

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.
300KW Metal Slitting Machine Sheet Metal Coil Slitter
Product Paramenters



Steel
coil parameters
Material
HR,CRS and GI
Tensile strength
δb≤450Mpa,δS≤260Mpa
Steel thickness
0.3-3mm
Steel width
500-1600
Steel coil I.D
φ480-520 mm
Steel coil O.D
φ1600mm(Max)
Steel coil weight
15T

Slitter parameters
knife pivot diameter
Ф200 mm
Knife pivot material
40Cr
Blades specification
Φ200mmXφ340mmX15mm
Blade material
6CrW2Si
Slit parameter
Max slit quantity
5 pcs (3mm) 25 pcs(0.3mm)
Width precision
≤±0.05mm/2M
Mini slit strips width
20mm



Other parameters
Power
380V/50Hz/3Ph
Line speed
0-100m/min
Capacity
210 Kw
Whole line Dimension
25m(L)X8m(W)
Operator needed
1 mechanical engineer ,2 common workers
Line direction
From right to left(Face to machine)
Machine color
White grey
