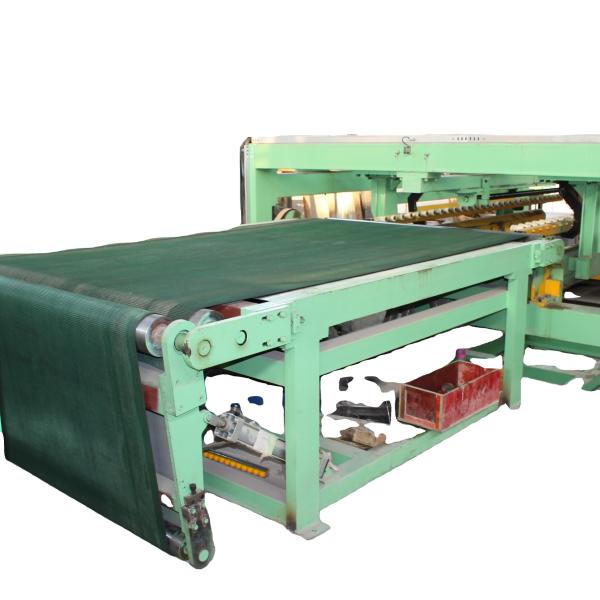

Rotary Shear Steel HR Coil Cutting Machine Cut To Length
Rotary Shear Steel HR Coil Cutting Machine Cut To Length
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HRF
Packaging Details :
Standard packing Steel Coil Rotary Shear Cut To Length Line Shearing Machine Combined Cut-to-length And Slitting Line
Supply Ability :
15 Set/Sets per Year 1-6x2200mm China supplier steel coil leveling cutt-to-length Lin
Price :
$46,000.00/sets 1-1 sets
Cutting Width (mm) :
500 - 1250 mm
Material Thickness(mm) :
0.3 - 2 mm
Cutting Speed(m/min) :
1 - 120 m/min
Video outgoing-inspection :
Not Available
Machinery Test Report :
Not Available
Marketing Type :
New Product 2021
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Coil Weight (T) :
20T
Leveling Precision(±mm/m) :
0.1 ±mm/m
Condition :
Used
Voltage :
380V
Rated Power :
200KW
Dimension(L*W*H) :
28X8X2m
Weight :
5000
Year :
2021
Key Selling Points :
high productivity
Warranty :
1 Year
Applicable Industries :
Construction works , Building Material Shops, Manufacturing Plant
Showroom Location :
Egypt, Turkey, Italy, Spain, Ukraine
After-sales Service Provided :
Cut To Length Line Machine For Steel Coils
coil thickness :
0.3-2mm
coil width :
2200mm
max coil weight :
25T
cutting precision :
+/-1mm
max cutting length :
12m
cutting machine power :
15kw
No of levellers :
13 rolls
levellers diameter :
140mm
Product name :
high efficient automatic cut to length line
Port :
Shanghai Steel Coil Rotary Shear Cut To Length Line Shearing Machine Combined Cut-to-length And Slitting Line
Description
Rotary Shear Steel HR Coil Cutting Machine Cut To Length
Rotary Shear Steel HR Coil Cutting Machine Cut To Length
This series line is used for HR coil(0.5mm-28mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length. Composed of coil car, double support uncoiler, hydraulic pressing and guiding, shovel head, pre-leveler, finish leveler, cut to length machine, stacker, accompany electric control system, hydraulic system, etc. as well as pendulum middle plate, steering device.
Type
3×1600
6×2000
8×2000
10×2200
12×2200
16×2200
20×2500
25×2500

Thickness Range(mm)
0.3-3
1-6
2-8
2-10
3-12
4-16
6-20
8-25

Width Range(mm)
1600
2000
2000
2200
2200
2200
2500
2500

Cutting Length(mm)
300-4000
500-6000
600-8000
600-10000
800-12000
800-12000
800-12000
800-12000

Cutting precision(mm)
±0.5
±0.5
±1
±1
±1
±1
±1
±1

Roller Numbers
15
15
13
13
11
11
9
9

Roller Diameter(mm)
Ф85
Ф140
Ф155
Ф160
Ф180
Ф200
Ф230
Ф260
Rotary Shear Steel HR Coil Cutting Machine Cut To Length
Product Name
0.23~0.3)*1000mm Slitting machine
Condition
new
Size
25m*6m*2m
Color
customized
Purpose
Slitting coils
Package
Standard packing
MQQ
1 set
Delivery
80-100 days
Shipment
Shanghai port
Payment Mode
T/T, L/C
Payment Condition
30% deposit in advance. Balance paid by TT before shipping.
Supply Capacity
3 sets per year
