Aluminum Foil Slitting And Rewinding Equipment
Aluminum Foil Slitting And Rewinding Equipment
Specifications
Brand Name :
runding
Model Number :
FQA-1300A
Place of Origin :
China
MOQ :
1 unit
Price :
CNY：138000-188000/unit
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
30-60 days
Packaging Details :
Pearl cotton film or wooden box
Max width mother roll :
1100mm
Min width finished roll :
30mm
Max diameter mother roll :
1200mm
Max diameter finished roll :
1000mm
Max mother roll weight :
1200KG
Speed of slitting :
0-350/min
Slitting capability :
80-200gsm
Rewinding way :
Central&surface
Precision :
±0.2mm
Speed regulation control :
Frequency converter
Power input :
380V,50HZ,3PH
Dimension :
3600*3300*1900
Total weight :
4000KG
Description

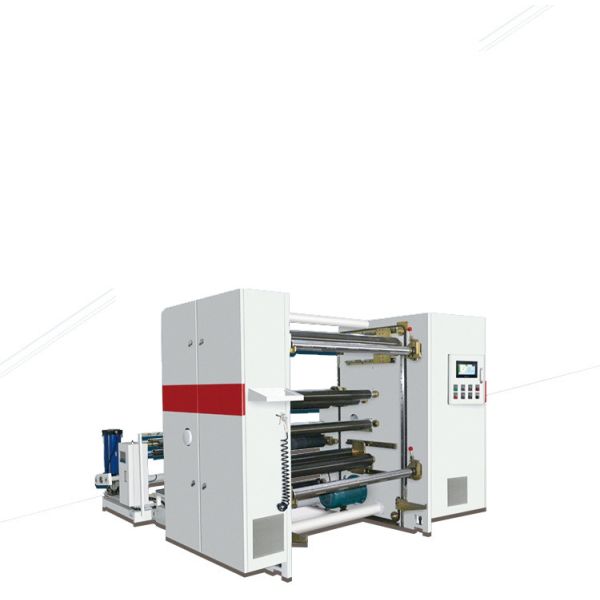

Aluminum Foil Slitting And Rewinding Equipment

1100 Type Fully Automatic High-Speed Slitting Machine Roll Paper, Aluminum Foil Slitting And Rewinding Machine

Use；

The WZFQ-1300A Slitter Rewinding Machine suitable for Printing&Packaging Industry, converting jumbo roll to narrow roll(The minimum width 30mm , the maximum diameter 1000mm).Jumbo roll material, such as cardboard paper ,kraft paper,coated paper etc slitting & rewinding.

Characteristic:

  1. PLC controlling system make the machine having an intelligent operation. Machine using three sets motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface is very smooth.
  2. Machine use frequency converter adjust speed, keep stable running when speed go up.

  1. Automatic count meter, automatic alarm and stop when the roll reach the setting diameter or length.
  2. Rewinding shaft use two pcs air shaft structure,finished rewinding rolls automatic unloading device.
  3. Round blade knife slitting the material, blade knife freely adjustment by manual,and waste material take out by fan
  4. Web material edge position automatic correct(EPC system)
  5. Automatic cylinder shaft mother roll unwinding structure/hydraulic shaft-less mother roll unwinding structure(optional)
  6. Technical parameter
    Max width mother roll 1300mm
    Min width finished roll 30mm
    Max diameter mother roll 1400mm
    Max diameter finished roll 1000mm
    Max mother roll weight 1200KG
    Speed of slitting 0-300/min
    Slitting capability 80-200gsm
    Rewinding way Central&surface
    Precision ±0.2mm
    Speed regulation control Frequency converter
    Power input 380V,50HZ,3PH
    Dimension 3600*3300*1900
    Total weight

    4000KG

  7. WHY CHOOSE US:

    1. We have over 15 years of experience

    2. We are a manufacturer exporting to over 15 countries

    3. Strong production capacity to ensure timely delivery

    4. We guarantee product quality and pre-sales and after-sales service

    Packaging and Transportation

    Packaging details: packed with pearl cotton and plastic film, some items are packed in wooden boxes

    Delivery time: Within 30-60 days after payment

    Frequently asked Question

    Q 1: Where is your factory located? How can I get there?

    Answer: Our factory is located in Wenzhou, Zhejiang Province, China. The nearest airport is Wenzhou Airport, and we can pick you up at the airport

    40 minutes by plane from Shanghai and 4 hours by train

    It takes 2 hours by plane from Guangzhou

    Q 2: Does your company provide installation services for foreign machines

    Answer: We have a strong service team that can provide foreign installation services and engineer training services for all machines purchased from our company. But the buyer needs to provide airfare, food, hotel expenses, etc

    Q3: How does your company provide after-sales service

    Answer: The warranty period for all machines purchased from our company is one year (excluding any human error). Lifetime maintenance and 24-hour hotline
