Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems
Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems
Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems
Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems
Specifications
Brand Name :
HORIZON
Model Number :
scaffold screw jacks
Certification :
SGS
Place of Origin :
CHINA
MOQ :
2000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
20000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Q235 steel pipe
OEM :
Available
finishing :
zinc-plate, hdg, painted
Standard :
BS1139
Size :
dia38mm, dia 33mm, or as request
Application :
scaffolding height adjustament
Base plate :
140 x 140 x 5mm
Casting nut :
0.6kg
Description

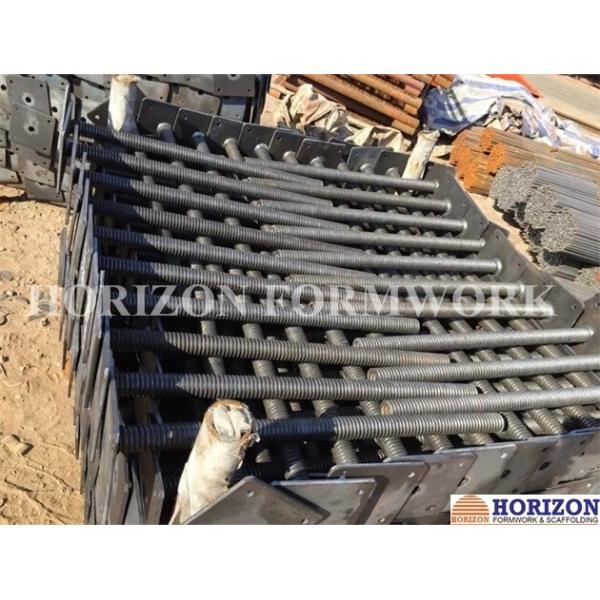

Scaffold Screw Jacks Made of Solid Steel Rod For Leveling Ringlock Systems

Heavy duty solid steel base jacks with 140 x 140 mm base plate and U head of 150 x 120 x 50 mm to support horizontal beams.

Can fit all types of scaffold systems, such as frames, ringlock, or cuplock systems.

Base plate is welded to the tubular screw stem. The base plate has a hole in each corner for securing to mudsill.

A notch / cut in the threads of the screw stem is available to prevent the nut from coming off and to keep the screw jack from being over-extended.

Provides up to 450mm of height adjustability.

Various finishing are available: painting, e-galvanized, hot-dip galvanized.

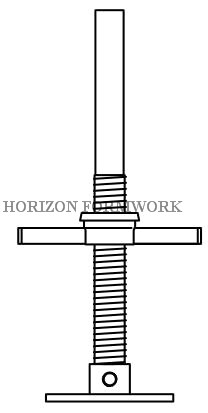

Scaffold Base Jack:

Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems Screw /Tube size (mm) Base plate(mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 120 x 120 x 5 0.25 2.75 (3.72)
Ø32(solid) x 400 (600) 120 x 120 x 5 0.30 3.10 (4.20)
Ø34(solid) x 400 (600) 120 x 120 x 5 0.40 3.50 (4.76)
Ø34(hollow) x 4 x 400 (600) 150 x 150 x 6 0.55 2.80 (3.39)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 6 0.50 2.90 (3.60)
Ø48(hollow) x 4 (5) x 600 150 x 150 x 8 1.00 5.00 (5.60)
Ø48(hollow) x 4 (5) x 820 150 x 150 x 8 1.00 6.00 (6.80)

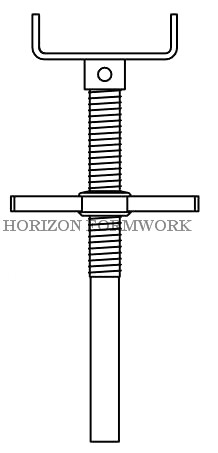

U-head Jack:

Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems Screw / Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 150 x 120 x 50 x 5 0.25 3.36 (4.33)
Ø32(solid) x 400 (600) 150 x 120 x 50 x 5 0.30 3.70 (4.81)
Ø34(solid) x 400 (600) 150 x 120 x 50 x 5 0.40 4.10 (5.37)
Ø34(hollow) x 4 x 400 (600) 150 x 120 x 50 x 6 0.55 2.91 (3.74)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 50 x 6 0.50 3.61 (4.28)
Ø48(hollow) x 4 (5) x 600 180 x 150 x 50 x 8 1.00 6.24 (6.82)
Ø48(hollow) x 4 (5) x 820 180 x 150 x 50 x 8 1.00 7.20 (8.00)

Adjustable Screw Jack Made Of Solid Steel Rod For Leveling Ringlock Systems
