2.5m to 4.0m Work Range Scaffolding Steel Prop by Internal and External Pipe
2.5m to 4.0m Work Range Scaffolding Steel Prop by Internal and External Pipe
2.5m to 4.0m Work Range Scaffolding Steel Prop by Internal and External Pipe
2.5m to 4.0m Work Range Scaffolding Steel Prop by Internal and External Pipe
Specifications
Brand Name :
HORIZON
Model Number :
steel prop 4.0m
Certification :
SGS
Place of Origin :
CHINA
MOQ :
2000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
20000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Q235 / Q345 steel pipe
OEM :
Available
finishing :
painting, zinc-plate, hdg
Size :
2.5m-4.0m
Application :
for salb formwork and post shoring
Pipe dia :
inner 48mm, outer 60 mm or 57mm
Description

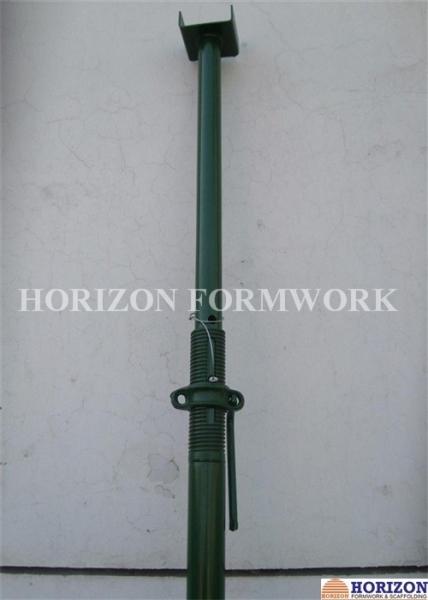

Steel Prop with Working Range From 2.5m to 4.0m, by Internal and External Pipe

The Steel props are designed for the shoring of horizontal form work as well as for post shoring the new poured slab until it reachs required strengh. They are used in many building sites, with high efficiency and ease of use.

Various sizes available:

Height Range

Outer tube(mm)

Inner tube (mm)

Thickness (mm)

 Adjusting device
1.7m-3.0m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.0m-3.6m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.2m-4.0m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.5m-4.5m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
3.0m-5.5m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread


Advantages:
1. High quality steel tubes ensures its high loading capacity.
2. Various finishing are available, such as: hot-dipped galvanization, electric-galvanization, powder coating and painting.
3. Special design of minimum 10cm space prevents the operator from hurting his hands between the inner and outer tube.
4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
5. With the same size of the base plates, the prop heads (fork heads) are easily to insert in the inner tube and outer tube.
