Telescopic Push-Pull Props To Support and Plumb Wall Formwork Panels
Telescopic Push-Pull Props To Support and Plumb Wall Formwork Panels
Telescopic Push-Pull Props To Support and Plumb Wall Formwork Panels
Telescopic Push-Pull Props To Support and Plumb Wall Formwork Panels
Specifications
Brand Name :
HORIZON
Model Number :
PUSH-PULL PROP
Place of Origin :
CHINA
MOQ :
500 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per week
Delivery Time :
20-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Steel pipe Q235
OEM :
Available
Application :
to support and plumb wall formwork
Type :
push-pull prop
Length :
1.3m - 10.0mm or customized sizes
Finishing :
paint, galvanized, powder coating
Adjusting length :
by telescoping device
Tech. process :
punching, welding
Description

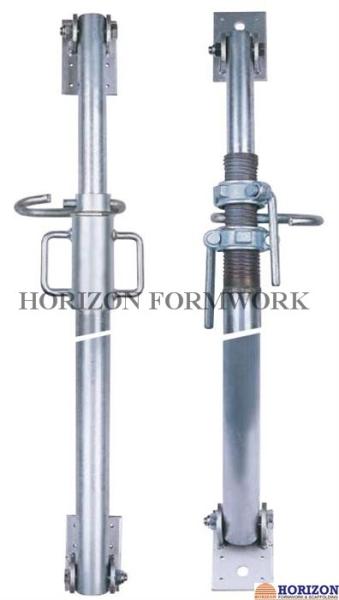

Telescopic Push-Pull Props To Support and Plumb Wall Formwork Panels


Due to the high strength capability, the push-pull props are used in construction of houses and high-rise buildings.

The telescopic push-pull prop, equipped with swivel end plates, can bear both vertical and horizontal loads. It is fixed on a wall formwork panel with top end and on ground with base end. By adjusting the handle, the wall form panel is pushed or pulled in to place and then supported in that position.

Wide range sizes of push-pull props are available extensible from 1.0m to 5.0m. Some bigger sizes are also available by special design for large building constructions (up to 10m).

Working length (m) Outer tube (mm) Inner tube (mm) Weight (Kg)
1.0-1.8 57 48.3 9.0
1.7-3.0 57 48.3 12.0
2.0-3.6 57 48.3 13.5
2.5-4.5 57 48.3 15.8
3.0-5.0 57 48.3 16.9


Telescopic Push-Pull Props To Support and Plumb Wall Formwork Panels
