Specifications
Model NO. :
JK-PB1A16S15P
Battery Strings :
8s-16s
Charge/Discharge :
150A
Balance Current :
1A
Transport Package :
Carton Packaging
Specification :
1.1KG
Trademark :
JIKONG
Origin :
China
HS Code :
9032896085
Production Capacity :
500000 Pieces / Year
MOQ :
2 Pieces
Price :
US $50.29-62 / Piec
Description

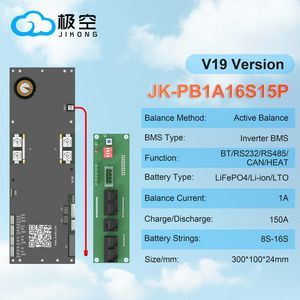

PRODUCT MODEL
JK-PB1A16S15P
Number of Battery Strings(Li-ion)
7S-16S
Number of Battery Strings(Lifepo4)
8S-16S
Number of Battery Strings{LTO)
14S-16S
Balance Method
Active Balance(Full State On)
Balance Current
1A
Conductive Resistance in Main Circuit
0.45mΩ
Continuous Charge Current
150A
Continuous Discharge Current
150A
Maximum Discharge Current
300A
Over Charge Protection Current(ADJ)
10-150A
Other Interfaces(Defaut)
RS485/232/CAN
Proteetive plate size
300*100*24mm
Supply Voltage
20-70V
Standby power consumption
12mW
Operating temperature
-30-70°C
Maximum number ofcollection strings
16S
Wiring Output
Common Port
Display interface
Support
Heating interface
Support
Upper computer function
Support
Bluetooth Function
Support for Android/lOS/Harmony
Charging overwoltage, overeurrent protection
Support
Discharge uder woltage, over currentprotection
Support
Shont eireuit protection
Support
Battery parallel current limiting function
Support
Single Cell Voltage Range
1-5V
Voltage Acquistion Accuracy
±3mV
Over Charge Protection Voltage
1.2-4.4V Adjustable
Over Charge Relese Voltage
1.2-4.4V Adjustable
Over Current Detect Delay
2~600S Adjustable
Over Discharge Protection Voltage
1.2-4.4V Adjustable
Over Discharge Relese Voltage
1.2-4.4V Adjustable
Quantity of Temperature Detection
4
Temp Protection
Yes
Short Circuit protection
Yes
Coulomb Counter
Yes
Parallel charging current limiting
10A
Address dial swith
4
DRY Contact
2
