Specifications
Certification :
CE, RoHS
MOQ :
1
Price :
1000
Model NO. :
JP-240ST
Automation :
Manual
Cleaning Precision :
Ultra-Precision Industrial Cleaning
Control :
Artificial
Principle :
Physical and Chemical Cleaning
Material :
SUS304
Specification :
410*255*310mm
Frequency :
40,000Hz
Tank capacity :
53L with Roller
Timer :
1-99 mins
Tank size :
550*400*350mm
Unit size :
730*580*770mm
Ultrasonic power :
480W~1200W
Heating power :
3000W
Power supply :
AC 100 ~ 120V, 60Hz ; AC 220 ~ 240V, 50Hz
Description
Fast Degreasing Fast Shipping 78L Industrial Parts Ultrasonic Cleaning Machine
Features of Ultrasonic Industrial Parts Cleaning Machine

Ultrasonic Parts Cleaners & Degreasers dramatically lower the cost of your parts cleaning process with a higher degree of efficacy compared to traditional methods.

Parts Cleaning with Skymen's Ultrasonic Cleaners: Lower Cost, Higher Efficacy

  • Slash your cleaning labor and materials costs
  • Reduce your Work In Process time
  • Deep penetrating cleansing action, powerful yet gentle
  • Far superior to hand cleaning
  • Clean difficult to reach areas like small blind holes, joints, threads, cavities, and crevices
  • Thoroughly clean all hard surfaces: metal, plastic, glass
  • Use environmentally safe cleaning fluids

Traditional cleaning processes are usually limited by the physical geometry of the part. Intricate parts with small holes, crevices, joints, and other hard to reach areas require specialized cleaning equipment or may be ignored, leaving contaminants behind. For processes like electroplating, electrophoretic deposition, or powder coating a perfectly clean substrate is a prerequisite which cannot be compromised.

During ultrasonic cleaning the part is completely immersed in the cleaning bath and all surfaces in contact with the liquid are cleaned. This results in uniform, micron level cleansing action over the entire substrate preventing spotty electroplating or electrophoretic adhesion.

Choosing the right combination keeping the above factors in mind can be challenging. Our vast experience across numerous industries and cleaning requirements will help you identify the ultrasonic cleaner that is best suited to your industrial application. Call us and we will quickly identify the right combination and even suggest accessories that will enhance your cleaning process.

Why You Need an Ultrasonic Cleaning Machine

Traditional parts cleaning or degreasing in the machine shop or the factory floor is a time consuming, labor intensive process that relies on a mixture of solvents, chemicals, and mechanical scrubbing action to remove dirt, grease, cutting and lubricating fluids, rust, salt deposits, polishing pastes, oil, loose burrs, and lapping abrasives from parts. These traditional cleaning methods have a dramatic impact on the overall cost of the maintenance, refurbishment, or manufacturing process.

Ultrasonic Cleaning is an elegant method to ensure your cleaning costs are brought down to manageable levels in these hyper-competitive, margin squeezed days. Ultrasonic cleaners work on the principle of agitating a suitable cleaning solution with high frequency ultrasonic waves that create thousands of tiny cavitation bubbles. These bubbles implode releasing a great deal of energy which in turn dislodges dirt and contaminants from any surface in contact with the liquid.

Skymen's ultrasonic cleaners cover the entire range of ultrasonic cleaning equipment with suitable models to fit every need. Choosing the right combination of ultrasonic cleaner and cleaning chemistry can be a challenge. There are several gotchas that you need to watch out for. This is where we come in. Our vast experience across industries will help in guiding you towards the most cost effective solution that will match your budget without compromising on your cleaning needs. Call us and we will help you make you the right choice quickly.

How It Works

Traditional cleaning processes are usually limited by the physical geometry of the part. Intricate parts with small holes, crevices, joints, and other hard to reach areas require specialized cleaning equipment or may be ignored, leaving contaminants behind. For processes like electroplating, electrophoretic deposition, or powder coating a perfectly clean substrate is a prerequisite which cannot be compromised.

During ultrasonic cleaning the part is completely immersed in the cleaning bath and all surfaces in contact with the liquid are cleaned. This results in uniform, micron level cleansing action over the entire substrate preventing spotty electroplating or electrophoretic adhesion.

Choosing the right combination keeping the above factors in mind can be challenging. Our vast experience across numerous industries and cleaning requirements will help you identify the ultrasonic cleaner that is best suited to your industrial application. Call us and we will quickly identify the right combination and even suggest accessories that will enhance your cleaning process.

Specifications - Model JP-240ST
Model JP-240ST Frequency 40,000Hz
Tank capacity 53L with Roller Timer 1-99 mins
Tank size 550*400*350mm Unit size 730*580*770mm
Box packing 900x670x940mm Function Power Adjustable/Draining
Ultrasonic power 480W~1200W Heating power 3000W
Packing Wood case G.W. 95kg
POWER SUPPLY: AC 100 ~ 120V, 60Hz ; AC 220 ~ 240V, 50Hz
Other Recommendations

If tank size of this ultrasonic cleaning tank is not suitable for your spare parts, we have other big ultrasonic cleaning tank in store. And we can design and produce any special function ultrasonic cleaning machine you need.

Fast Degreasing Fast Shipping 78L Industrial Parts Ultrasonic Cleaning Machine

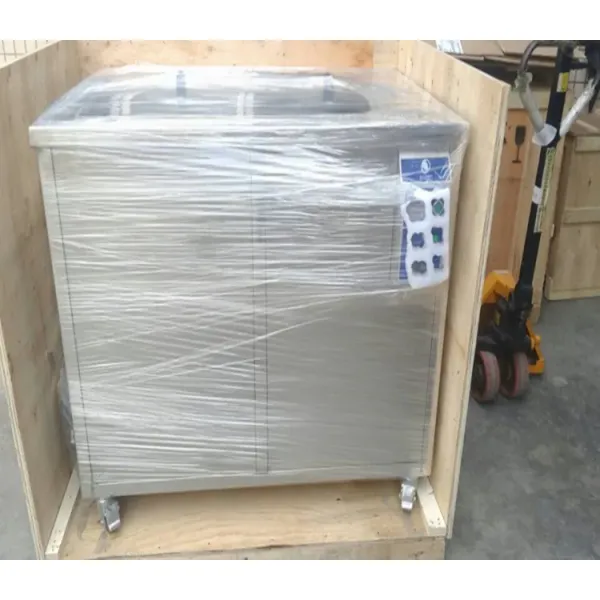

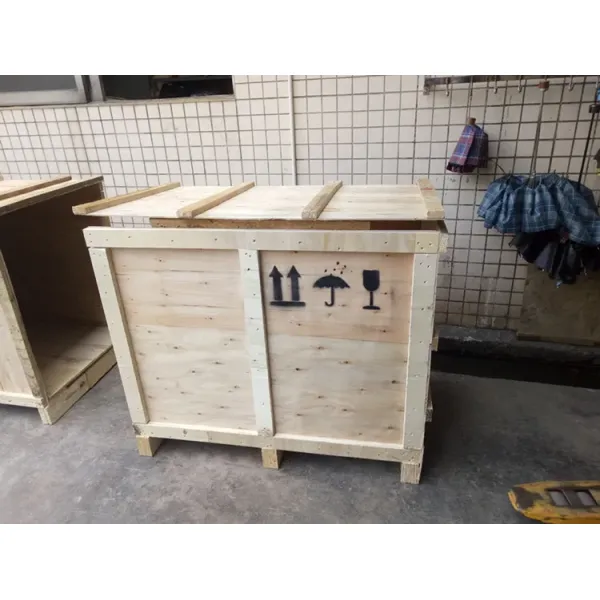

Packing Information and Delivery
Fast Degreasing Fast Shipping 78L Industrial Parts Ultrasonic Cleaning Machine
Skymen Advantage

We have been in this industry for 10 years and we are supplying machines to all seller all over the world. All distributor is welcome for win-win cooperation.

We have passes ISO, High Tech Company, CE, RoHS, FCC, National Medical Instrument Approval

Fast Degreasing Fast Shipping 78L Industrial Parts Ultrasonic Cleaning Machine
