Industrial Ultrasonic Cleaner 8500L Capacity for Auto Parts Cleaning

Specifications

Certification :

CE, RoHS, FCC

MOQ :

Price :

38000

Frequency :

40kHz/28kHz

Power :

0-57600W

Heating Power :

69000W

Net Weight :

5000kg

Gross Weight :

5300kg

Capacity :

8300L

Tank Size :

2500*2000*1700mm

Unit Size :

300*250*240cm

Package Size :

310*260*250cm

Material :

Stainless Steel SUS304

Tank Thickness :

3mm

Transducer Count :

1152pcs

Temperature Range :

Room temperature ~ 95°C

Basket Load :

2000KG

Generator Power :

1800W

Description

Skymen China Supplier Ultrasonic Cleaner Big Tank Volume for large workpiece.

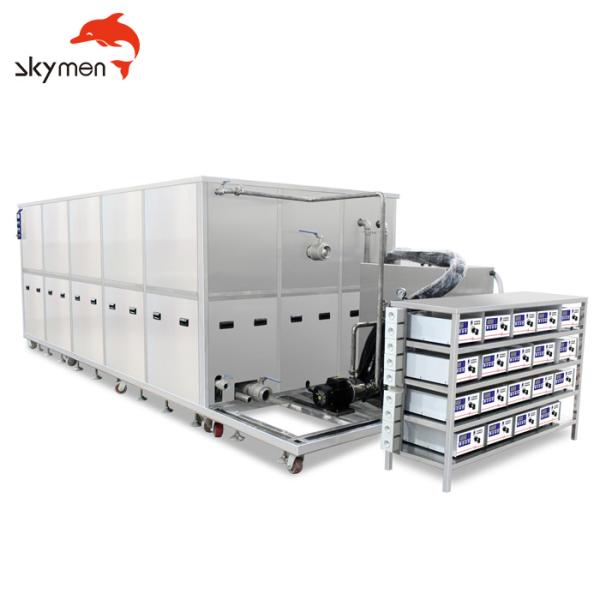

Industrial Ultrasonic Cleaner 8500L Capacity for Auto Parts Cleaning

Detailed Specification of this machine:

1	Model	JP-11152ST
2	Parameter	Function	Ultrasonic cleaning
		Ultrasonic Frequency	28/40kHz (other frequency can be customized)
		Tank Material	SUS 304 (SUS 316 can be customized)
		Thickness of tank	3mm
		Inner tank dimension	250020001700mm
		Tank Capacity	8500L
		Transducer	1152pcs
		Ultrasonic Power	57600W
		Heating Power	69000W
		Time setting of Ultrasonic	0~99 hours
		Temperature setting	Room temperature ~ 95°C adjustable
		Drain value	Available
		Water inlet/outlet	Available
		Generator	32 sets
		Generator power control	1800W
		Generator shelf	Available
		Basket	Available
		Basket load	2000KG
3	Packing	Overall size	300250240cm
		Packing size	310260250cm

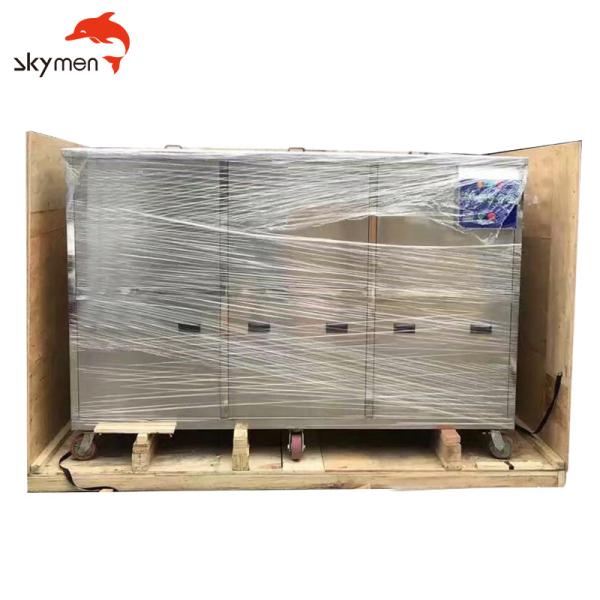

		Packing detail	By wooden case(No logs, free of fumigation)
		N.W/G.W	5000KG/5300KG
4	Power supply	380V 3 phase; 220V 3 pahse; 415V; 600V
5	Warranty	1 year warranty for spare parts, all life technical support
6	Certificate	CE, RoHS; FCC, REACH
7	Lead time	20~30 working days after deposit

7	Optional functions	Filtration cycle system	Available; capture dirty water, recycle clean water
		Lifting system for basket	Available; take the basket up and down
		Dunking system	Available; Speed up cleaning
		Bubbling	Available; need to connect air compressor
		Electrolysis	Available; For cleaning more complex structure mold
		Cooling system	Available; To cool down inflammable and explosive
		Constant temperature	Available;
		Roller barrel	Available; for clean coins and big quantity parts
		Anti-explosion electric box	Available;
		Deionized(DI) water	Available
		Double/Multi frequency	Available; 28/40/20/68/80/132KHz
		Other funtions	Negotiate via email

Packing & Delivery

Parts that are cleaned of large amounts of dirt are generally pre-cleaned by dipping, spraying, etc. After removing most of the dirt, the remaining dirt is ultrasonically cleaned, and the effect is good. If you clean small items and complicated shapes (parts), if you use a cleaning net or rotate the cleaning object, you can use ultrasonic radiation while vibrating, and you can get even cleaning.

Company Profile

Skymen Cleaning Equipment Shenzhen Co. Ltd., that has worked on ultrasonic cleaner for more than 13 years.Our ultrasonic products fully range from mini household ultrasonic cleaner, benchtop stainless steel small ultrasonic cleaner, and industrial large tank ultrasonic cleaner as well as Immersible ultrasonic transducer system.Our company devote to research and development, with strong engineer teams.Otherwise, we accept customer's idea and want to develop new products together.

FAQ

How about after sales services?
12 months warranty for SKYMEN ultrasonic cleaner. Any technical problem during warranty time, free replacement parts will be sent to your door. And technical support is also available after 1 year.
What are advantages of ultrasound over traditional cleaning methods?
1).minimizes the use of manual labor
2).makes cleaning and degreasing without the use of organic solvents
3).reaches every area of product and remove all types of dirt
4).shorten processes such as extraction, dispersion, purification, and chemical reactions.
5).eliminates costly mechanical and chemical cleaning of heat exchangers
Will ultrasonic cleaning damage item's parts?
Ultrasonic cleaning is considered as safe cleaning way for most parts; In some cases, it is necessary to observe carefully. The effect of thousands of implosions per second is very powerful, and the cleaning process is safe.
