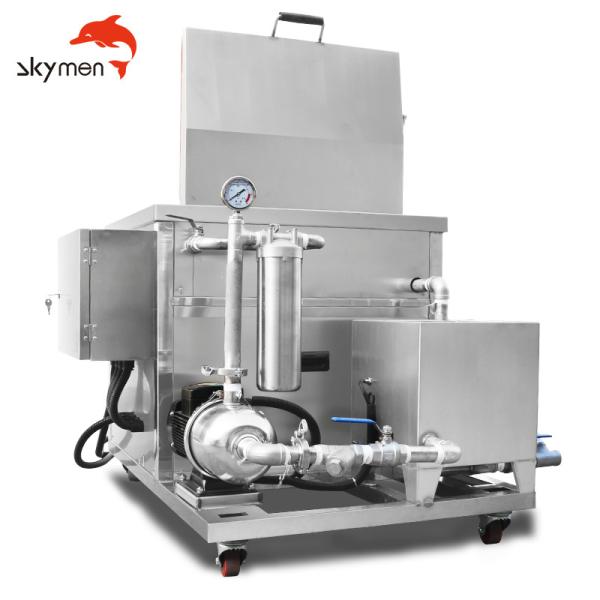

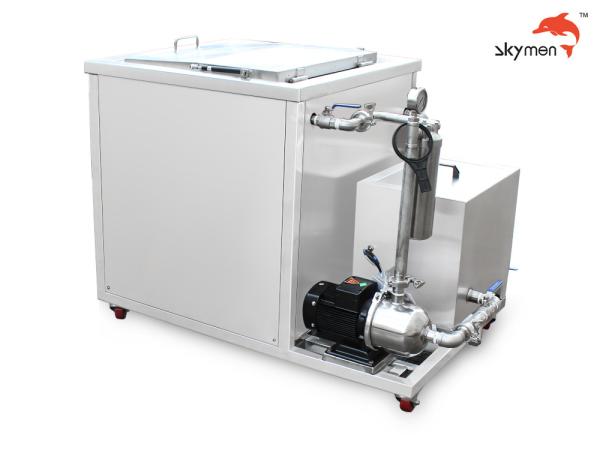

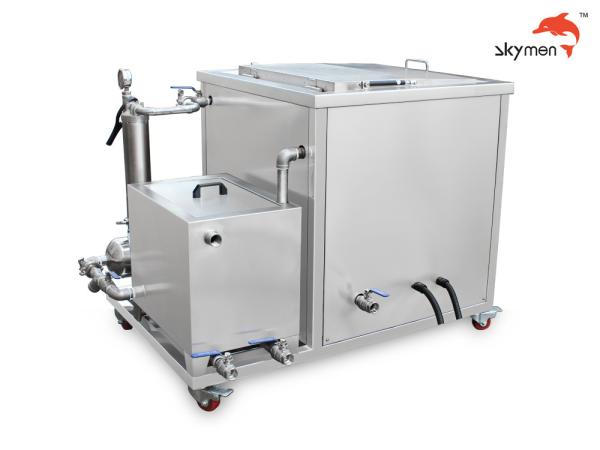

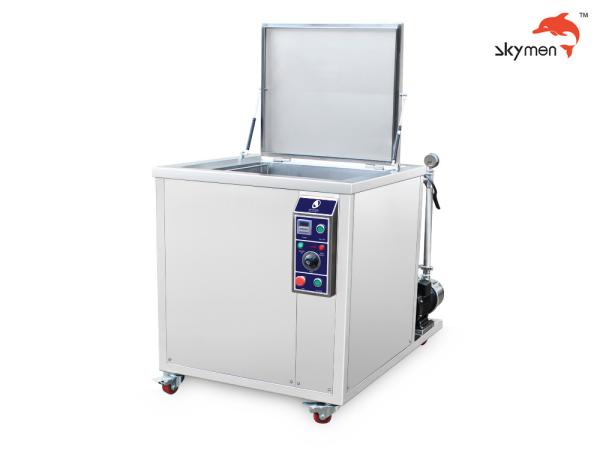

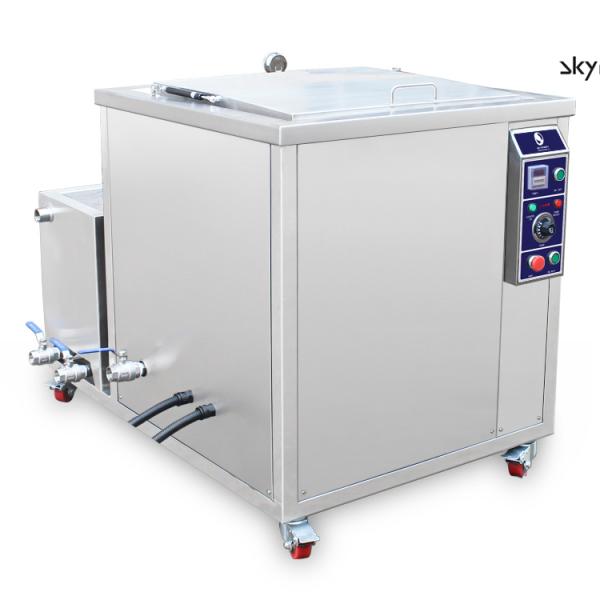

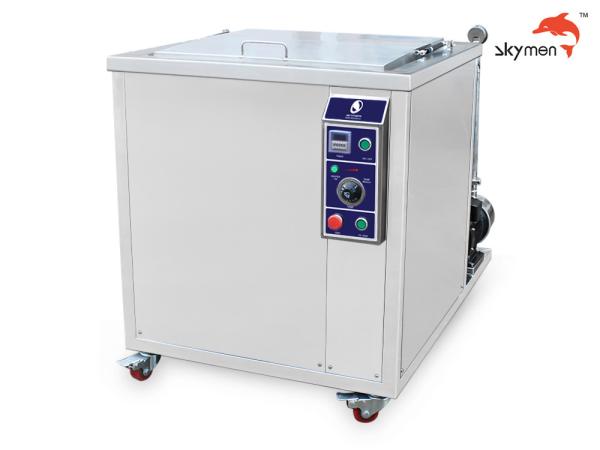

Ultrasonic diesel engines washing, diesel engines washing machine

JTS-1048

Skymen ultrasonic washing machine with strong ultrasonic power

JTS tank dimension and transducers are custom made available.

Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.

Why is Ultrasonic cleaning better?

The mechanism of ultrasonic cleaning is "cavitation" - which is a by-product of transmitting high frequency sound waves into a liquid medium. Alternating phases of rarefaction and compression during sound wave transmission into a liquid produce and collapse millions of microscopic vacuum cavities each second. The collapse or implosion of these cavities cause high powered microjets of liquid to be propelled throughout the bath removing even the enacious particles upon impact.

Advantages:

• fast, gentle, and highly efficient cleaning
• universal and compact
• easy to use, saves time and cost
• intensive dispersion and degassing
• low maintenance
• long life


Specification details:

Housing material: SUS304/SUS316L

Surface finishing: Hard-Cr plating treatment (20+microns)

Ultrasonic frequency: 28KHz / 40KHz/ 68KHz/80KHz/120KHz

Ultrasonic transducers: 48pcs

Ultrasonic power: 2400W

Electronic generator: KG2400, Ultrasonic generator work separately control transducers

power supply: AC 110V/220V or 220/240V, 1,13AMP

Features:

Adjustable ultrasonic power

Original BLT type transducer

SUS 316L stainless steel tank

Adaptable for continuous operation

Adjustable thermo controller

Adjustable ultrasonic power

With separate control ultrasonic electronic generator

sweep mode control available

digital timer & heating control

boost mode& oil skimmer upon clients requirement

pressure pump and filter system are available

Functions:

JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive good cleaning efficiency. Stainless steel basket is optional.

Specification details:

OEM & ODM are accepted.

Customer logo is welcome!

Favorable price is for distributors!

MOQ: 1 piece

Warranty time: 1 year

Certification: CE & RoHS
