Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Specifications
Certification :
CE, RoHS, FC
Packing Size :
1370*1310*1125mm
Heating Power :
12kw
Tank Size :
1000*600*600mm
Tank Capacity :
360 Liter
Material :
Stainless Steel SUS304
Price :
3500
Ultrasonic Power :
3600W
MOQ :
1
Power Supply :
AC380V, 3 phase/60Hz, AC220V, 3 phase/60Hz
Transducer :
72pcs
Generator :
2pcs
Control :
PLC
Unit Size :
1250*1220*830mm
Frequency :
28kHz/40kHz
Timer :
1-99Hours adjustable
Heater :
20°C to 95°C adjustable
Ultrasonic Transducer Box :
4pcs
Description

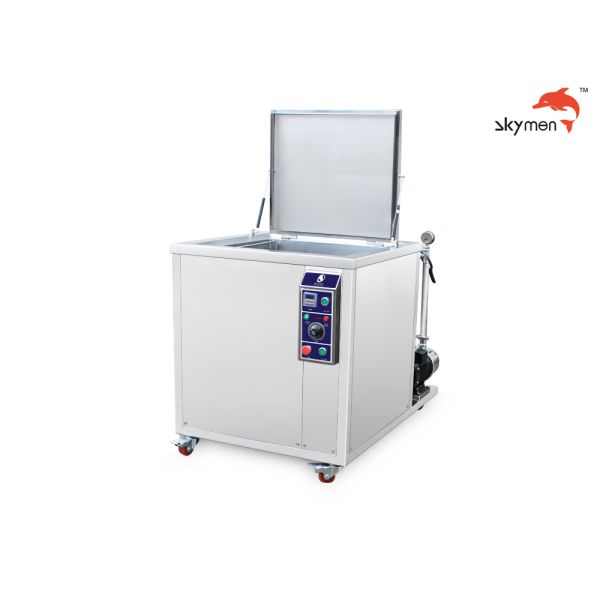

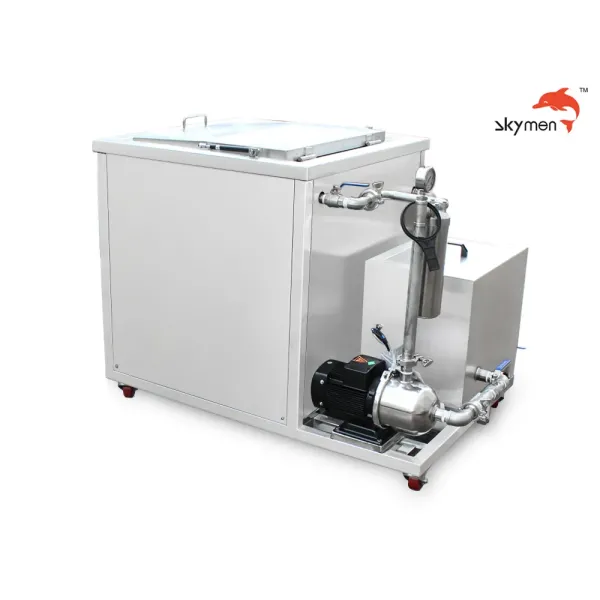

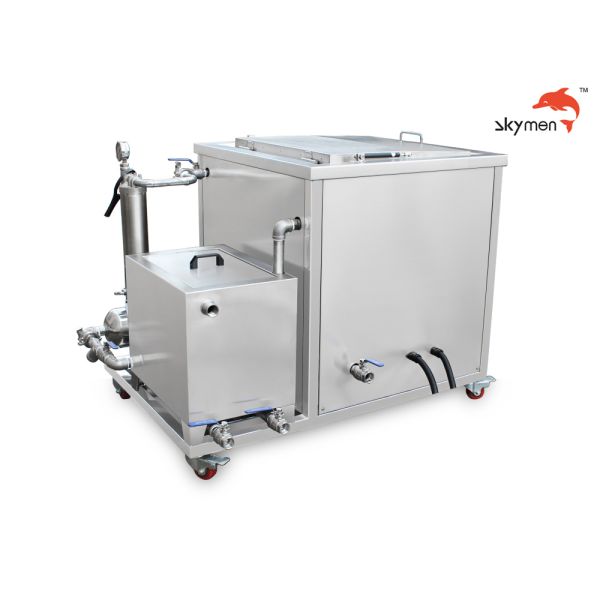

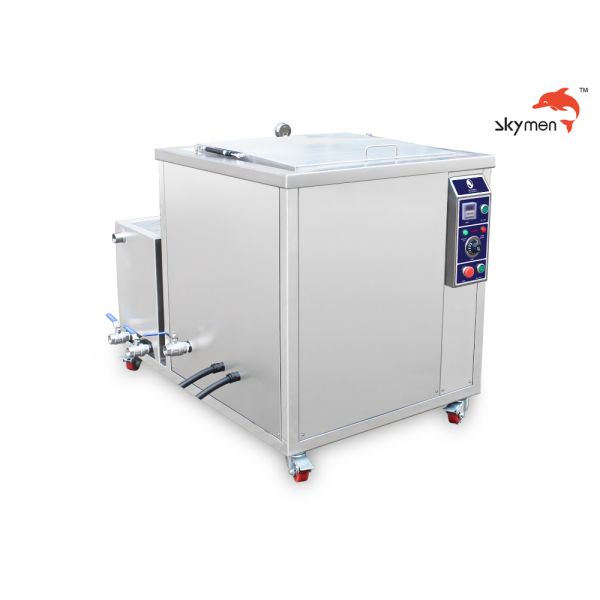

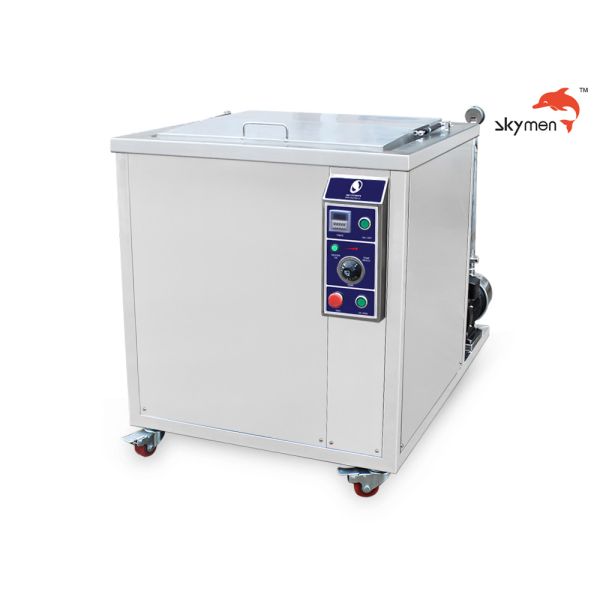

Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Skymen AUTO Spare Parts Ultrasonic Cleaner JP-720G
Professional industrial ultrasonic cleaning system designed for cylinder heads and automotive spare parts with advanced filtration capabilities.
Technical Specifications
Ultrasonic Frequency40KHz
MaterialStainless Steel SUS304
Tank Capacity360 Liter
Transducer72pcs
Timer1-99 Hours adjustable
Heater20°C to 95°C adjustable
Power SupplyAC380V, 3 phase/60Hz
AC220V, 3 phase/60Hz
Heating Power12000W
Ultrasonic Power3600W
Generator2pcs
Ultrasonic Transducer Box4pcs
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Key Features
  • Stainless steel tank construction for exceptional wear resistance and extended service life
  • 360-liter tank capacity for high-volume cleaning operations
  • Includes stainless steel basket for easy parts handling
  • Compatible with tap water, industrial alcohol, and specialized solvent cleaners
  • Industrial-grade microcontroller with flexible circuit board control for enhanced security and stability
  • Complete system includes drainage, basket, lid, and multi-directional castors for mobility
  • High-quality Korean transducer technology
  • Proprietary PCB board designed and manufactured by Skymen
  • Suitable for cleaning cast iron, steel, stainless steel, brass, and bronze materials
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
Dimensions & Packaging
Tank Size: 1000×600×600mm (L×W×H)
Unit Size: 1250×1220×830mm
Packing Size: 1370×1310×1125mm (Wooden case)
Warranty & Support
1-Year Comprehensive Warranty
During the warranty period, replacement parts are provided free of charge for any technical issues. Technical support remains available beyond the warranty period to ensure continuous operational efficiency.
Manufacturer Information

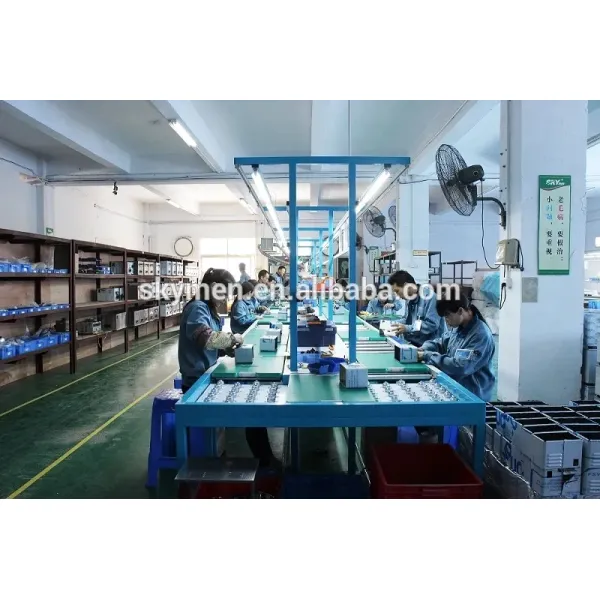

Skymen Cleaning Equipment Shenzhen Co., Ltd.
With over 10 years of specialized experience in ultrasonic cleaning technology, Skymen is a leading manufacturer offering comprehensive R&D, production, and sales services. We provide high-quality products with reliable after-sales support and can engineer custom non-standard solutions to meet specific industrial requirements.
Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System Cylinder Heads Industrial Ultrasonic Cleaner with Filtration System
