Specifications
Packaging Details :
1pcs / wooden case packing
Control system :
Microcomputer control
Brand Name :
Skymen
Tank size :
500*350*300-1200*500*800mm
Certification :
CE, RoHS, FCC
Ultrasonic power :
900-4800W
Price :
Negotiation
Spray pressure :
3/5/8KG
Delivery Time :
In Stock
Vacuum pump :
1.5-4KW
Place of Origin :
Shenzhen, China
Drying heating power :
3000-12000W
MOQ :
1 Unit/Units
Fan power :
2.2-5.5KW
Description
3-IN-1 Automatic Ultrasonic Cleaning Equipment
Product Highlights

01. Integrated 3-in-1 Cleaning Solution - Combines ultrasonic cleaning, spray washing, and vacuum drying in one machine, reducing handling time and improving production efficiency.

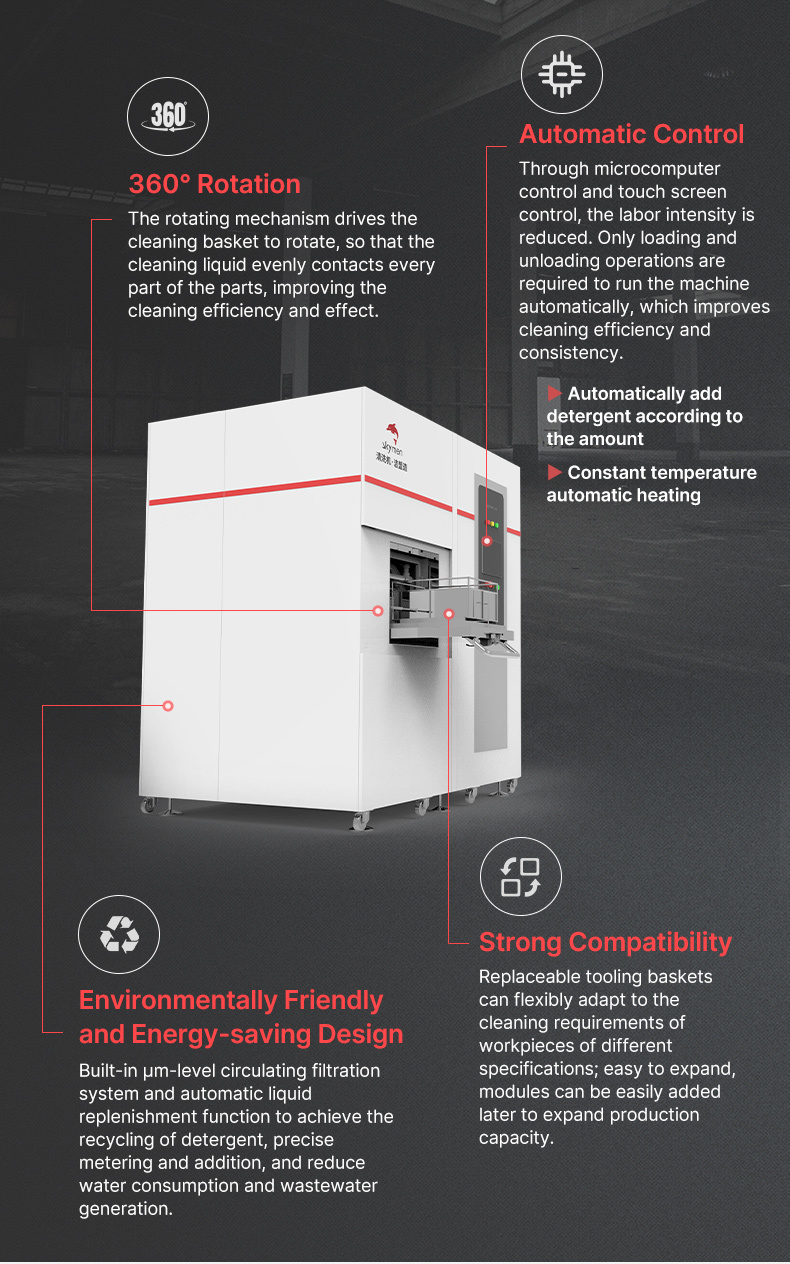

02. 360° Rotary Cleaning - The rotating basket design allows the cleaning solution to reach all surfaces, ensuring thorough cleaning of complex and irregular-shaped parts.

03. Intelligent Automatic Control - Equipped with a microcomputer control system for automatic cleaning, rinsing, and drying processes, minimizing manual operation.

04. High-Efficiency Drying Technology - Combines hot air drying, vacuum drying, and wind shearing to achieve fast and complete drying, even for parts with blind holes and deep cavities.

05. Energy-Saving and Eco-Friendly - Optimized water circulation and detergent consumption help reduce operating costs while supporting environmentally friendly production.

06. Consistent Cleaning Quality - Ultrasonic cavitation and spray cleaning work together to remove oil, grease, dust, polishing compounds, and other contaminants effectively.

07. Wide Industrial Applications - Suitable for automotive components, aerospace parts, precision machining parts, hardware tools, electronic components, and metal products.

08. Customizable Configuration - Available with customized tank sizes, ultrasonic power, drying systems, and automation functions to meet different production requirements.

Product Details

Wind Shearing Water - After the compressed air enters the air knife, it is blown out at high speed in the form of air flow sheets, quickly drying the moisture on the surface of the workpiece.

Hot Air Drying - The built-in circulation drying system heats the air and accelerates its flow to quickly evaporate moisture on the surface of objects.

Vacuum Drying - Using vacuum drying technology, the air pressure in the tank is reduced, which promotes the rapid evaporation of water and achieves efficient drying effect.

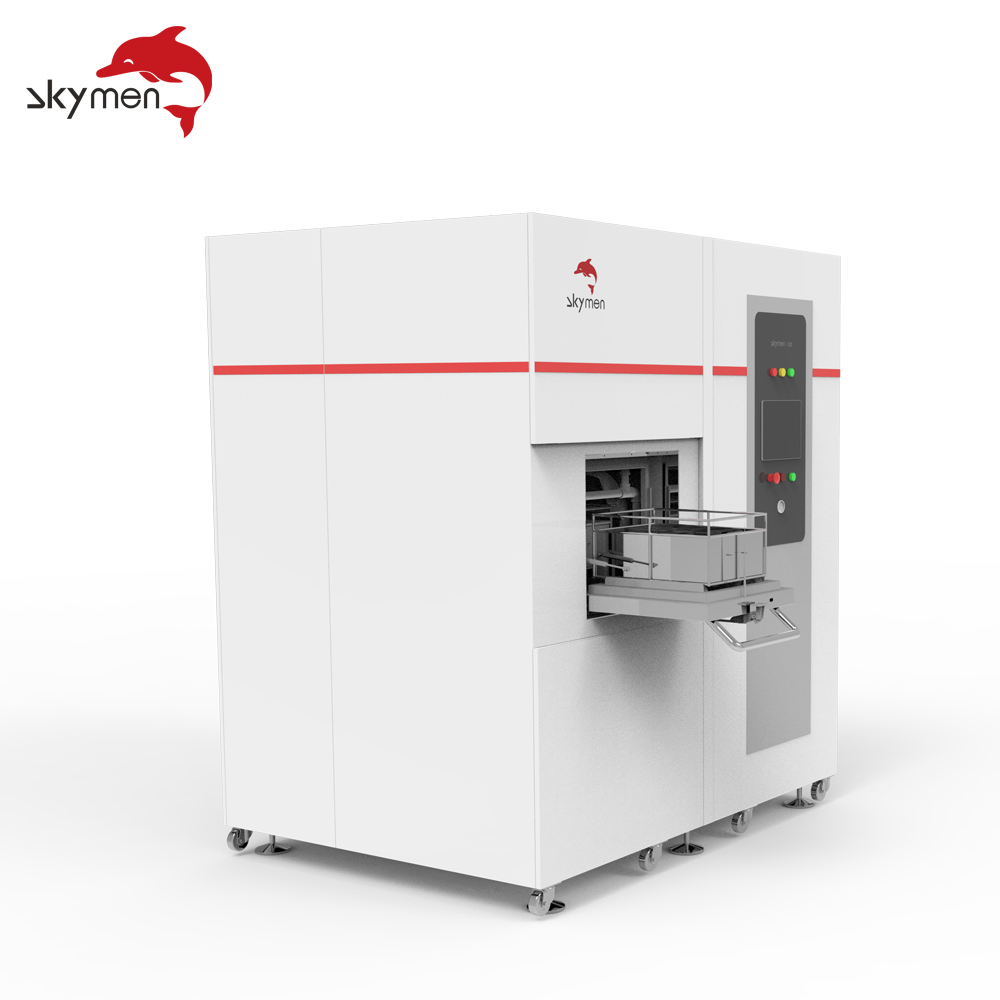

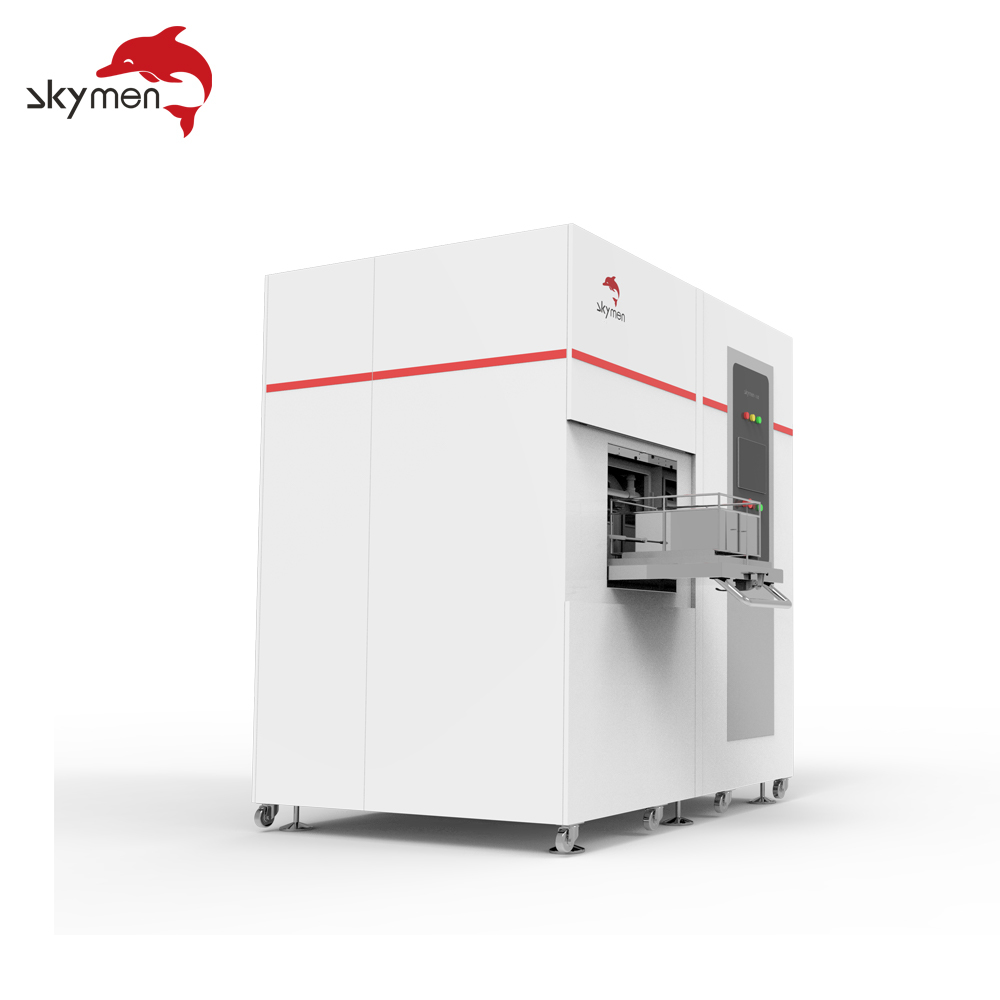

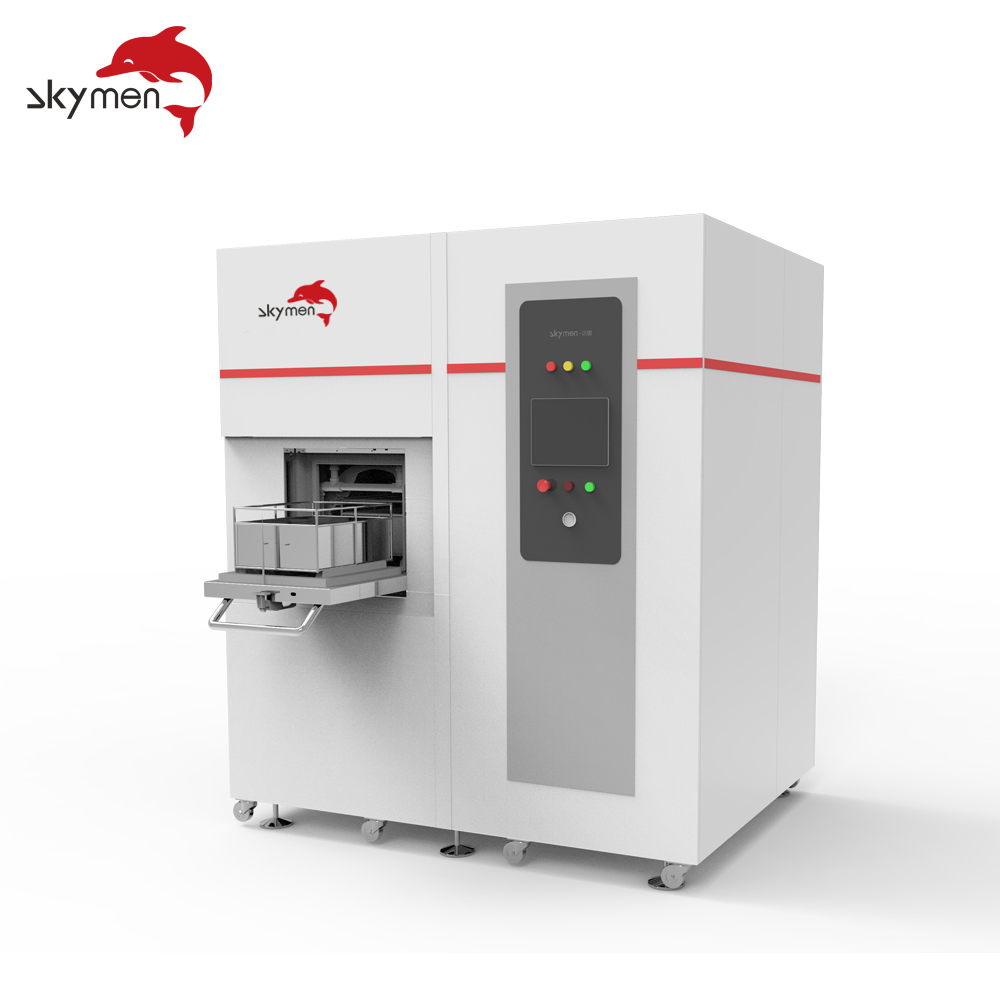

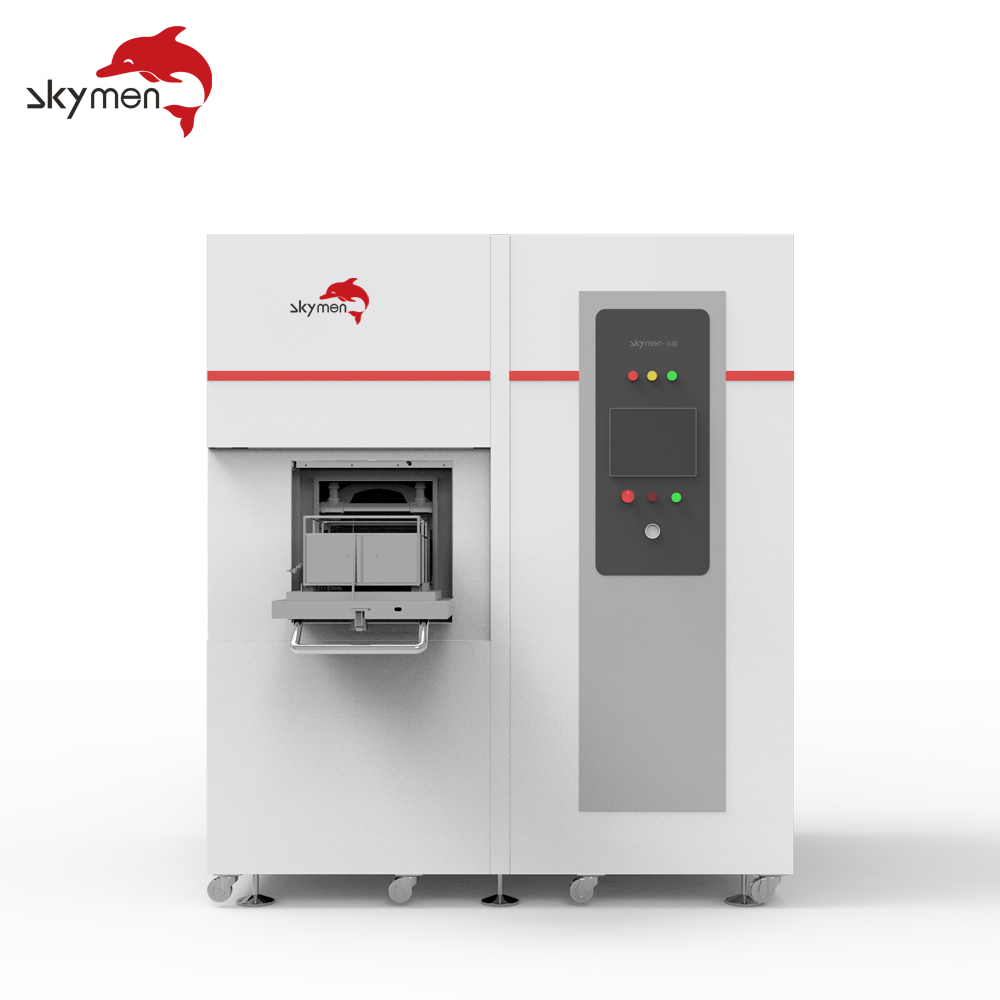

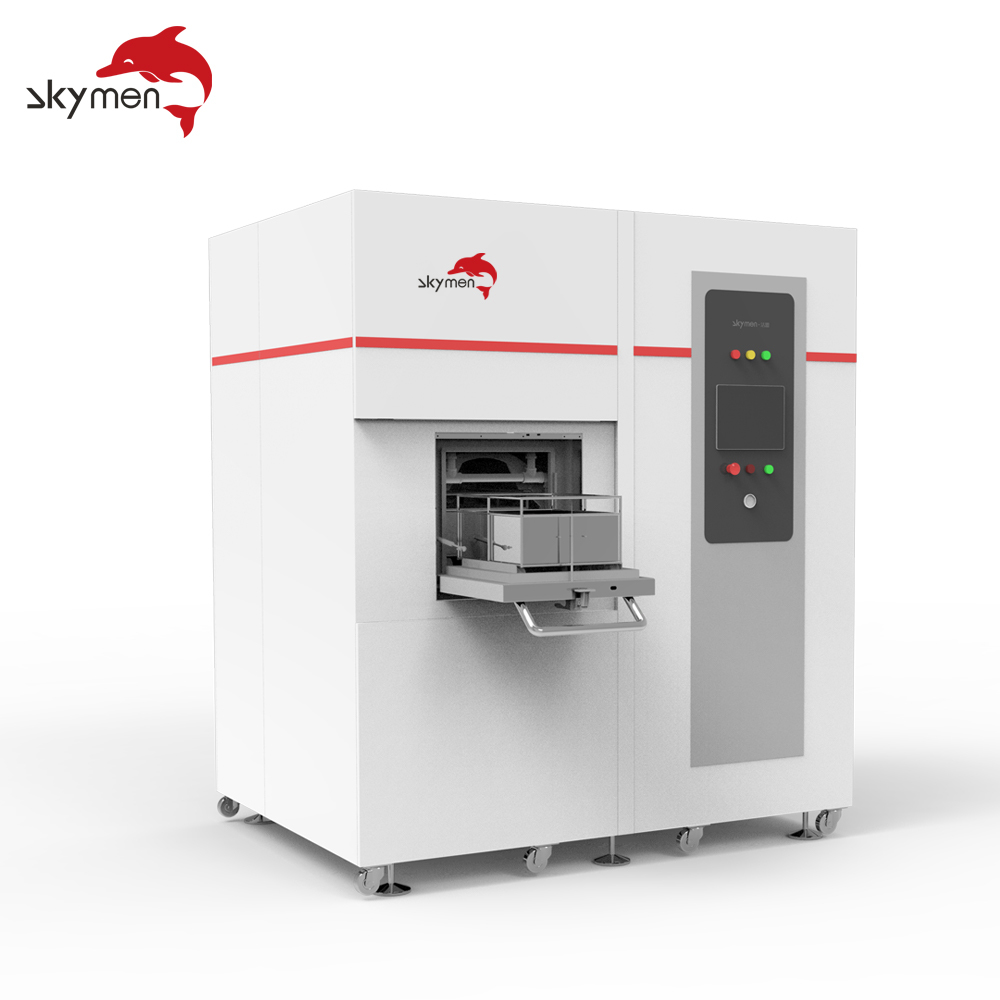

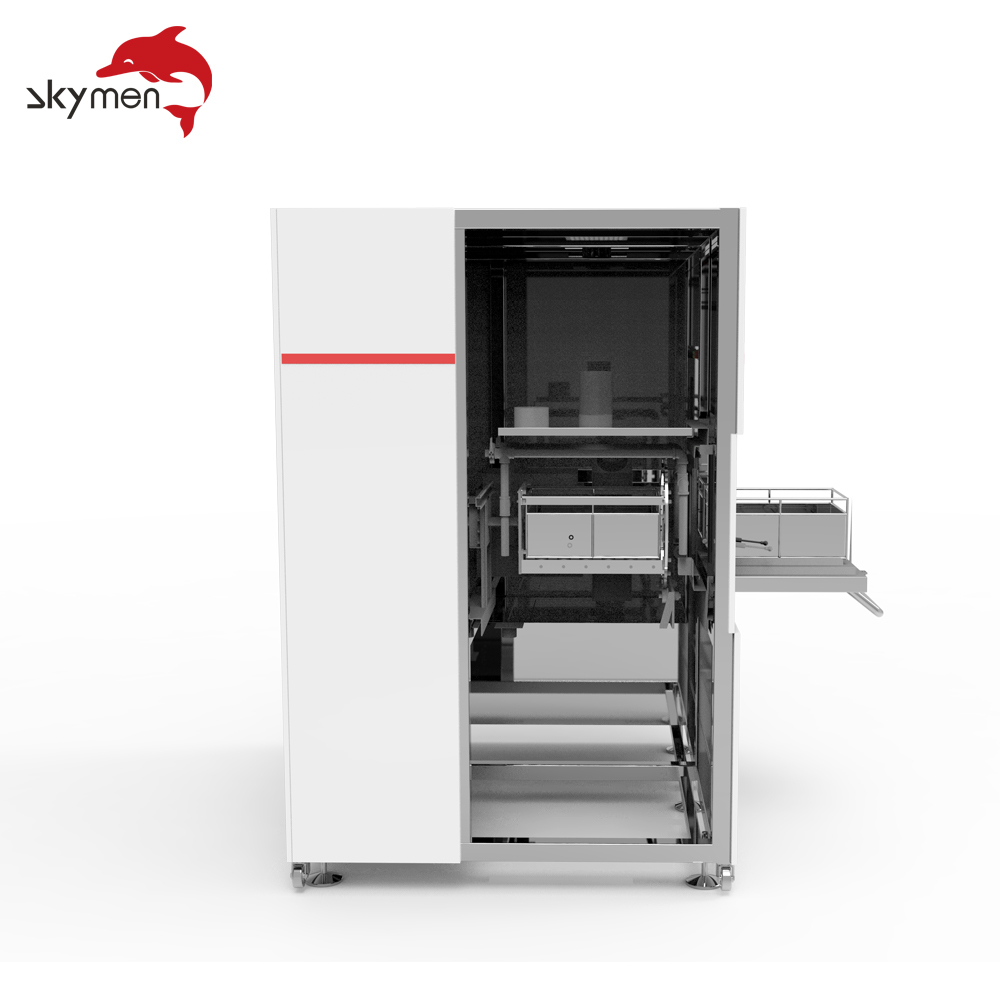

3-In-1 Automatic Ultrasonic Cleaning Machine with Vacuum Drying
Technical Paramete
Model Tank size(mm) Ultrasonic power(W) Drying heating power(W) Fan power(KW) Spray pressure(KG) Vacuum pump(KW) Control system
JMB-018PHZ 500*350*300 0-900 3000 2.2 3 1.5 Microcomputer control
JMB-030PHZ 550*450*400 0-1500 3000 2.2 3 1.5 Microcomputer control
JMB-036PHZ 600*500*450 0-1800 9000 3.7 5 2.2 Microcomputer control
JMB-048PHZ 700*500*500 0-2400 9000 3.7 5 2.2 Microcomputer control
JMB-072PHZ 1000*600*600 0-3600 12000 5.5 8 4 Microcomputer control
JMB-096PHZ 1200*500*800 0-4800 12000 5.5 8 4 Microcomputer control

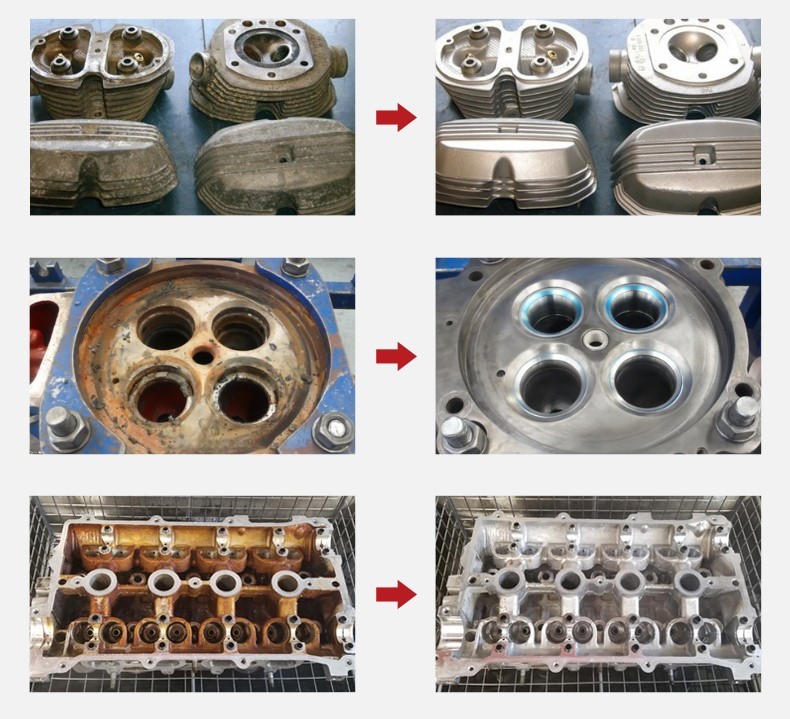

Cleaning Effect
3-In-1 Automatic Ultrasonic Cleaning Machine with Vacuum Drying
Company Profile

Founded in 2007, Skymen is a National High-Tech Enterprise in research and development, engineering, manufacturing, and sales of industrial cleaning systems. Our technology covers ultrasonic cleaning, megasonic cleaning, vacuum hydrocarbon cleaning, high-pressure spray cleaning, wet cleaning, and plasma surface treatment. With more than 18 years of experience, over 350 skilled employees, and a 35,000 square meters modern production facility, we provide both standardized equipment and customized cleaning solutions for manufacturing industries with demanding cleanliness and process consistency requirements.
