Specifications
Model Number :
JTS-11920
Tank Size (m) :
4.2*1.9*2.3
MOQ :
1 Unit/Units
Heating Power (KW) :
135
Delivery Time :
In Stock
Price :
Negotiation
Out Door Use :
YES
Certification :
RoHS, CE, FCC, SGS
Capacity ( L) :
18354
Brand Name :
Skymen
Model :
JTS-11920
Place of Origin :
China
Ultrasonic Power (KW) :
96
Description

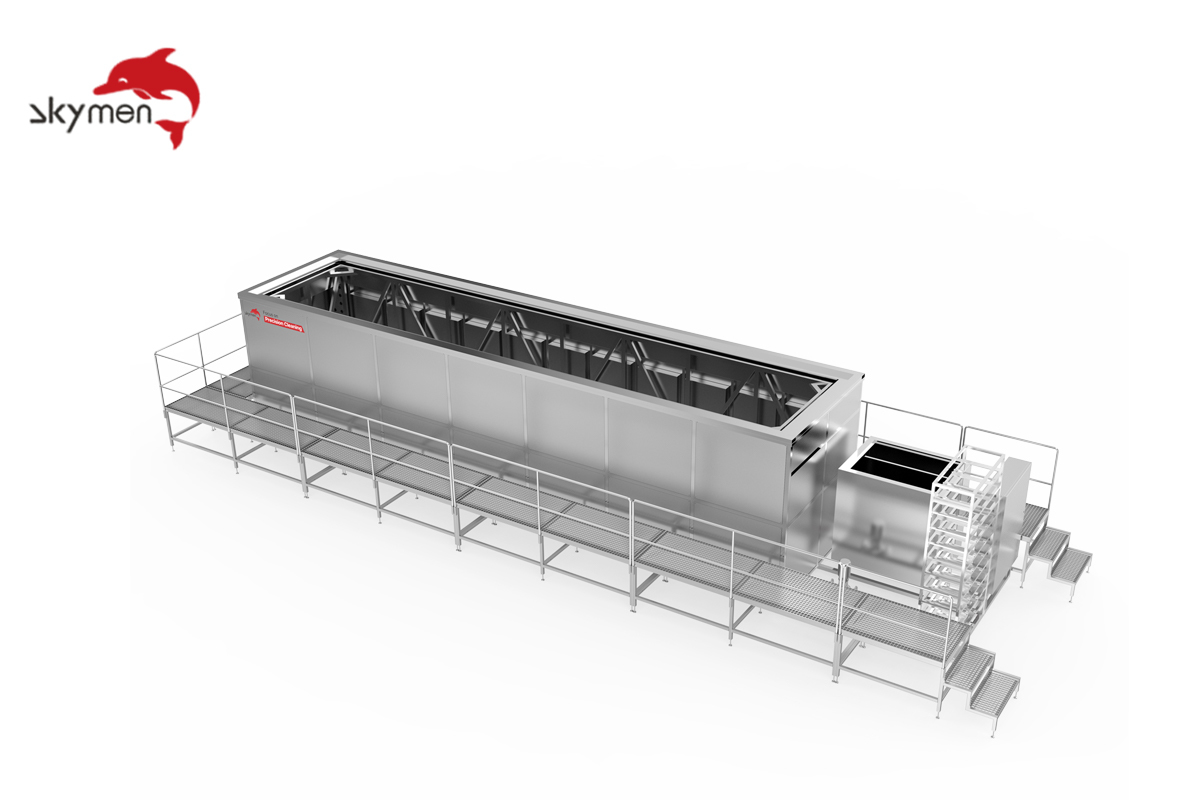

Heat Exchanger Ultrasonic Cleaning Machine
Product Overview

The Skymen Heat Exchanger Ultrasonic Cleaning Machine is engineered for cleaning large industrial heat exchangers, tube bundles, condensers, radiators, and other oversized components. Utilizing advanced ultrasonic cavitation technology, the system effectively removes scale, rust, oil, grease, sludge, and other stubborn contaminants from internal passages, tubes, and complex structures that are difficult to clean using conventional methods.

Compared with hydroblasting, chemical soaking, or manual cleaning processes, ultrasonic cleaning provides deeper penetration, more uniform cleaning results, lower labor requirements, shorter cleaning cycles, and reduced wastewater generation. This solution is ideal for industries requiring efficient maintenance and restoration of heat transfer equipment.

Key Advantages
  • Efficiently removes scale, rust, oil, sludge, and other contaminants
  • Cleans internal tubes, channels, and hard-to-reach areas
  • Reduces labor costs and cleaning time
  • Minimizes equipment downtime during maintenance
  • Generates less wastewater compared with hydroblasting
  • Non-abrasive cleaning process that protects workpiece surfaces
  • Suitable for large and heavy industrial components
  • Customizable design for various industrial applications
  • Improves heat transfer efficiency after cleaning
  • Extends equipment service life and maintenance intervals
Technical Parameter
Model Tank Size Capacity Ultrasonic Power Heating Power Out Door Use
JTS-11920 4.2*1.9*2.3m 18354L 96KW 135KW YES
JTS-12560 5.7*1.9*2.3m 24909L 128KW 180KW YES
JTS-13200 7.1*1.9*2.3m 31027L 160KW 225KW YES
JTS-13840 8.5*1.9*2.3m 37145L 192KW 270KW YES
JTS-14480 10*1.9*2.3m 43700L 224KW 315KW YES
JTS-12560W 4.2*2.5*2.3m 24150L 128KW 162KW YES
JTS-13200W 5.7*2.5*2.3m 32775L 160KW 189KW YES
JTS-14160W 7.1*2.5*2.3m 40825L 208KW 270KW YES
JTS-14800W 8.5*2.5*2.3m 48875L 240KW 324KW YES
JTS-15440W 10*2.5*2.3m 57500L 272KW 378KW YES
Customization Services

Skymen provides complete customized ultrasonic cleaning solutions based on workpiece dimensions, contamination types, production requirements, and automation needs. Our engineering team can design and manufacture systems with capacities up to 57,500L, ensuring the most suitable cleaning solution for your application.
